AutoCAD Stretch

Introduction to AutoCAD Stretch

AutoCAD is computer-aided design software used by the graphics professional to make 2d drawing and 3d models of different types of architectural, mechanical, and other works. Auto CAD has a bunch of commands for making its work easy. Stretch is one of those commands. We can use the Stretch command for stretching any particular section of any 2d shape of drawing in Auto CAD software. Here in this article, we will understand Stretch’s command through a 2d shape of this software, and we will also understand the technique of using this command so that there will be no problem occurs for us during our working in this software. So let us start our discussion.

How to use Stretch in AutoCAD?

We can use the Stretch command in this software, making our work easy and also for saving our time of working. We will understand it through a few steps of learning, but before this, let us look at the user interface of this software to better understand this topic throughout this article.

Start Your Free Design Course

3D animation, modelling, simulation, game development & others

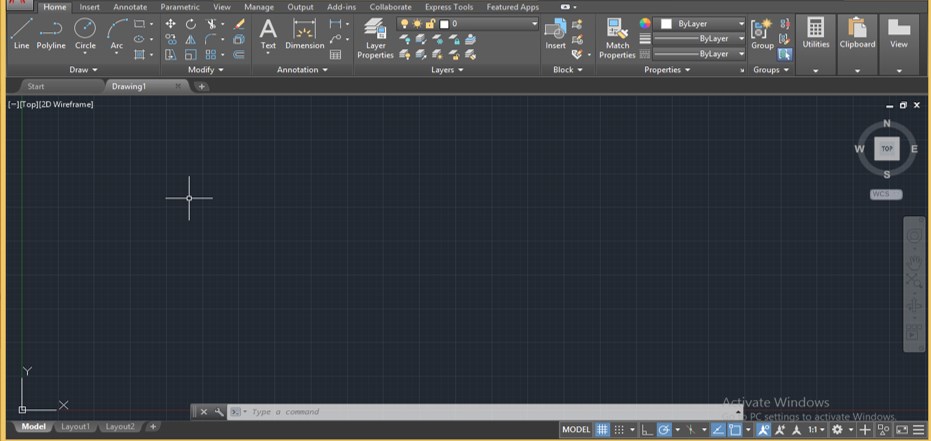

Step 1: At the top of this software there are some tabs which have a different type of command and handling parameters for managing and making drawing in AutoCAD software, below this, there is working windows in which we can see our drawn object, at the right side of this window we have a direction indicator cum viewport cube through which you can manage views of your drawing these views may be a top view, front view, left view, below this window at the bottom of this software we have some navigation tab for handling the working window of this software.

working windows

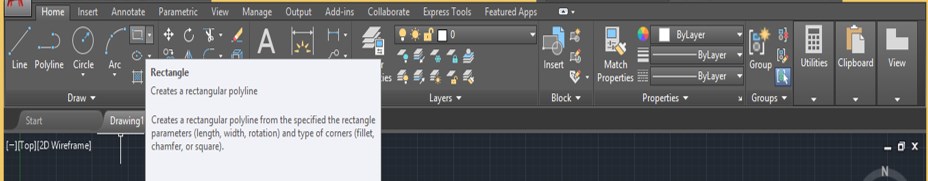

Step 2: Let us have a Rectangle command for our learning. For rectangle command, go to commands of the Draw menu of Home tab and click on the Rectangle command icon with a mouse button.

Rectangle command

Step 3: Now, draw a rectangle by specifying the first point and dragging it to your desired length with the mouse cursor, or you can enter your desired value in the value enter the box with the help of keyboard buttons then press Enter button of the keyboard for applying the parameters of this rectangle shape.

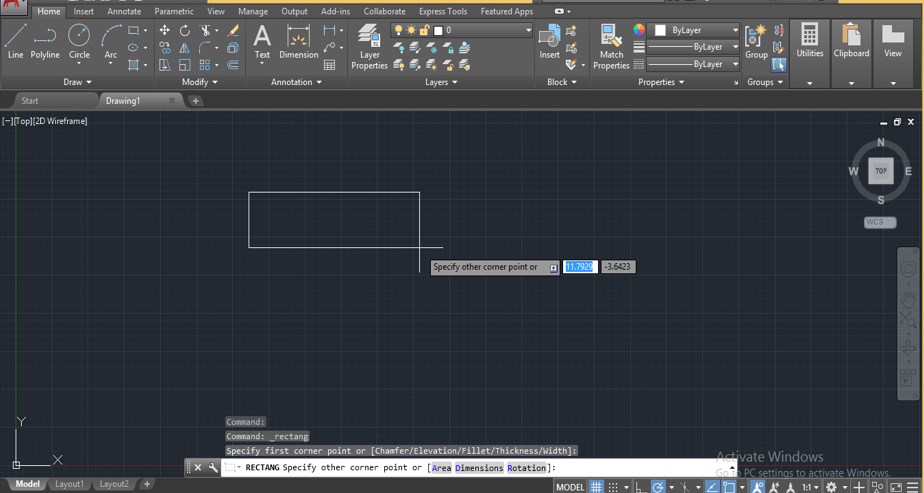

rectangle shape

Step 4: Now, let us move to the Stretch command of this software. You can take it from the Modify menu of the Home tab by clicking on the stretch command icon.

Popular Course in this category
Sale
AutoCAD Training (6 Courses, 17 Projects)6 Online Courses | 17 Hands-on Project | 52+ Hours | Verifiable Certificate of Completion | Lifetime Access
4.5 (4,415 ratings)
Course Price

View Course

Related Courses
After Effects Training (1 Courses, 3+ Projects)All in One Design Bundle (280+ Courses, 100+ projects)

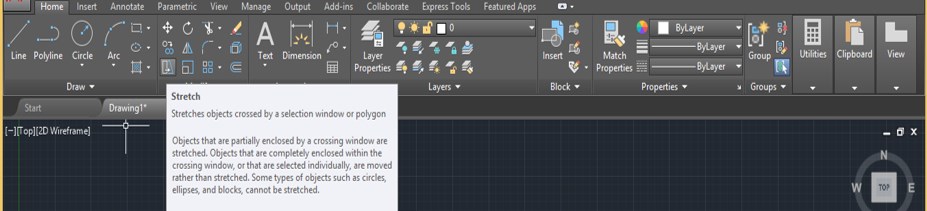

Stretch command

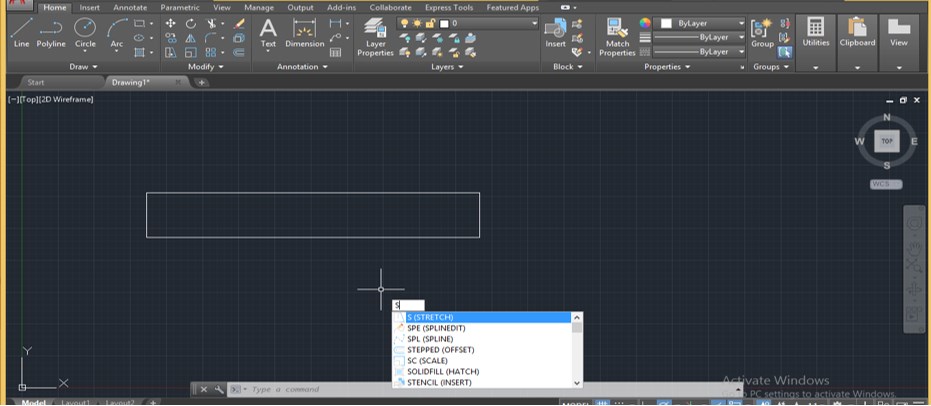

Step 5: Or you can simply press the ‘S’ button from the keyboard then press Enter for having activated the Stretch command.

‘S’ button

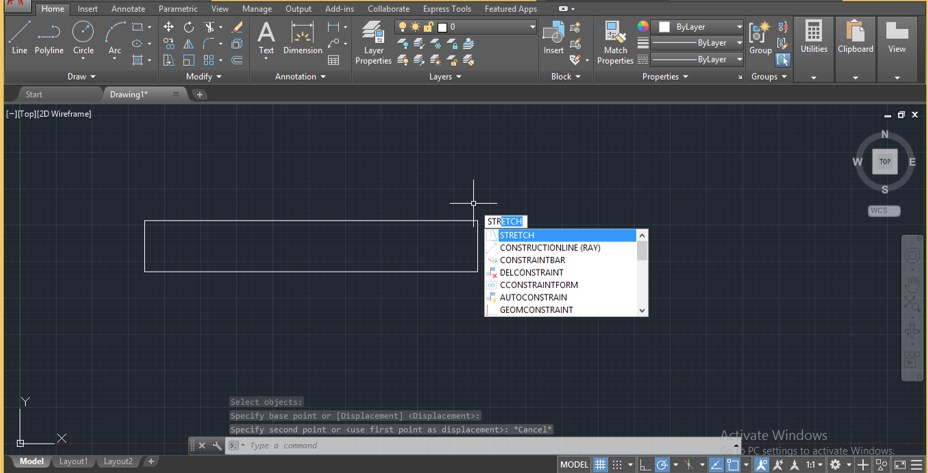

Step 6: Or you can type ‘STR’ from the keyboard and choose the Stretch command from the opened drop-down list of commands.

STR

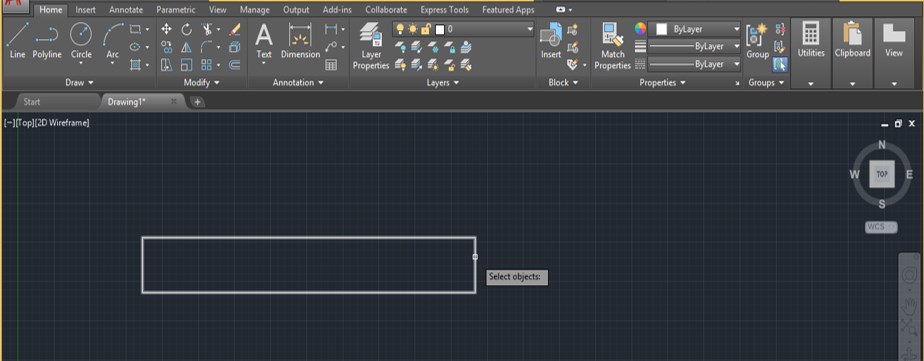

Step 7: Now, this command will ask you to select an object, so select an object by click on that object with a square shape mouse cursor.

square shape mouse

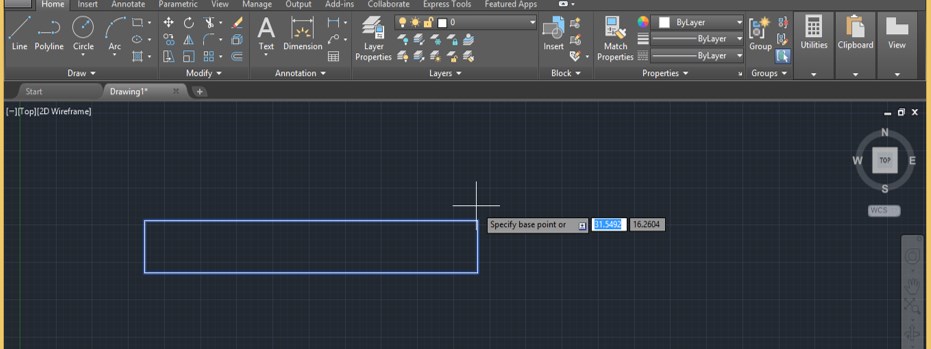

Step 8: Now, it will ask you to specify the point around which you want to stretch. Choose that point; this point may be inside the object or outside the object according to your choice.

object or outside

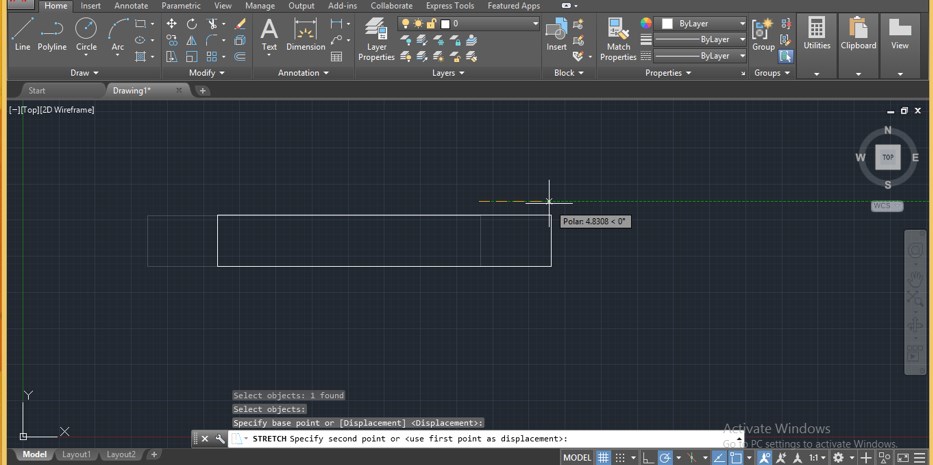

Step 9: Now, when you stretch your object, it will not stretch; it will move only like this because the selection of an object with the stretch command is something different from other commands. So it is necessary that you should know the proper technique of selecting an object for using the stretch command on any object. So let us discuss that technique.

technique

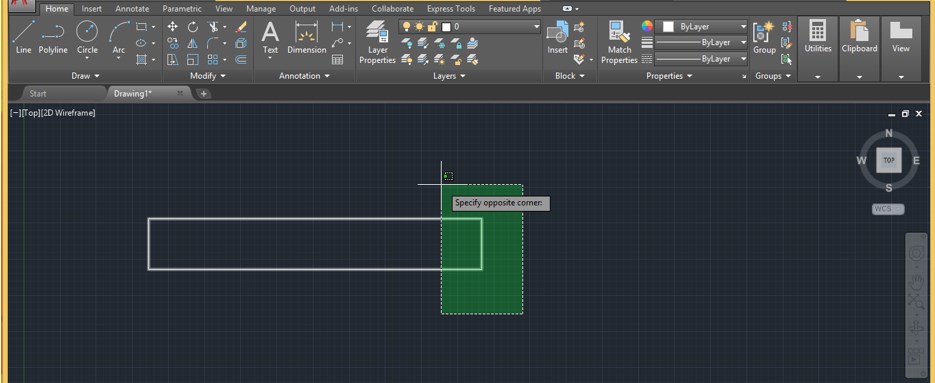

Step 10: Take the Stretch command by pressing the ‘S’ button of the keyboard, then press the ‘Enter’ button of the keyboard. Now use a square selection box to select that section of the object you want to stretch with the Stretch command. Make sure you drag the selection square box from bottom to top direction like this. Now press the ‘Enter’ button from the keyboard after selecting an object.

selecting an object

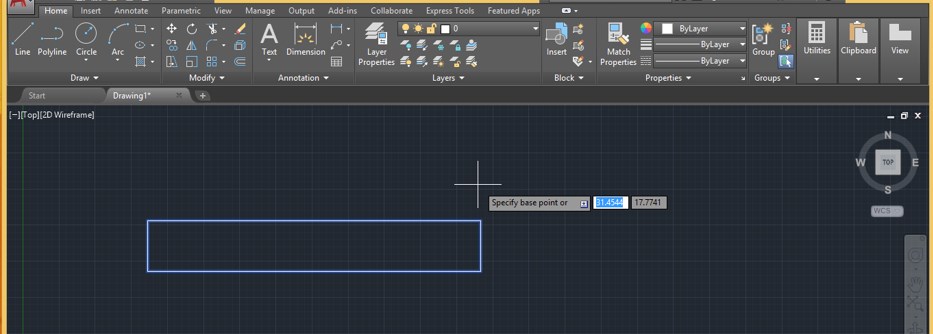

Step 11: Now specify the point around which you want to stretch the section of your object. You can choose any point inside or outside of the object or give any value for that point through keyboard entry.

AutoCAD Stretch - 11

Step 12: Now drag the sections in which direction you want to stretch them. You can stretch it in the outward direction of a selected object like this.

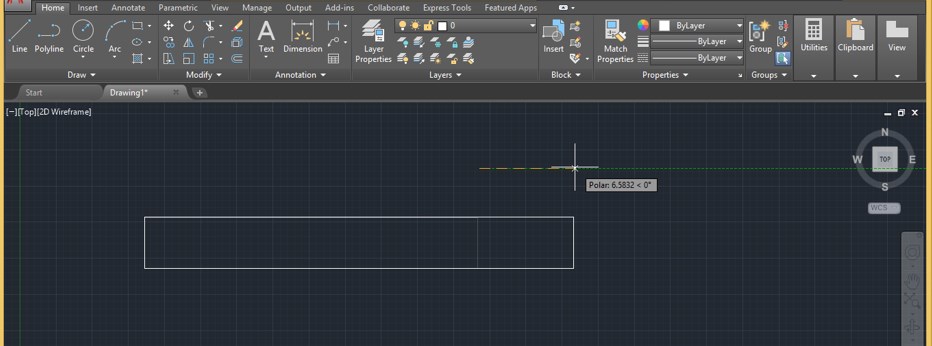

AutoCAD Stretch - 12

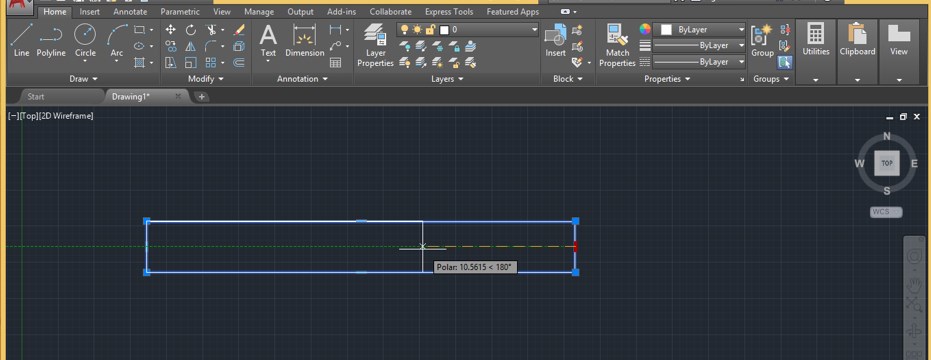

Step 13: Or inward directions of a selected object like this by dragging the mouse cursor in that direction.

AutoCAD Stretch - 13

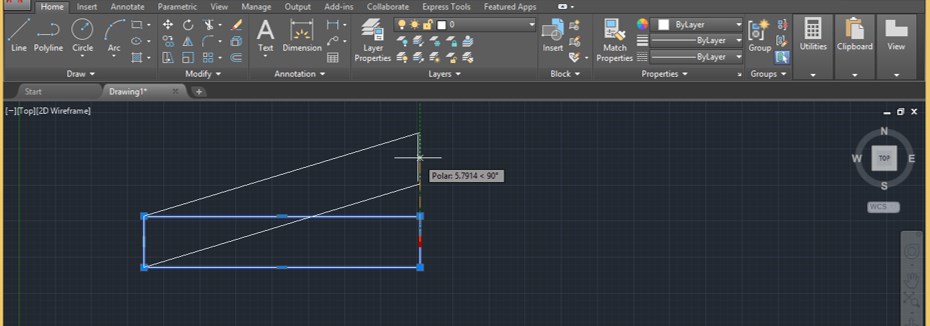

Step 14: You can also stretch this particular section at any particular angle like this, or you can enter the value of that angle through a keyboard entry in which you want to incline it.

AutoCAD Stretch - 14

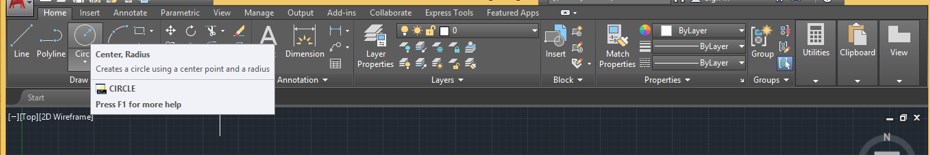

Step 15: Now, let us see ‘can we use the stretch command on the circle?’ For this, let us take a Circle command from the commands list of the Draw menu of the Home tab of this software by clicking on the icon of circle command.

AutoCAD Stretch - 15

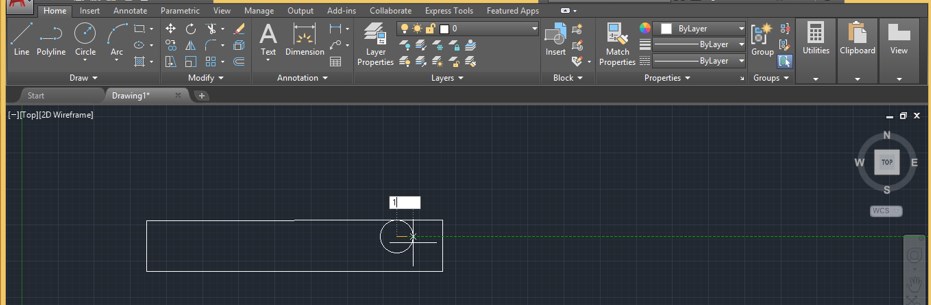

Step 16: Now, draw a circle like this of any radius.

AutoCAD Stretch - 16

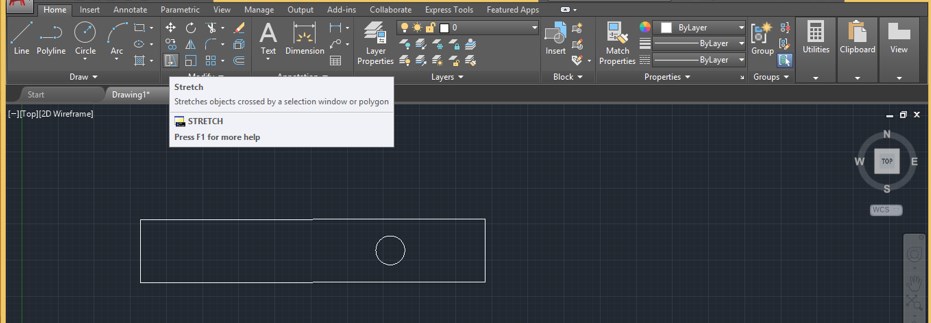

Step 17: Now again, take the Stretch command from modifying the menu of the Home tab or press the ‘S’ button, then Enter button from the keyboard.

AutoCAD Stretch - 17

Step 18: Now select this circle with this stretch command by using a square selection box and press the Enter button from the keyboard.

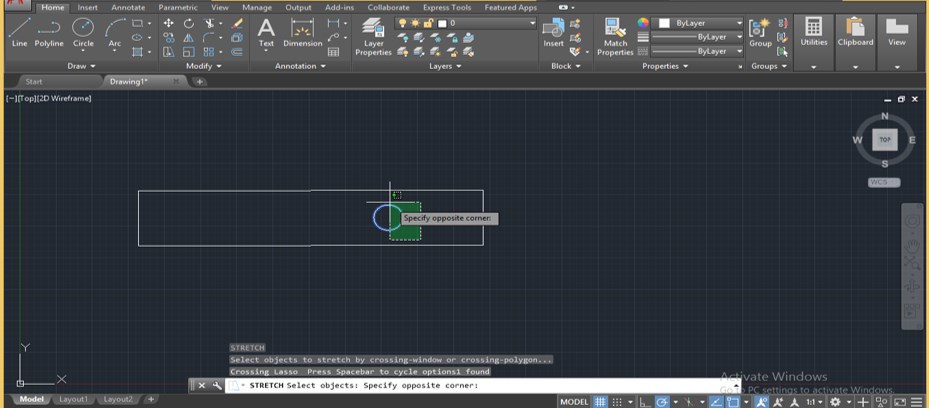

AutoCAD Stretch - 18

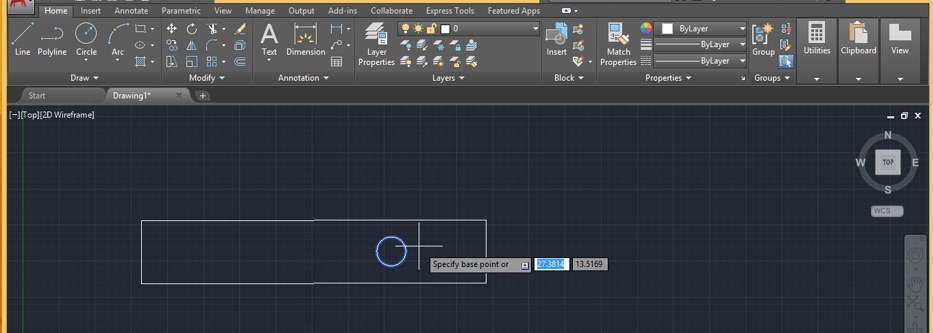

Step 19: Now specify the point around which you want to stretch this circle. You can take any point or input value of that point through keyboard entry inside or outside this circle.

AutoCAD Stretch - 19

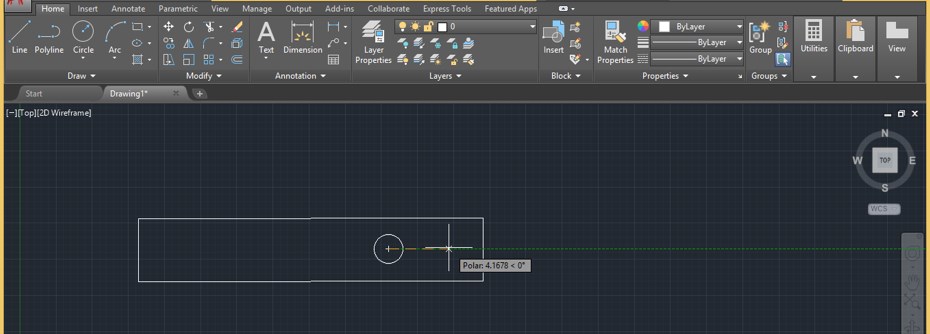

Step 20: Now, when you move the mouse cursor to stretch this circle, it will only move like this. So this command will not work on the circle shape.

AutoCAD Stretch - 20

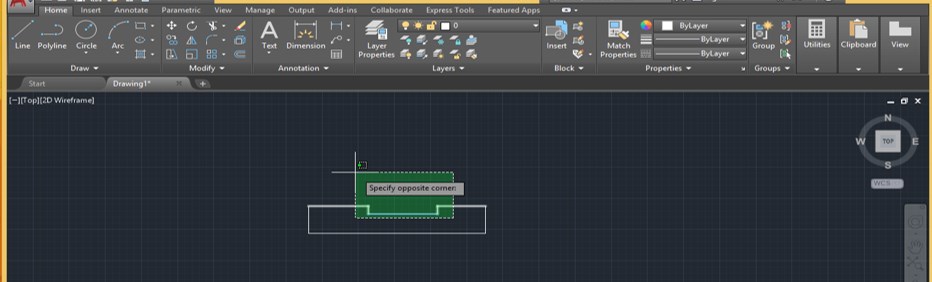

Step 21: You can stretch only the same section of any 2d shape. For stretching only the same section, again take stretch command by pressing the ‘S’ and Enter button of the keyboard, then select that section which you want to stretch by square selection box like this and press Enter button from keyboard.

AutoCAD Stretch - 21

Step 22: Now drag the mouse cursor in which direction you want to stretch it like this.

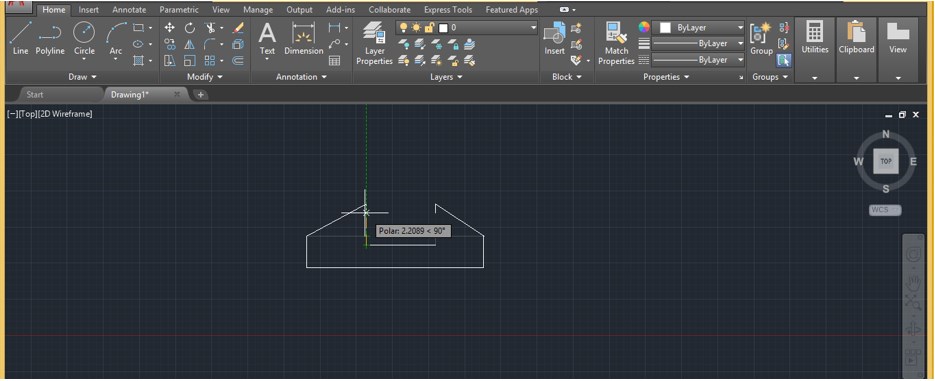

AutoCAD Stretch - 22

Conclusion – AutoCAD Stretch

In this way, you can use the Stretch command in AutoCAD software and make a professional drawing by using it. You can also save your time with this exciting command of Auto CAD. Now, after this article, you can understand ‘what is Stretch command in the context of AutoCAD software?’ and ‘how you can use it for editing any 2d shape design?’ You can have a good command of the Stretch feature of AutoCAD software once you start practicing with this command on the drawing project of AutoCAD Software.
