Mask in After Effects

Home » Design » Design Tutorials » After Effects Tutorial » Mask in After Effects

mask in after effects

Masking Image in After Effects

Mask in After Effects is an outline or a path to modify the properties of the layers, we can mask with text, pictures, videos, and vectors images. There are three types of maskings, Tracking, merge paths, and traditional masking functions. Masking plays a key role in the video production industry because after the shoot they may need to remove something from the video so in such case they prefer only masking. Most of the title animation is also done with text masking

You may think mask is easily available in photoshop, premier, etc why we need to use after effects…. come let us see.

Start Your Free Design Course

3D animation, modelling, simulation, game development & others

Creating Mask in After Effects

There are many ways for masking images in After Effects, let’s look at a few essential steps below.

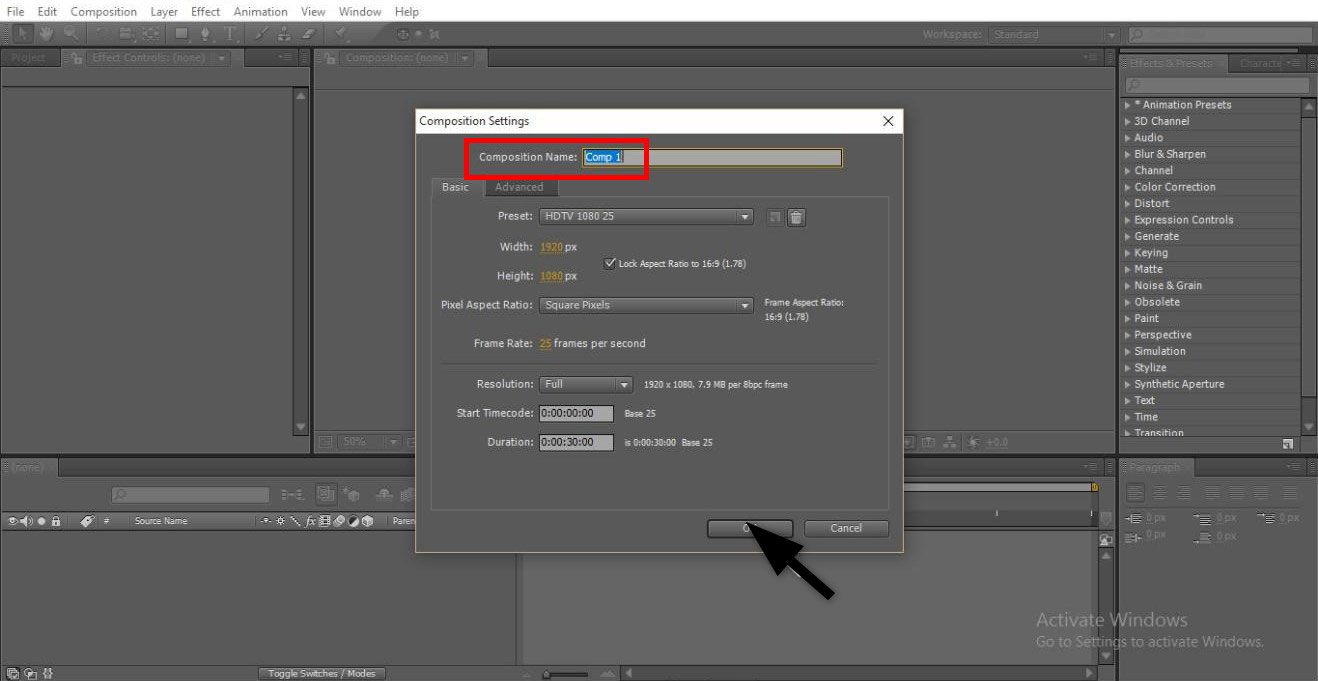

Step 1: Start a New composition.

new composition

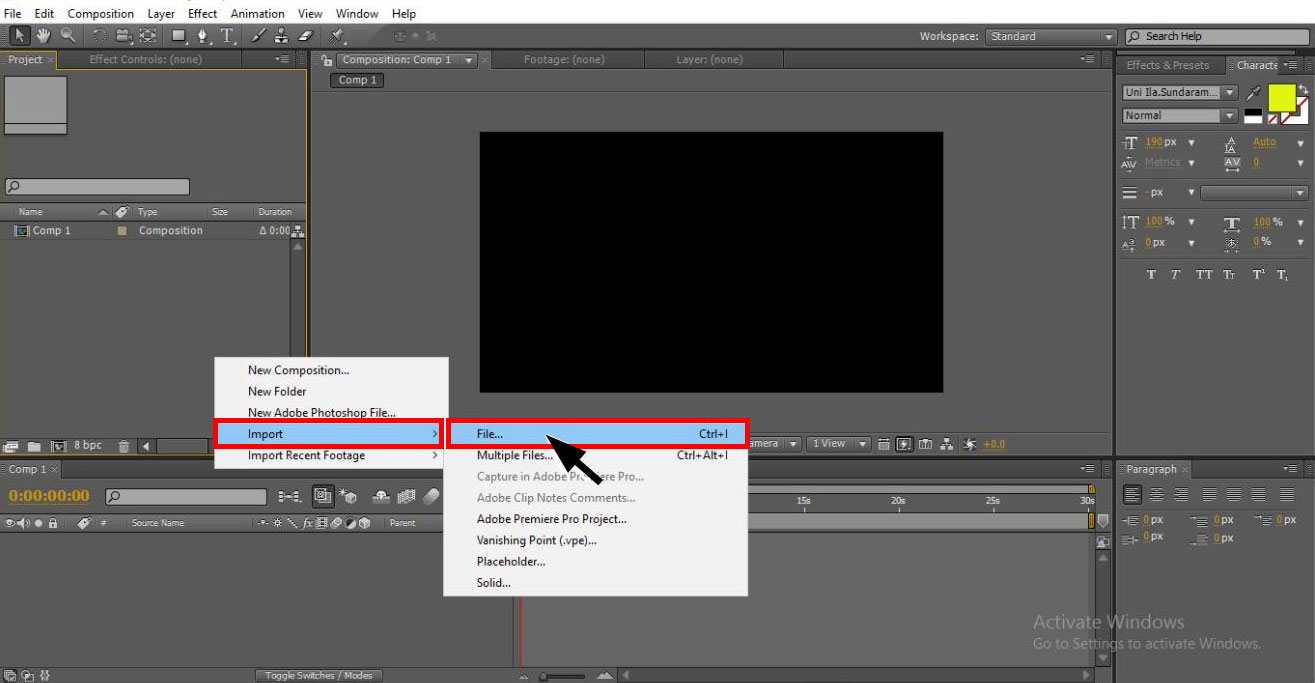

Step 2: Import the footage to file.

importing footage

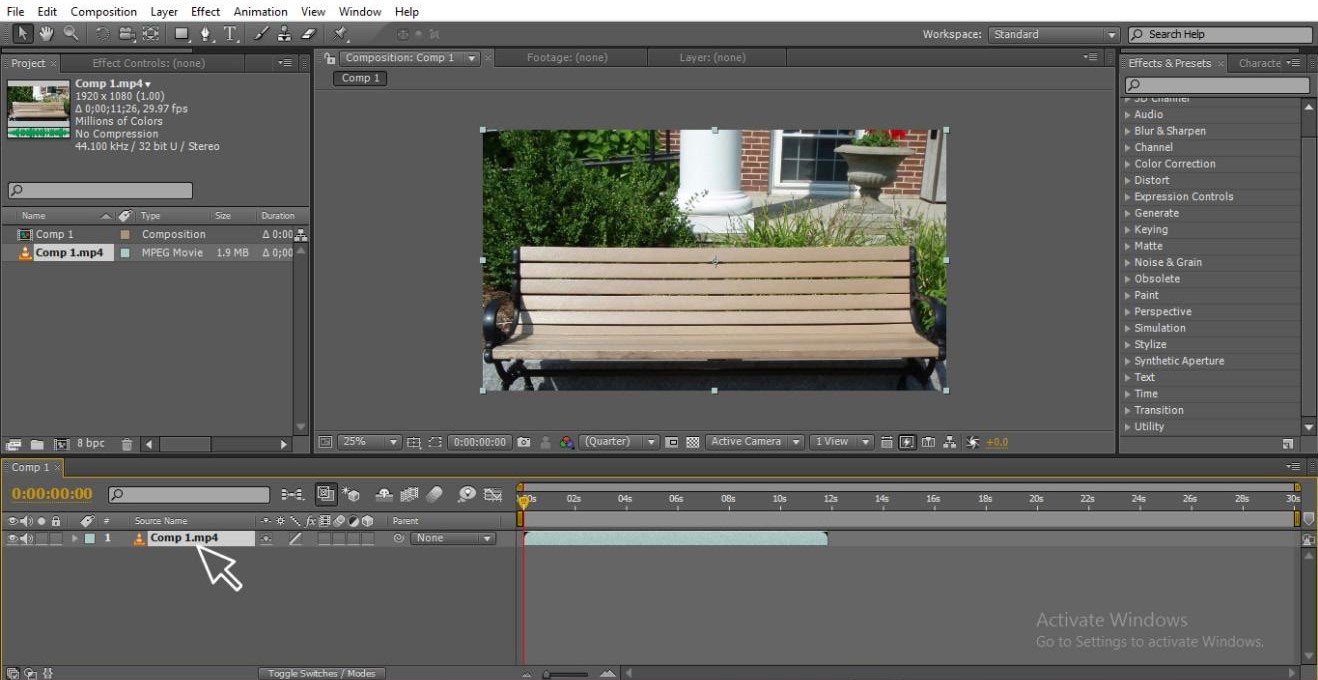

Step 3: Import the footage to timeline, always import a simple objected footage when you are in the learning process.

simple objected footage

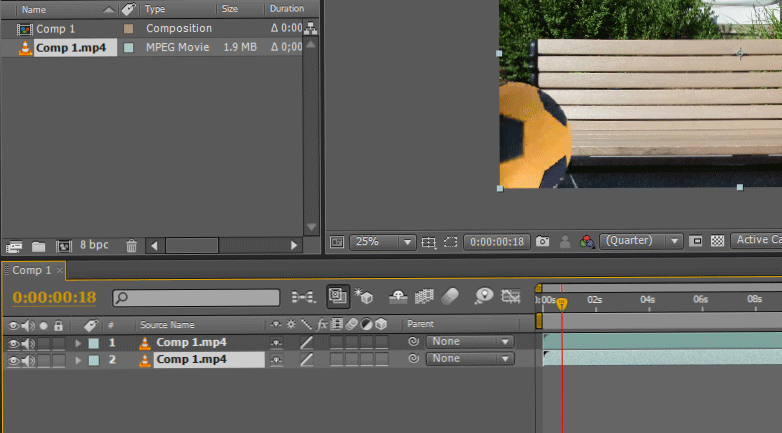

Step 4: Now, we need to create duplicate footage or we need to import relevant footage for masking.

duplicate footage

Step 5: Here I import a video.

import a video (mask in after effects)

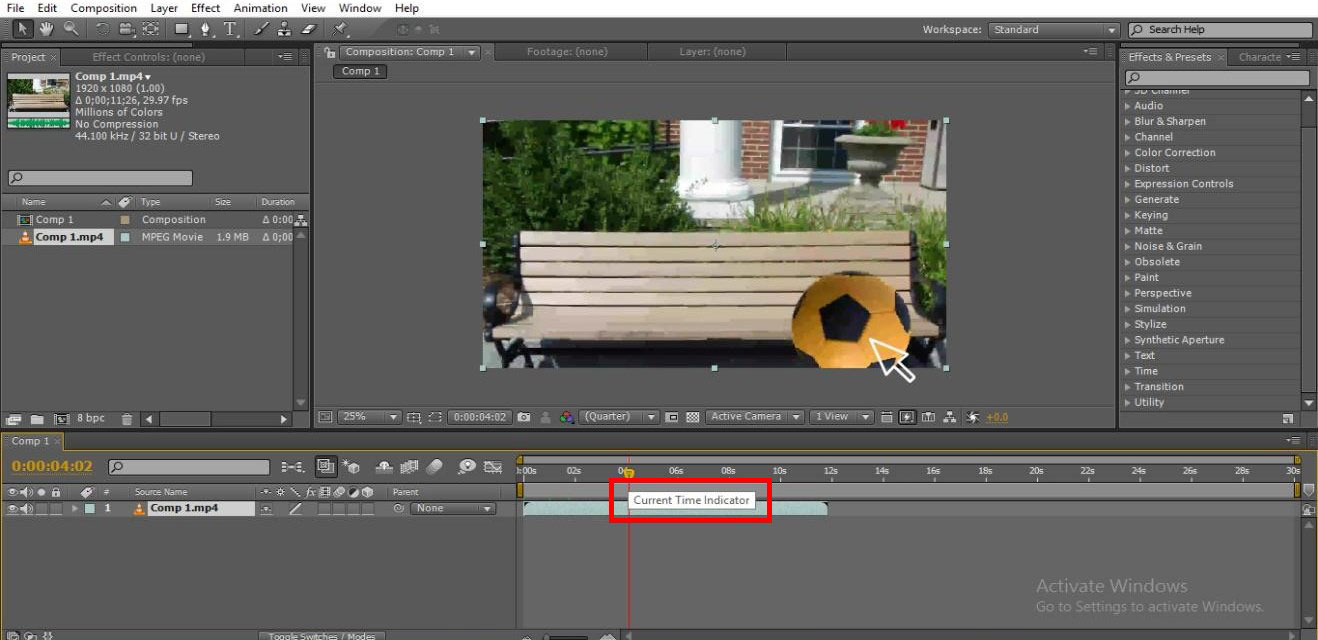

Step 6: Here a ball traveling from one side to another indicates time.

Popular Course in this category
After Effects Training (1 Courses, 3+ Projects)1 Online Courses | 3 Hands-on Projects | 20+ Hours | Verifiable Certificate of Completion | Lifetime Access
4.5 (2,608 ratings)
Course Price

View Course

Related Courses
Adobe Premiere Pro Tutorial (2 Courses, 7+ Projects)All in One Design Bundle (280+ Courses, 100+ projects)

Time Indicator

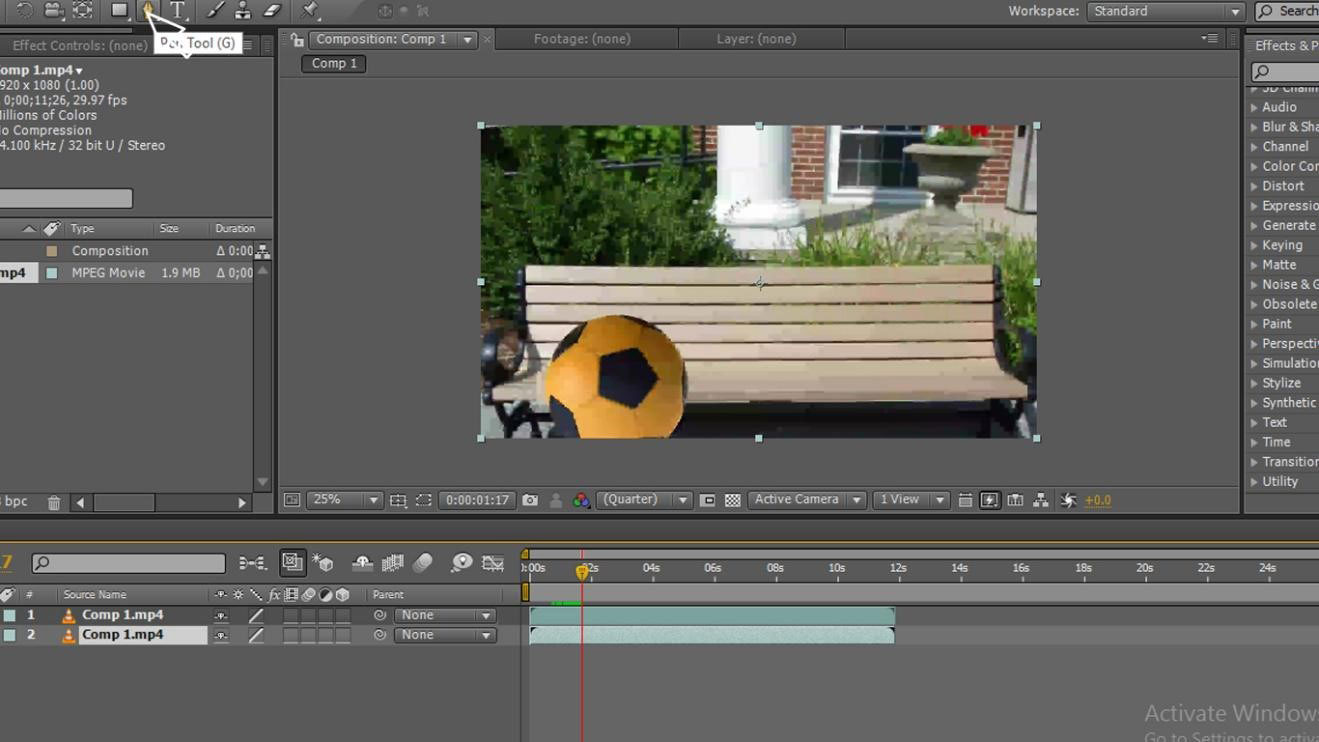

Step 7: We can use a selection tool or pen tool to select the path for masking, here I select the pen tool to draw the path.

using pen tool

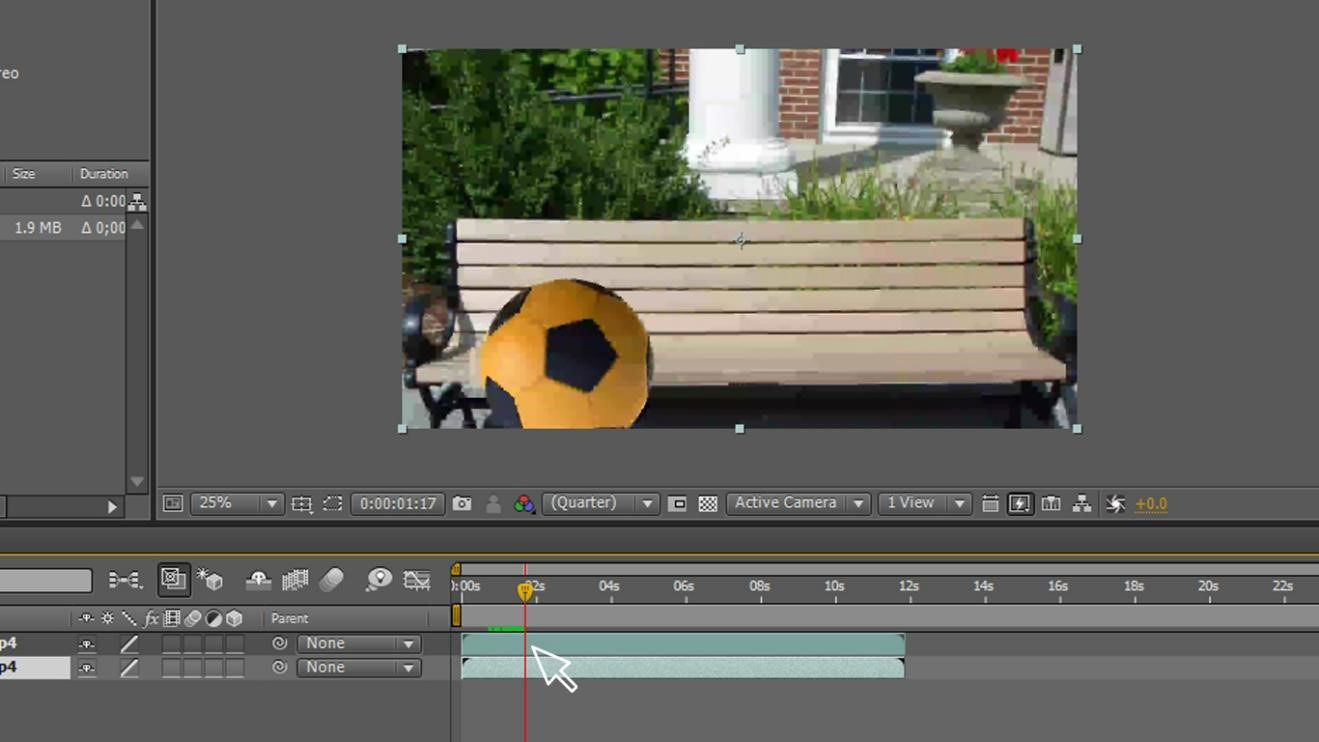

Step 8: Select the point from where we need to start masking.

create masking

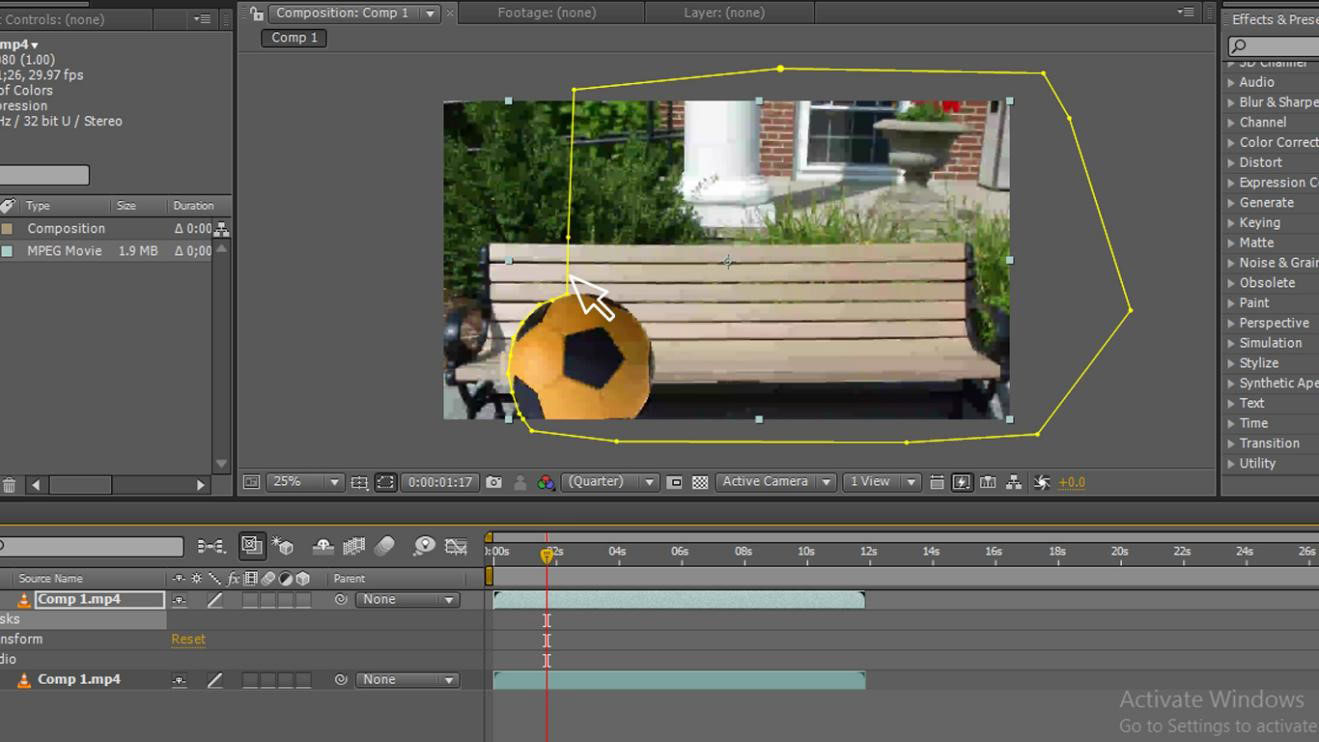

Step 9: We need to draw a path with the pen tool, here we have drawn an outline from ball to the surface where we are going to mask the layer, we will be masking in the outline.

Path for masking

Step 10: Always keep the mask layer on top, because we need to place original footage in the down layer below.

original footage (masking in after effects)

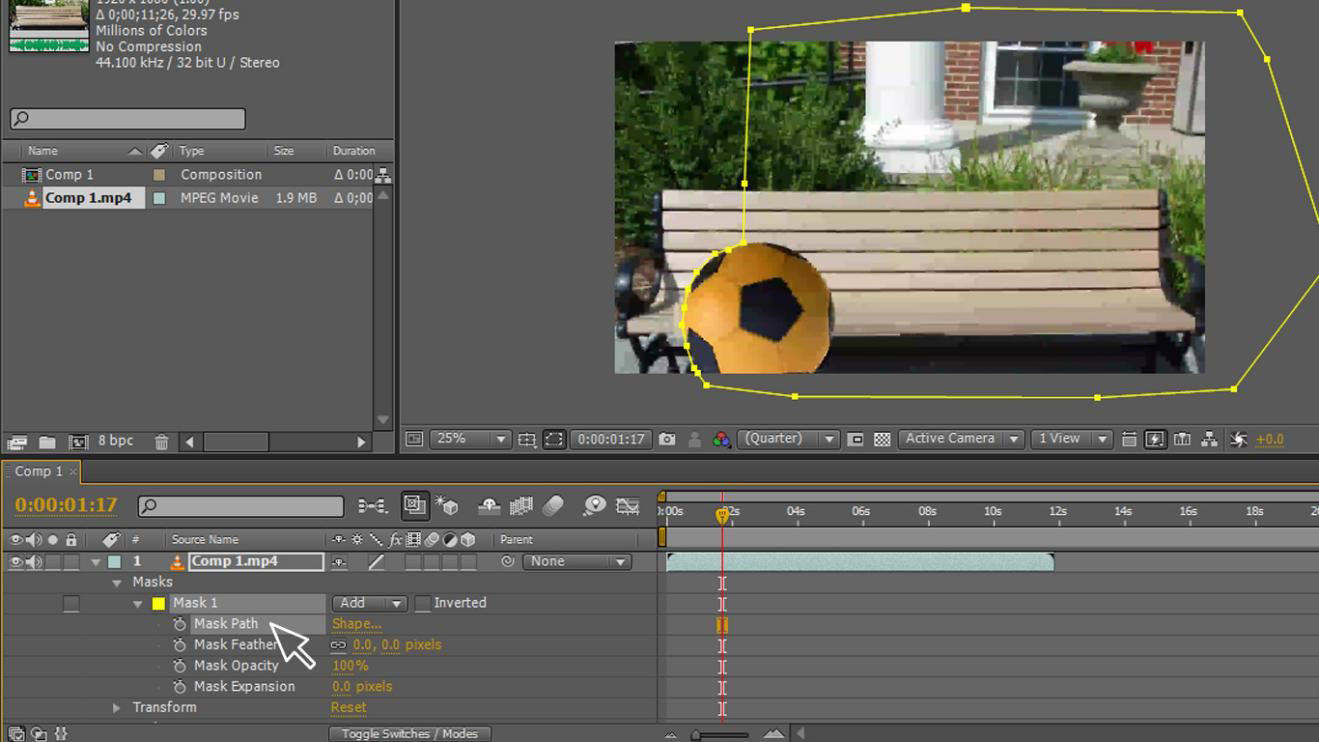

Step 11: Now go to masks – mask – mask path, here we need to select the points where we need to follow the object with the mask path.

mask path the object

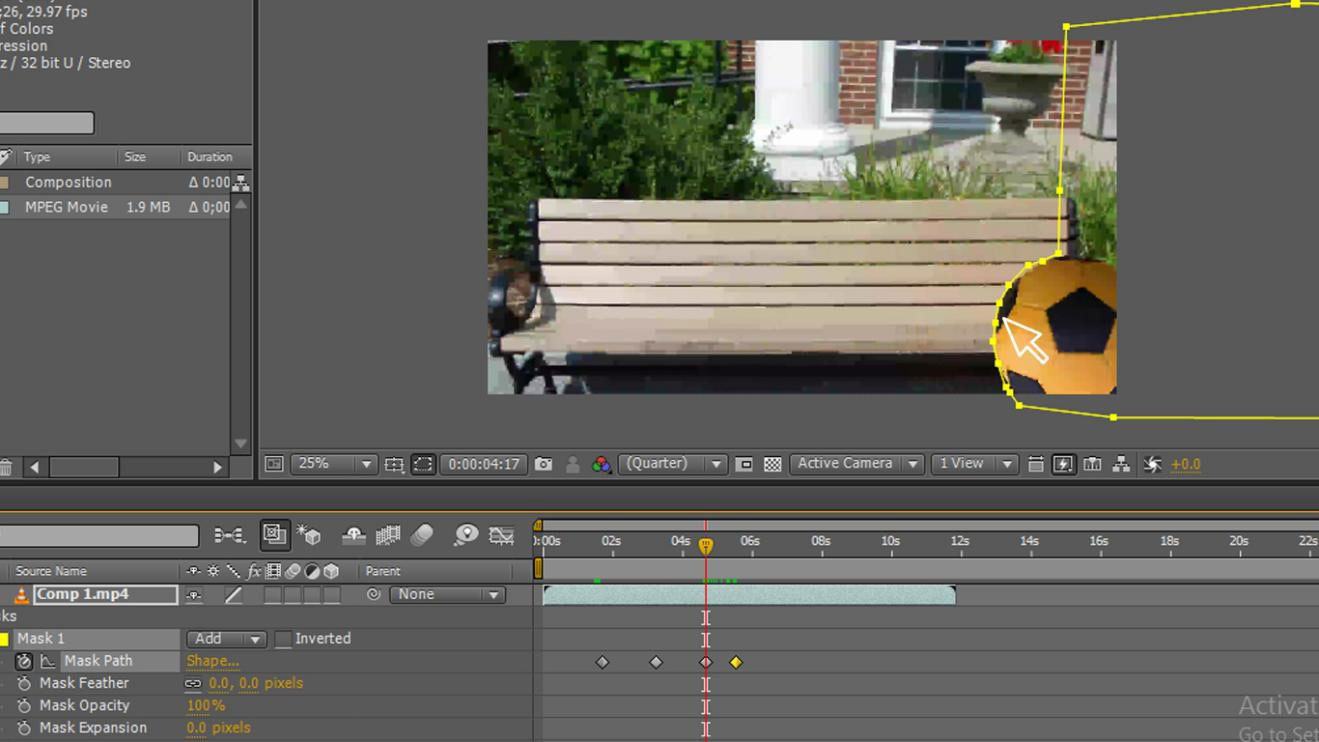

Step 12: We need to move the path along with the object, we kept three-four points to follow the object, we can find the mask following the object

moving the path (mask in after effects)

Step 13: We need to move until the end motion.

move the motion to end

We finished the drawing shape and we created the path and also animated the path, it’s just a basic process now we are moving to the next step of masking, let us try to mask a text with the ball now.

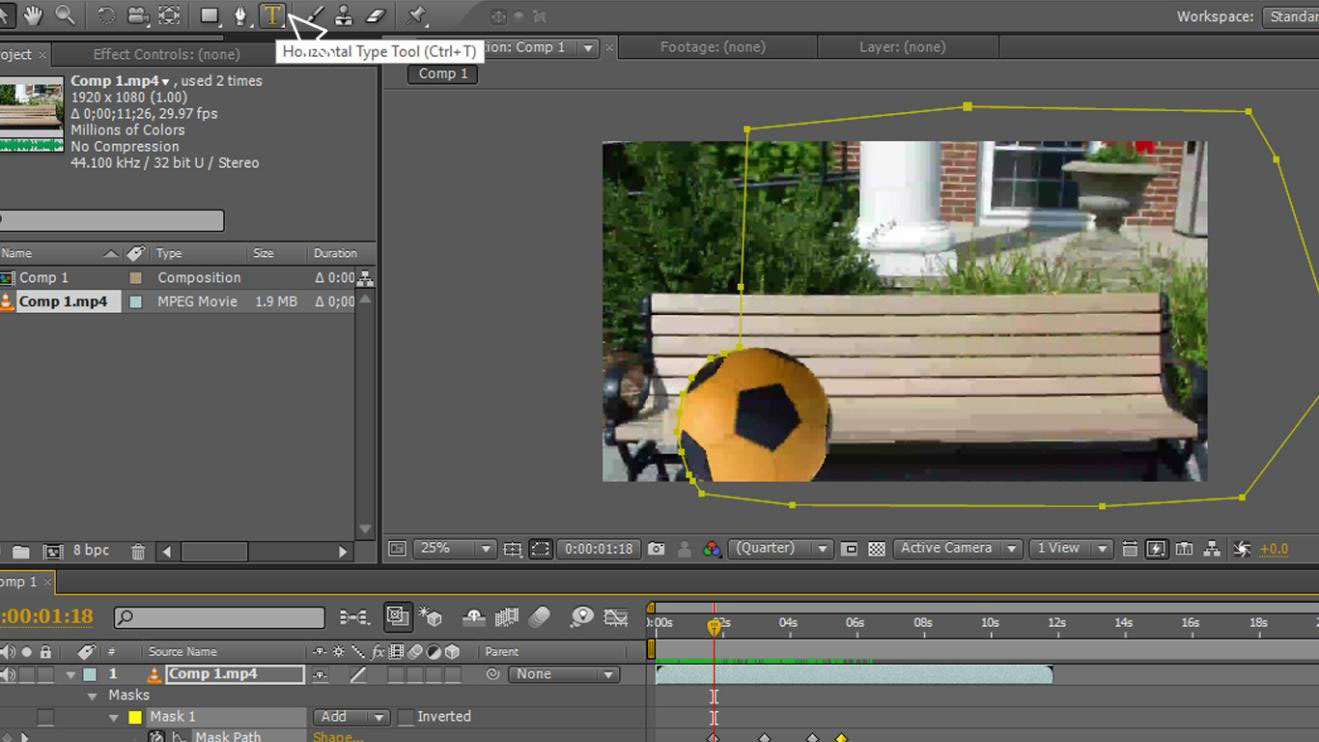

Step 14: Select the text tool.

selecting the text tool

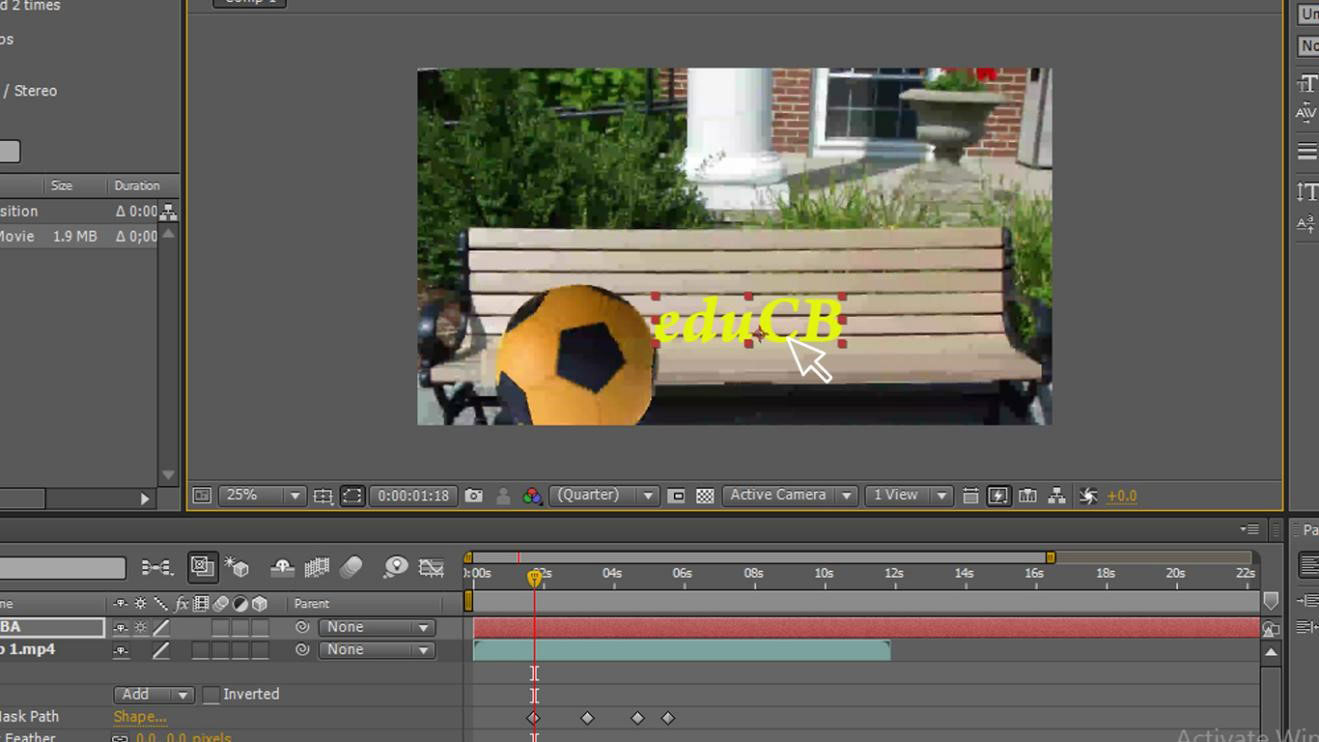

Step 15: Type your text.

Typing the text

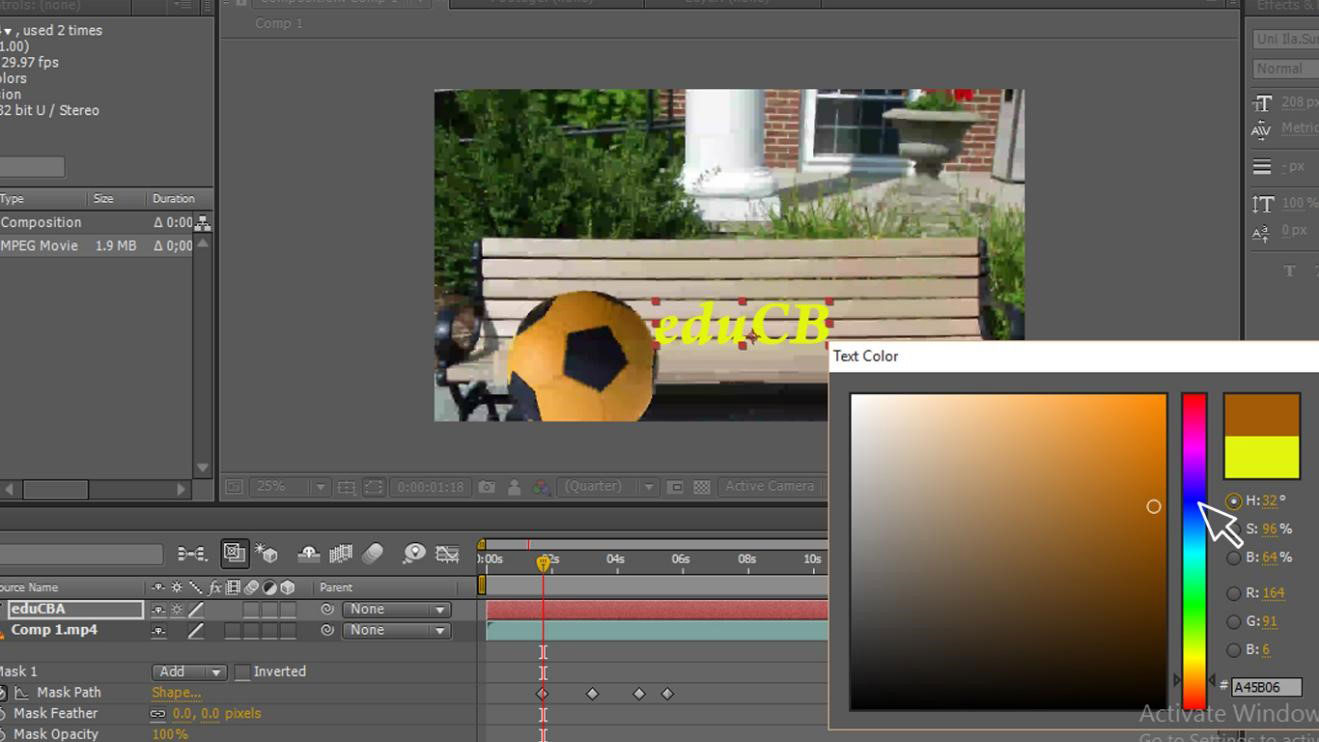

Step 16: Select color for the text, we need to select the perfect color every time then only we can have a good out look.

use color to text

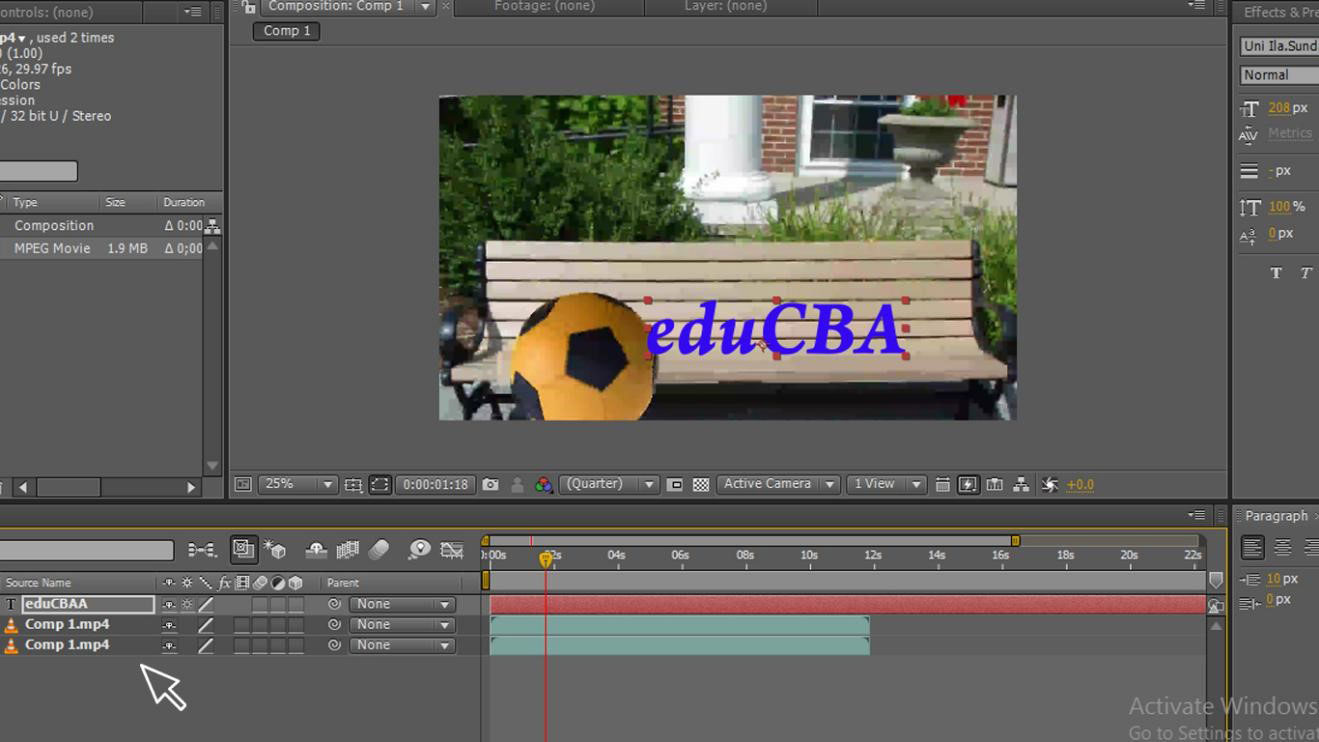

Step 17: We can see here we have three layers footage, duplicate and text, here we have text layer on top.

text layer on top

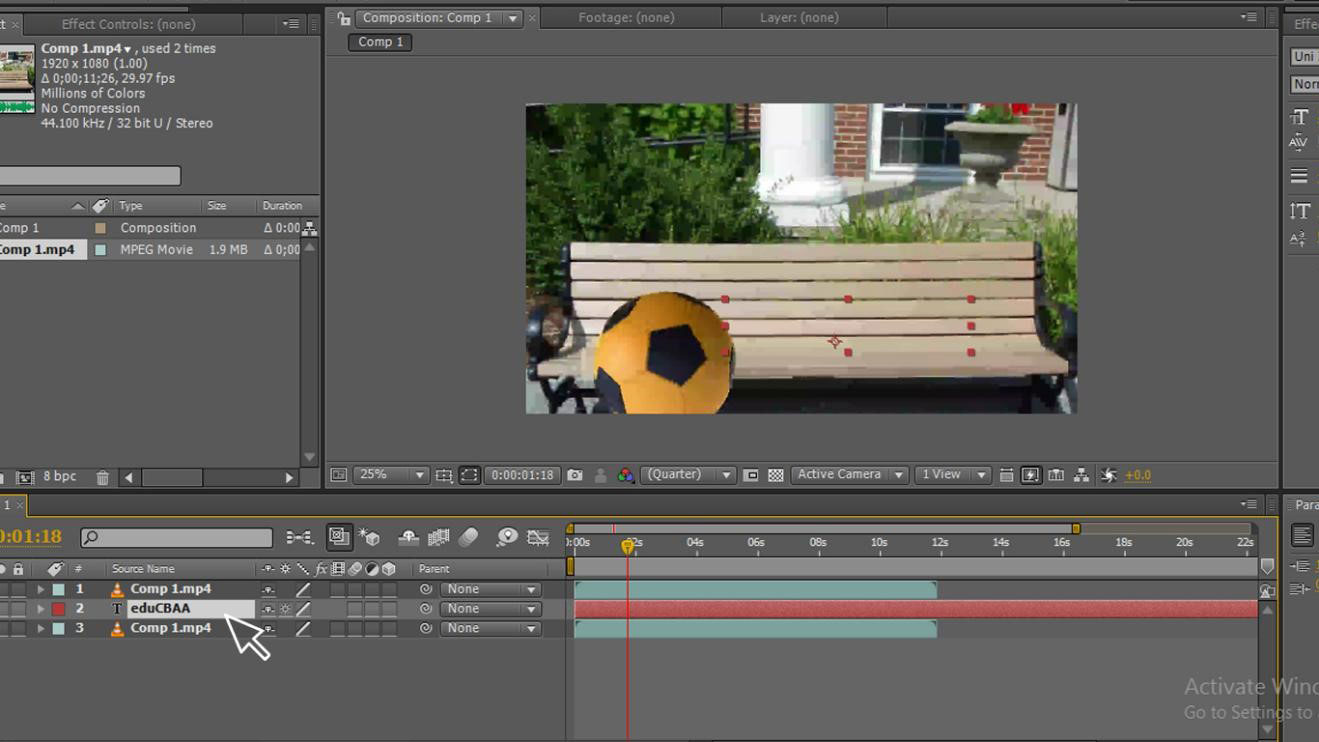

Step 18: Move the text layer to the middle by that we can mask the text with the above layer which shows like a ball masking the text, now we cannot see the text because the mask layer has hidden the text when we move the mask layer we can see the text.

hide the text

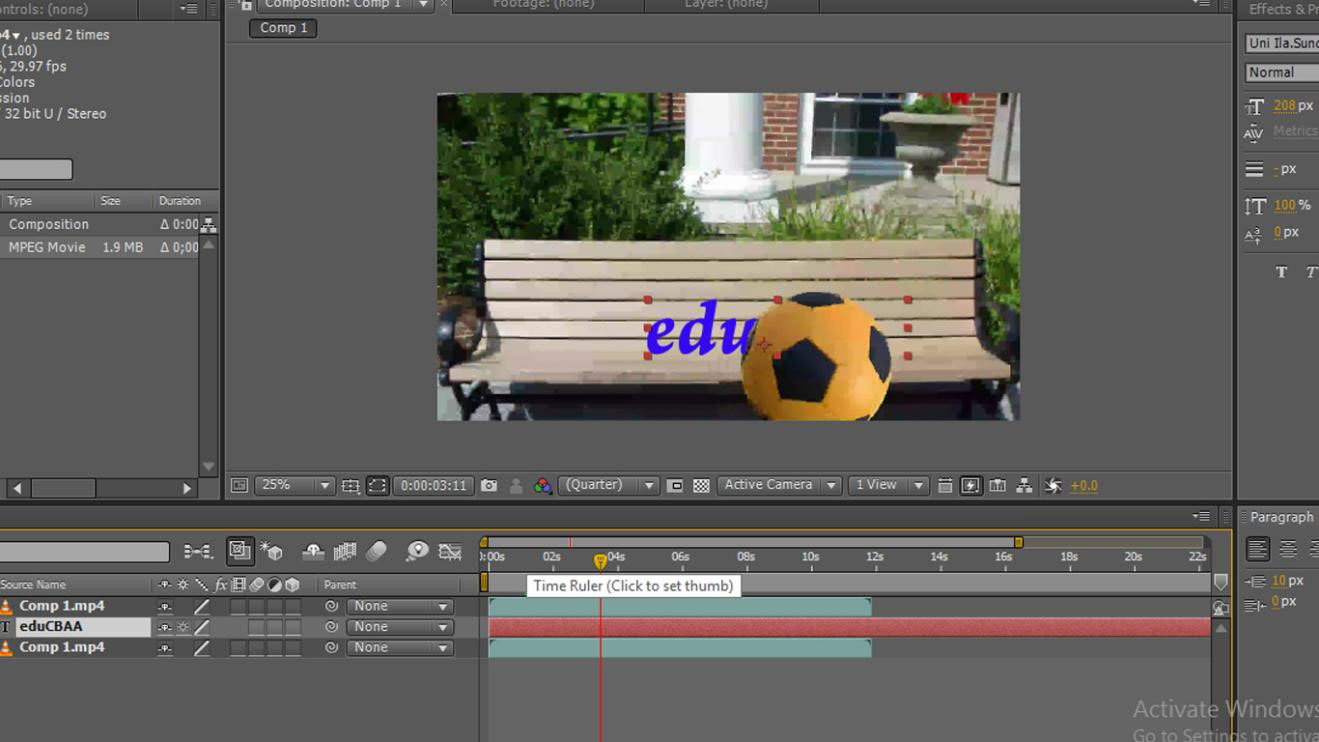

Step 19: Now see the picture, it shows like the ball has masked the text, we have the original layer below the text layer in the middle and the upper mask.

Ball masking the text

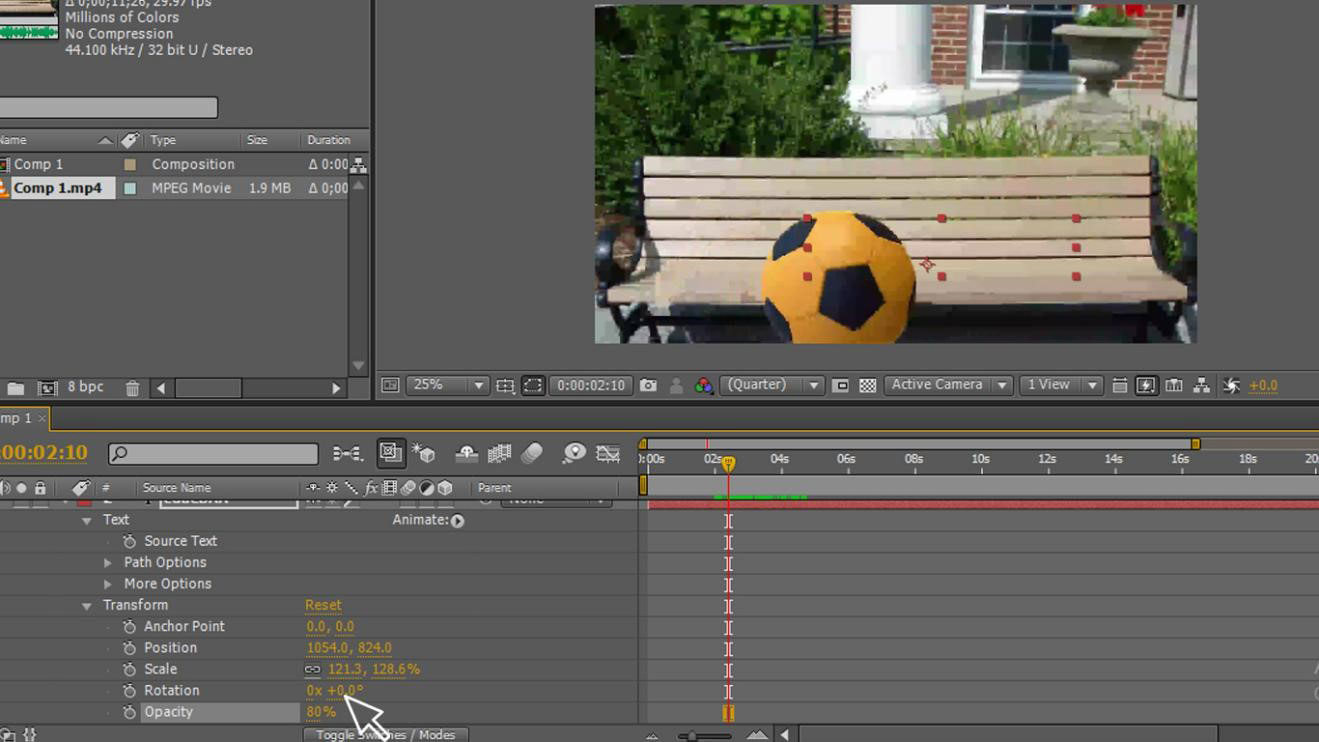

Step 20: Now go to text-transform – opacity and change the opacity value as you like, I have kept the opacity as 80 when you apply opacity we can see a realistic image.

change the opacity

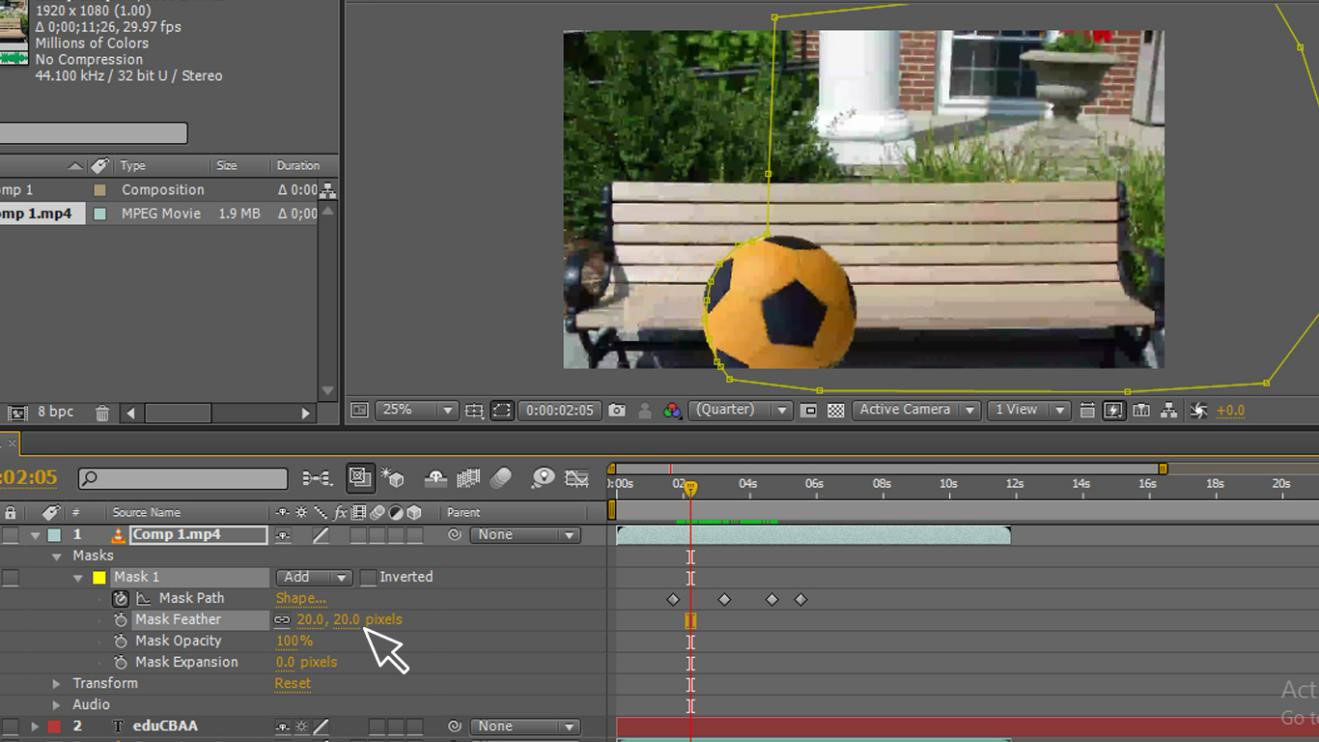

Step 21: Go to mask – mask feather – Change the feather, it is better to change the feather in every moment of the object, whenever we feel that the object is different we need to change the feather with that we get a natural feel of the image.

change the mask feather

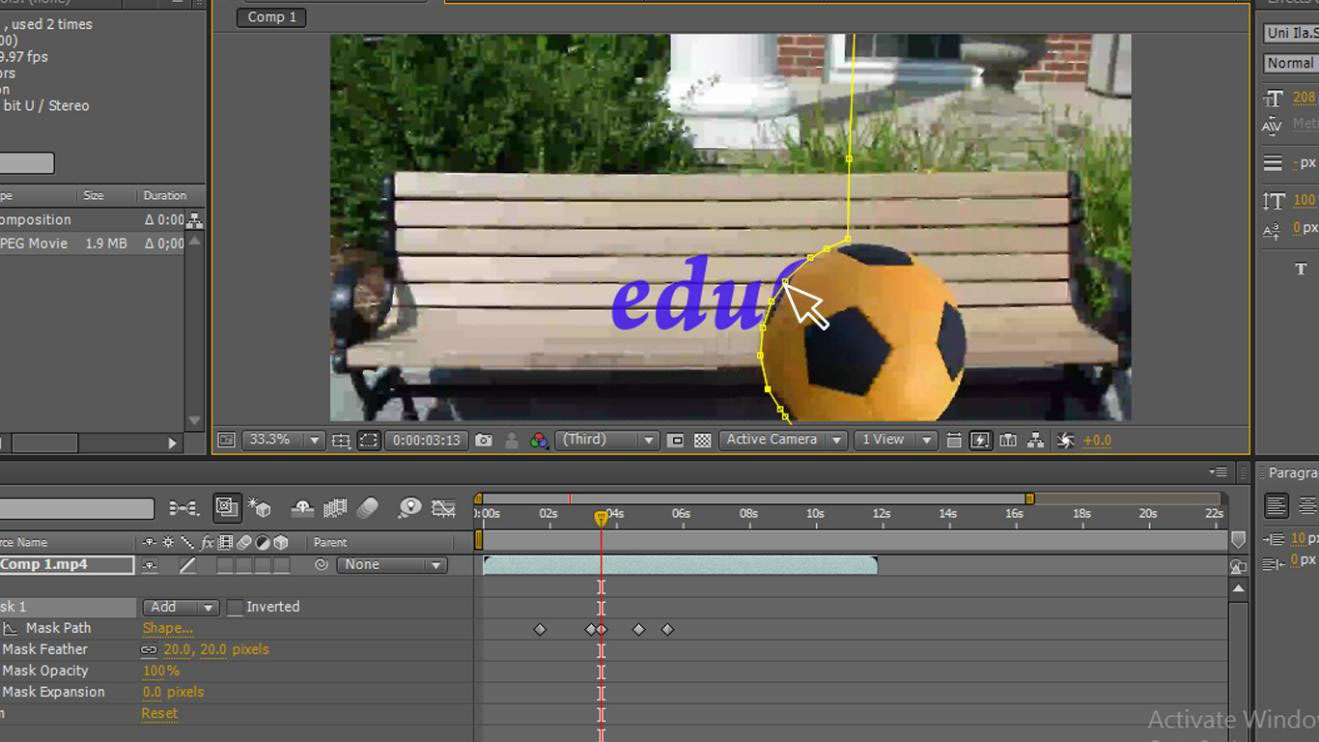

Step 22: Adjust the keyframes. We need to adjust the keyframes in every moment when the object moves our path which may mismatch with the object so we need to observe well and match the path and adjust the keyframes equal to the object.

adjust the keyframe

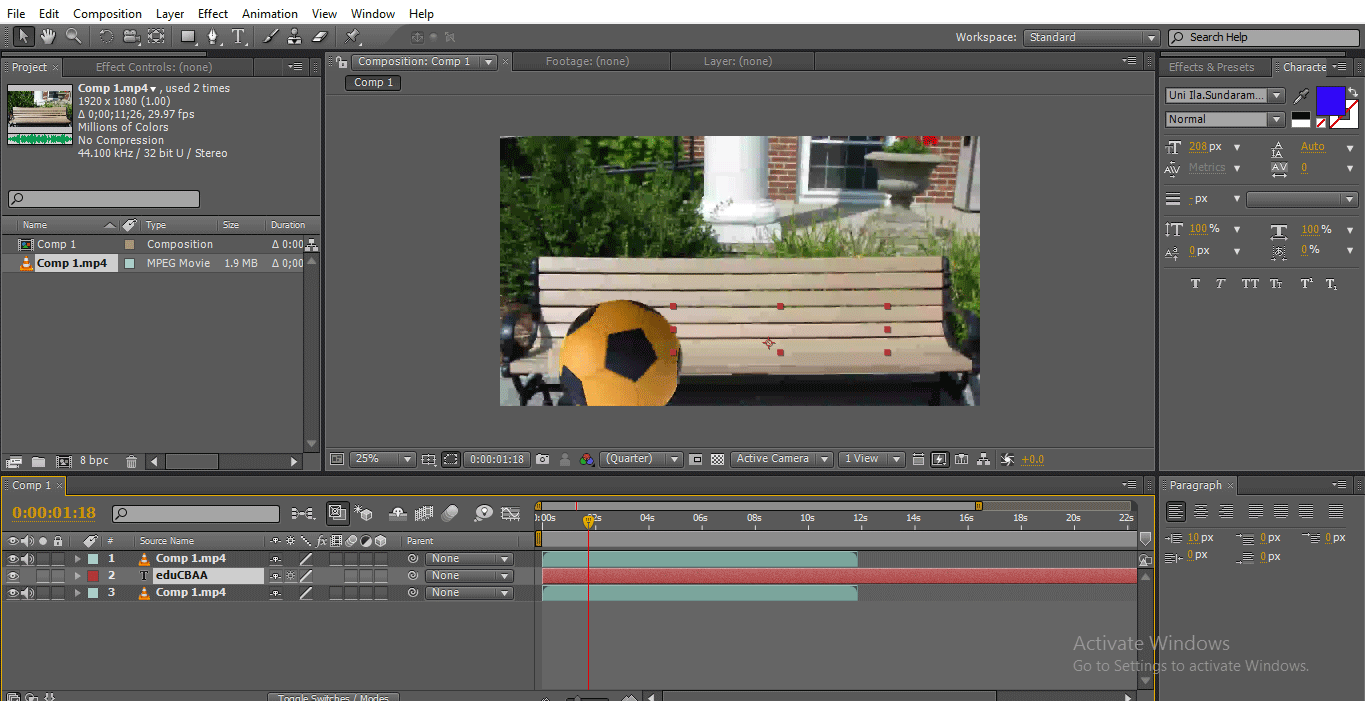

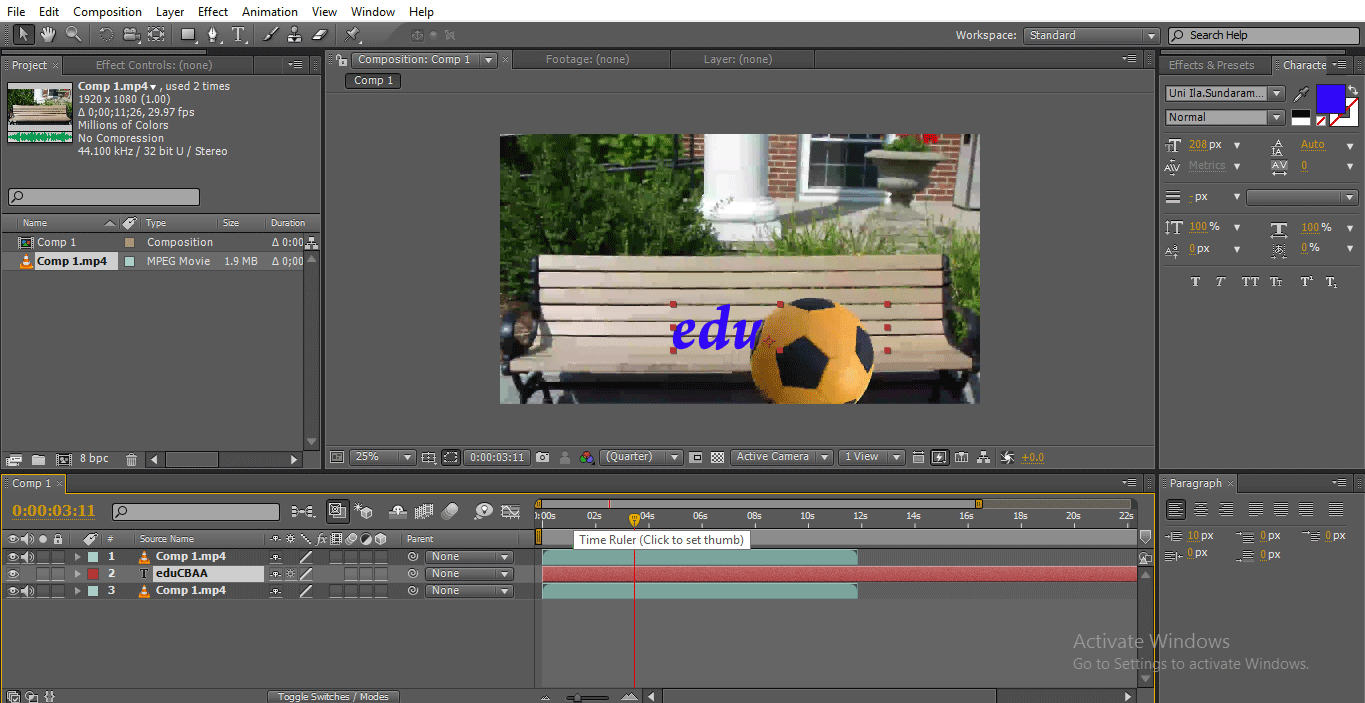

Step 23: Here we go, now we see the animation.

Animation

Step 24: When the ball moves the text comes behind the ball.

moving the ball (mask in after effects)

In this process we did a path masking, we masked a text with a ball to make a move, then we replicate it, then we drew a path for the ball, then we animated the path to move along, and we created and placed the text below the mask layer and above the original layer, then we animated the ball feeling the ball has masked the text.

Small Text Masking

To mask small text let’s follow the below steps.

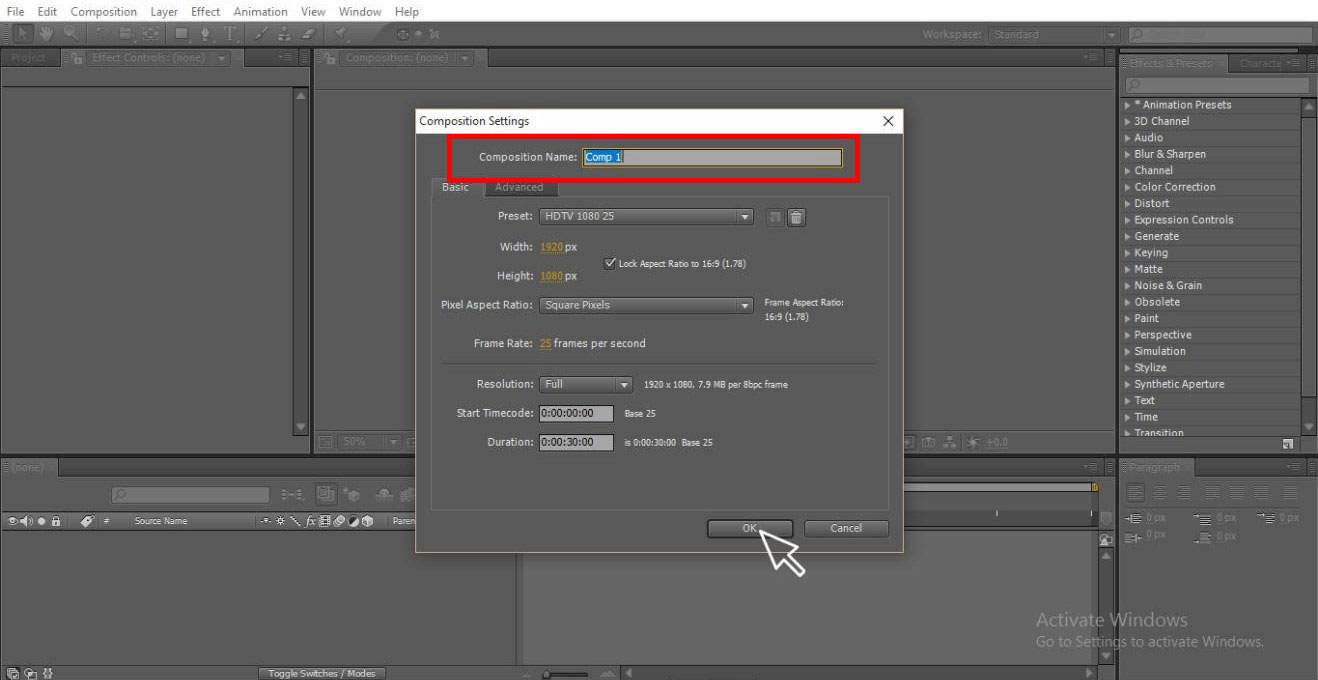

Step 1: Start a new composition.

new composition (mask in after effects)

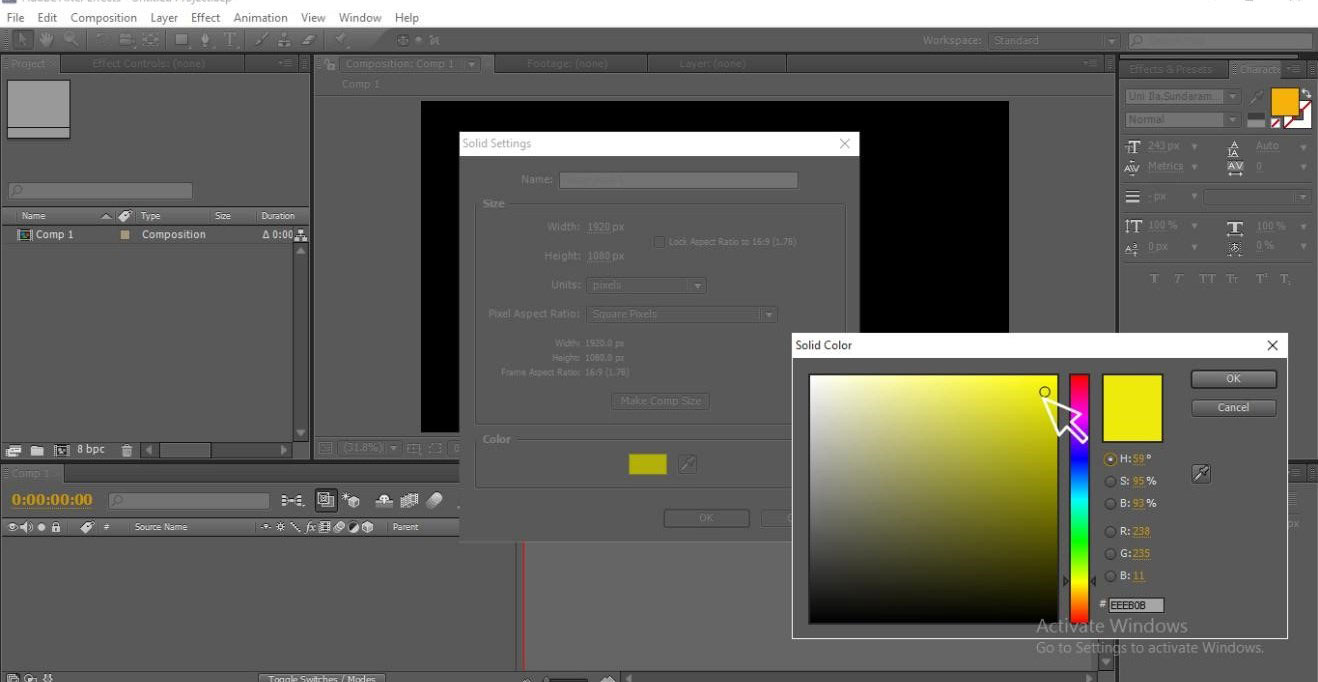

Step 2: Select the Solid layer with an attractive color.

Selecting a Solid Layer

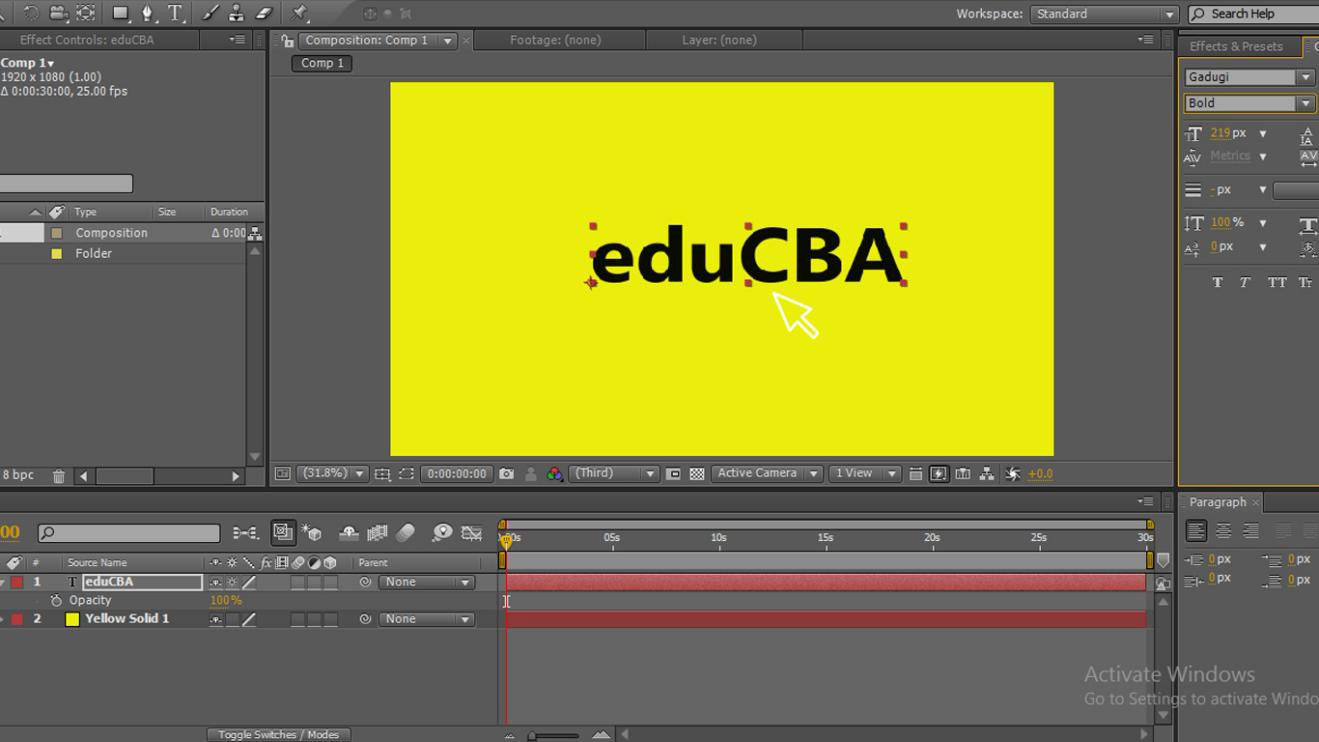

Step 3: With the help of the text tool type your text.

Typing the text

Step 4: Select a good style which suits your thoughts.

Text style

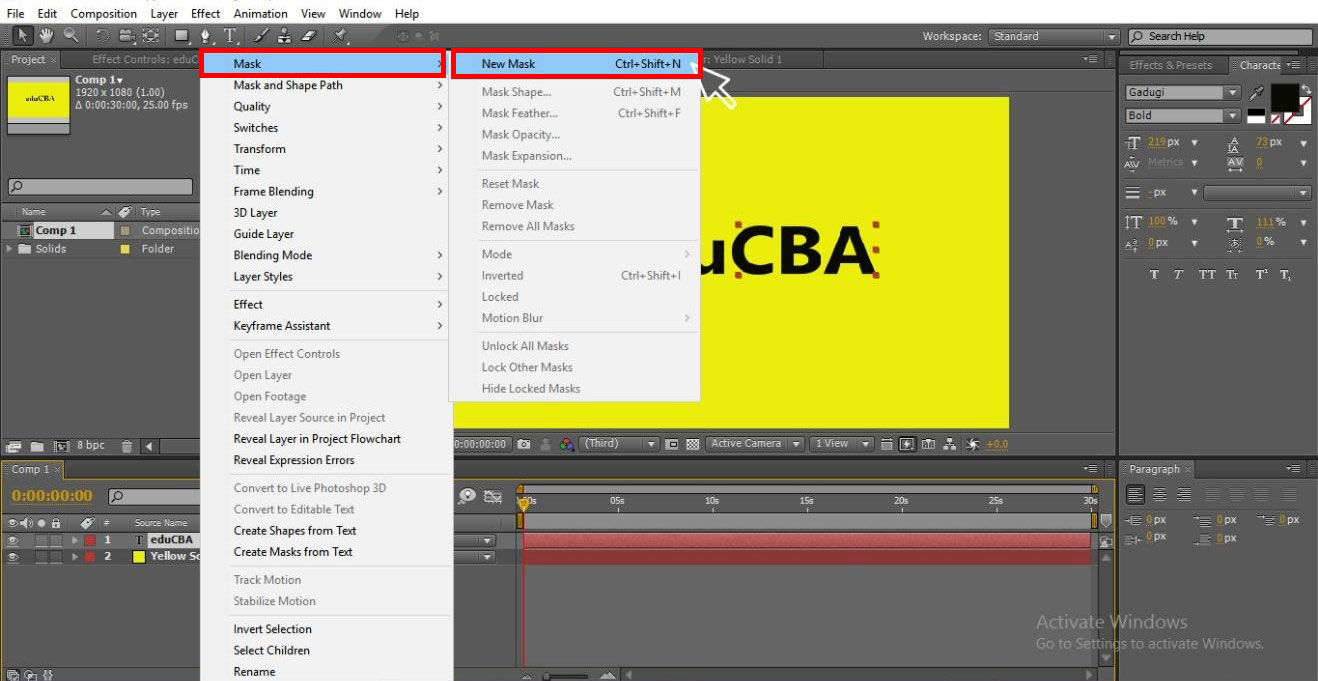

Step 5: Now right-click on the text and go to mask and select a new mask, where you can use the shortcut of CTRL+SHIFT+N.

select a new mask

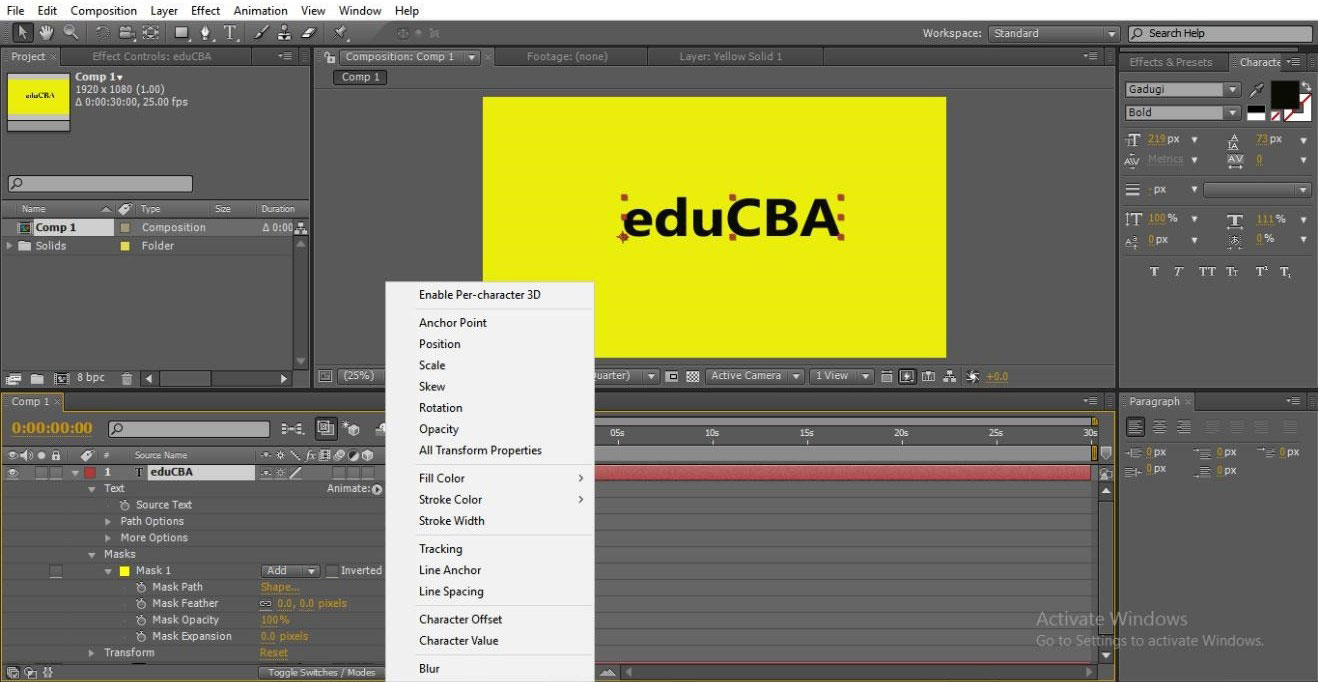

Step 6: Go to text and click on animation, here we can see the various types of animations.

Types of animation

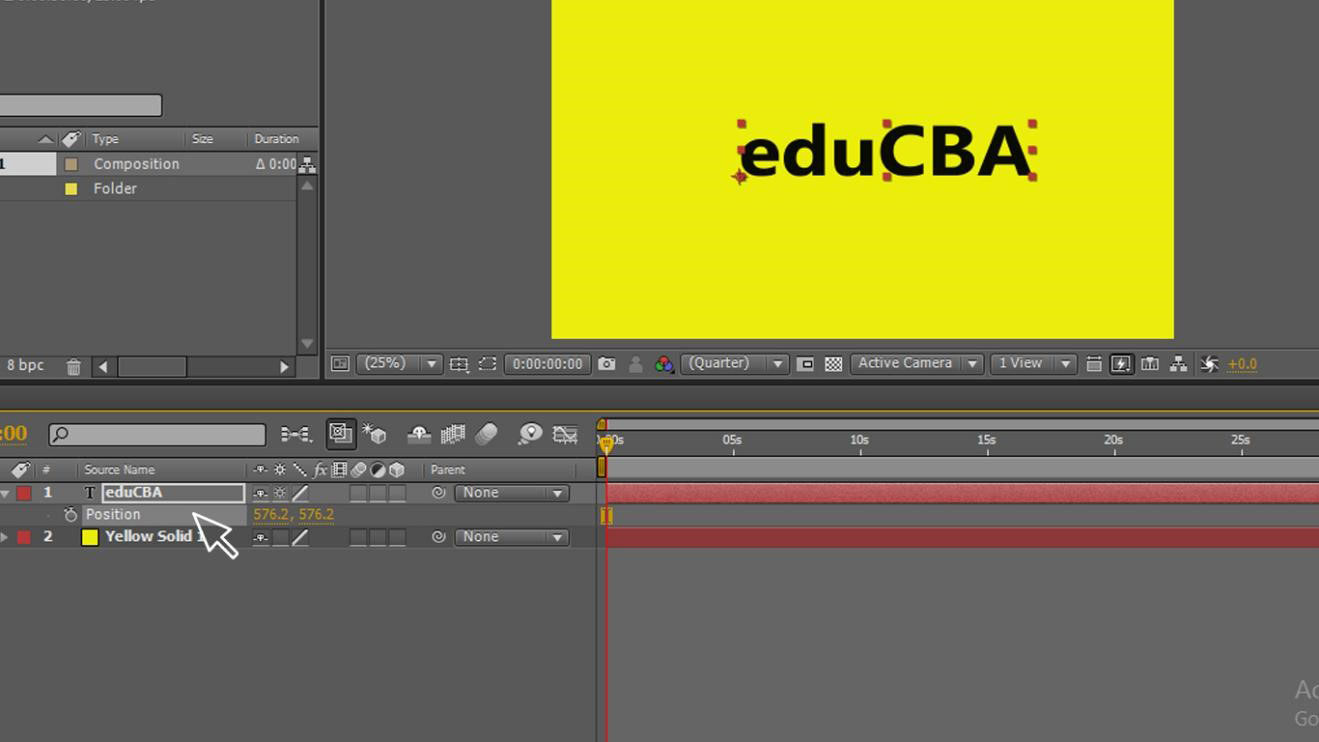

Step 7: If we go to the text and by selecting the position we can animate the text.

animating the text

Step 8: But in this case, text animates in the screen from one side to another but in masking we animate within the path, let’s see how it works in the next step.

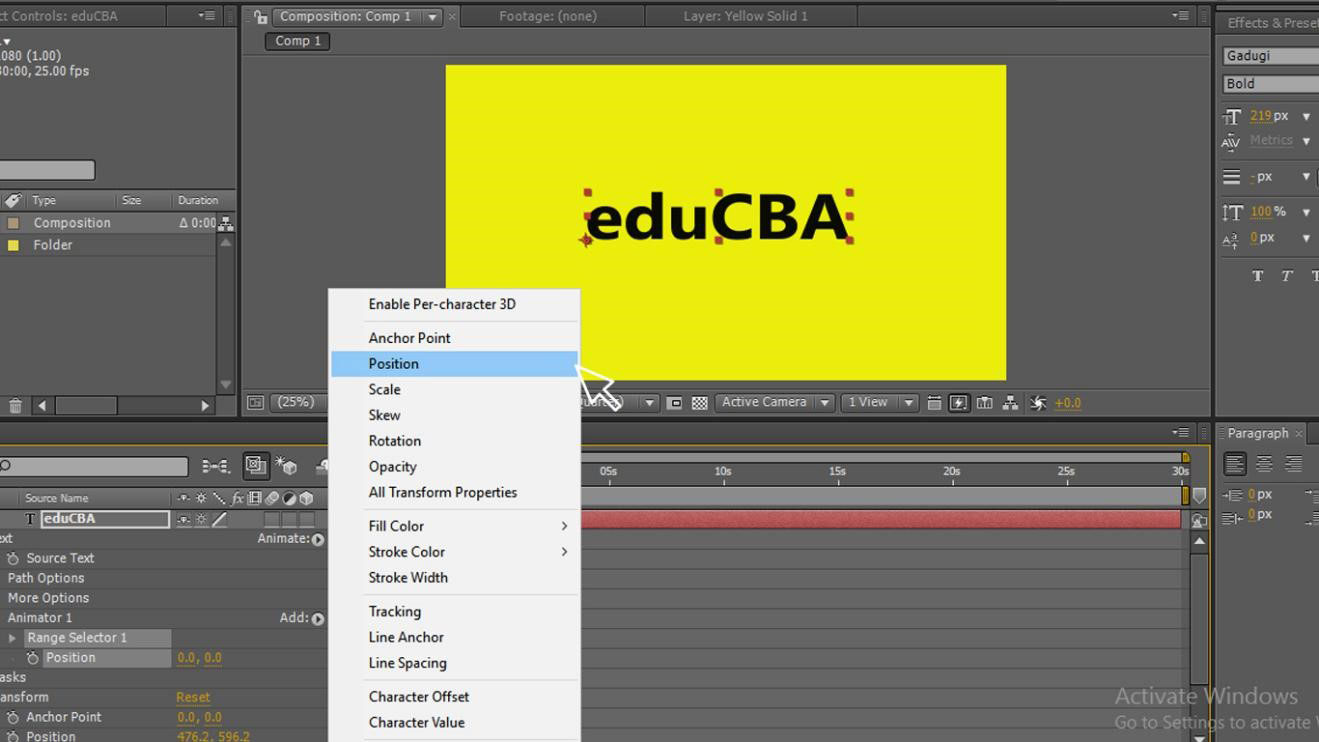

Step 9: Go to the text and click on animation and we will get the sub-options, in that select Position.

select the postion

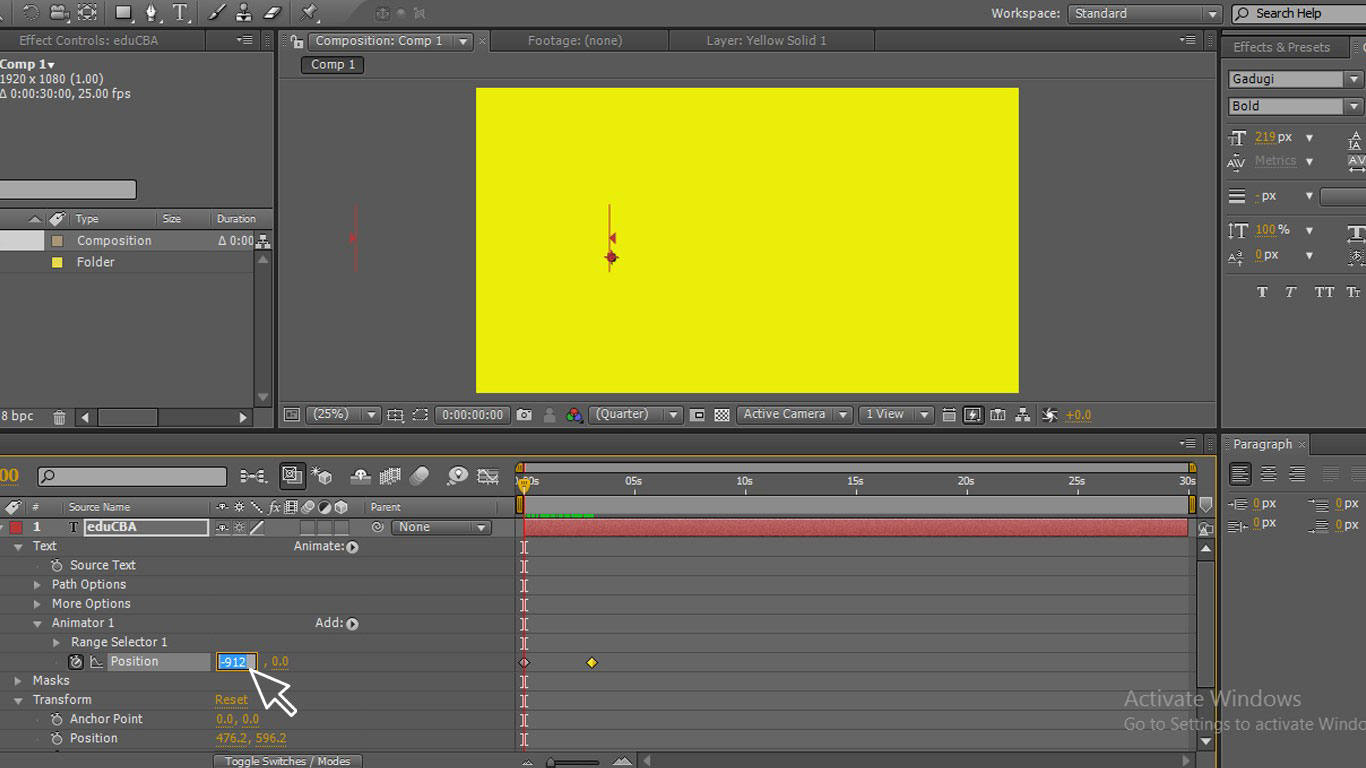

Step 10: Now give two points where to start and where to end, change the values of starting and ending, give the starting value where the text hides here I have given 912.

Values to text

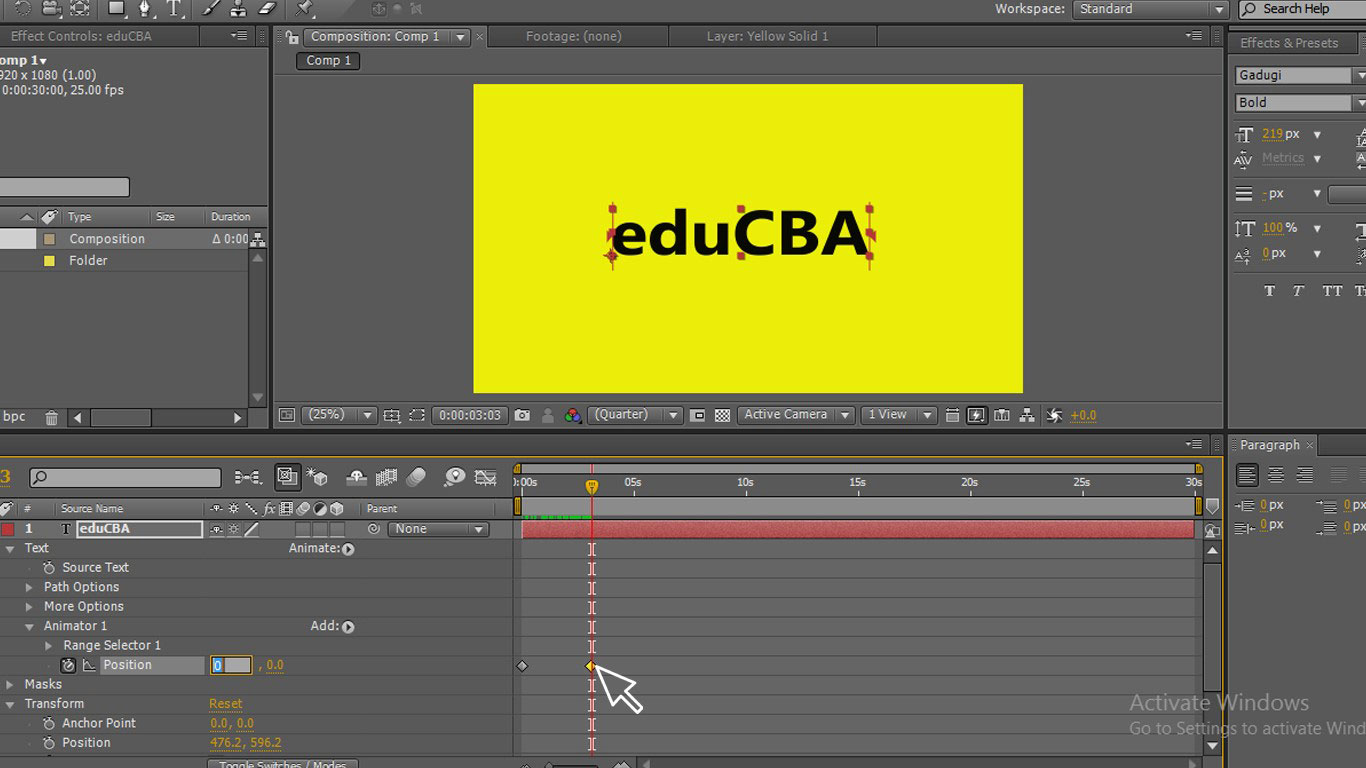

Step 11: Give the endpoint as 0 where the text gets its old position. Now you can see that text animates within the path.

animating within the path

Step 12: Here we go now we can see. How text animates within the text path.

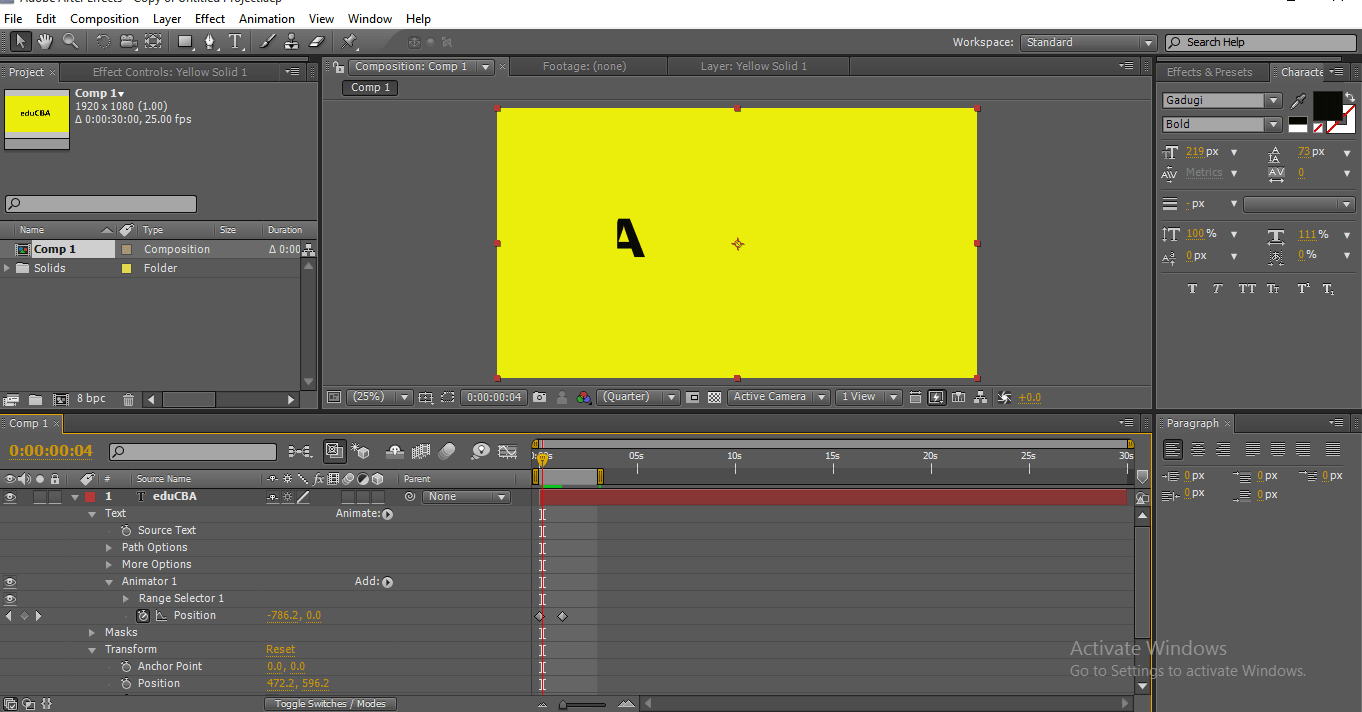

final result (mask in after effects)

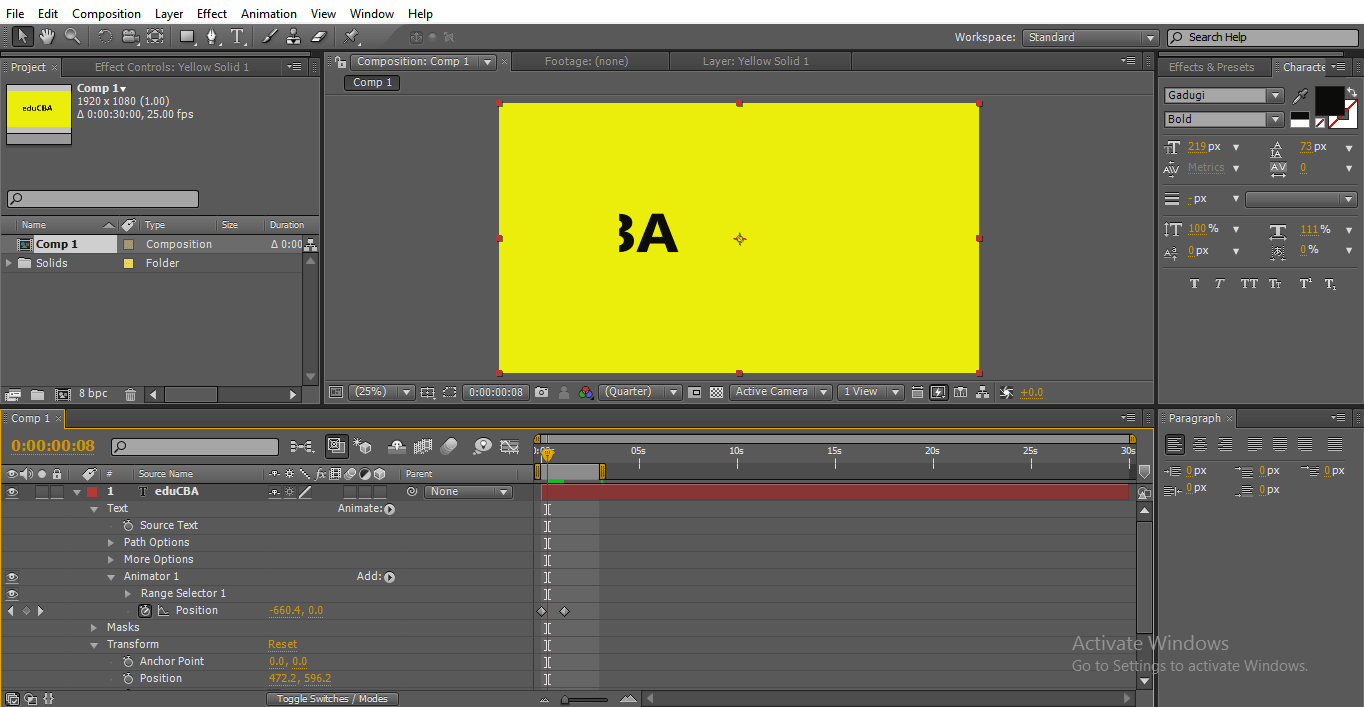

final result 2 (mask in after effects)

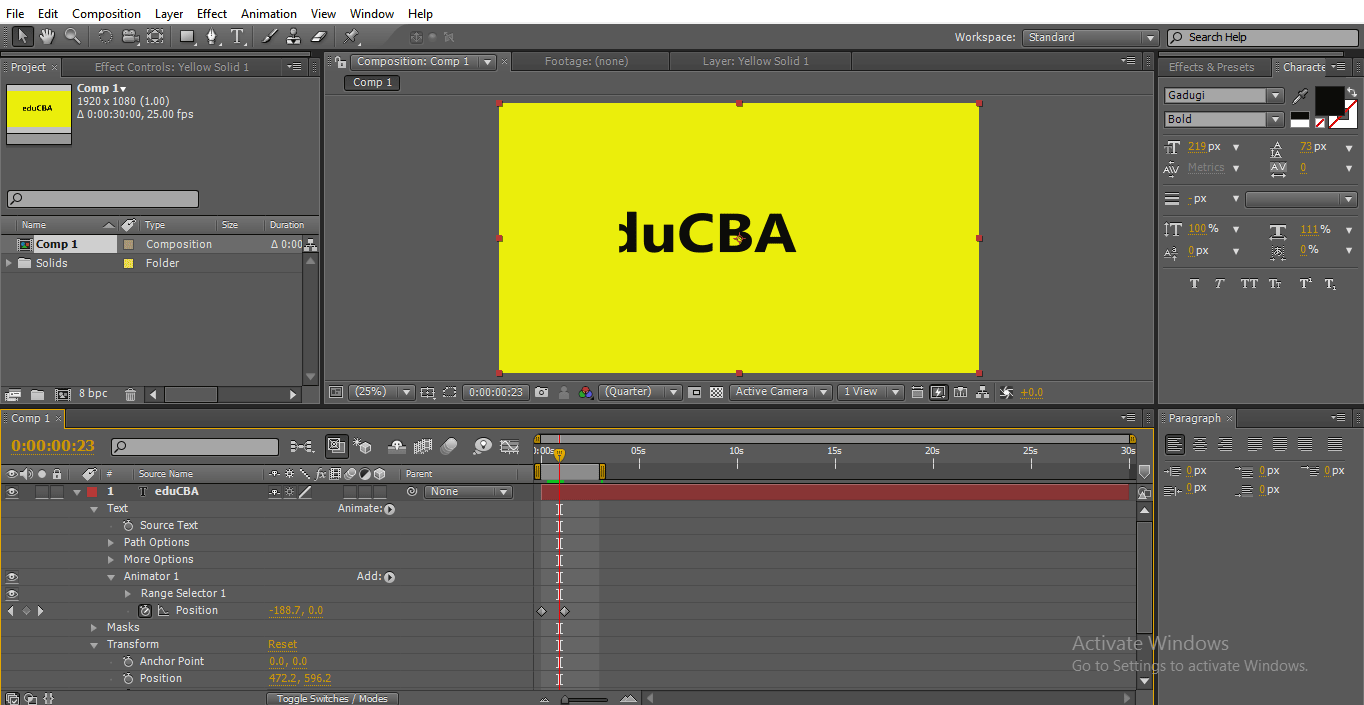

final result3 (mask in after effects)

final result4 (mask in after effects)

Conclusion

In this process we created a text masking, for that we selected a text and applied mask path to the text by that text is filled with its masking, then we animated the text, this type of animations are used in digital logos and title animations.
