Developer Tab in Excel
Developer Tab in Excel is used for accessing function and tools which are used in creating the macros. If the Developer tab is not available in the menu bar then to enable it File menu’s Option and from Customized Ribbon tab add Developer tab from recommended commands to Customized commands list. Once we do that, we will be able to see Developer menu tab in the Menu bar which has Visual Basic, Macros, Add-Ins and Controls mainly. We can use Visual Basic to write a macro code.
How to Add the Developer Tab in the Excel Ribbon?
Developer tab in Excel helps out to create a macro, import and export XML files or to insert a form or active controls.
In some of the version, it doesn’t show the Developer tab in excel by default, so you’ll need to add it
Developer tab in excel will not be visible unless you activate it from the options menu. To activate the Developer tab in Excel, follow the below-mentioned steps.

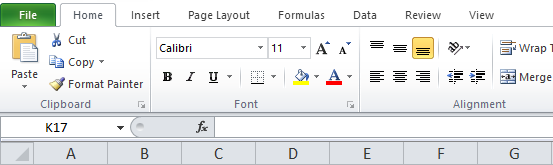

Step 1: First, click on the File button on the top left-hand corner of the screen and then click on the “Options” button on the bottom left-hand corner of the screen.

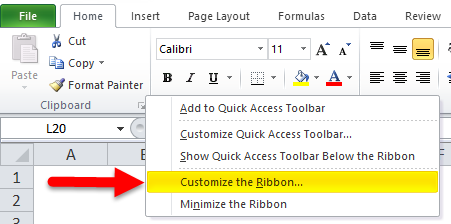

You can Right-click anywhere on the Excel ribbon and then click Customize the Ribbon

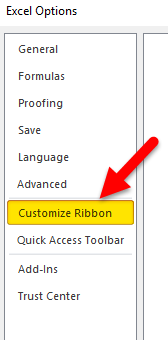

Step 2: ‘Excel Options’ window appears, click on the ‘Customize Ribbon’ button located in the list of options in the left side of the Excel Options window.

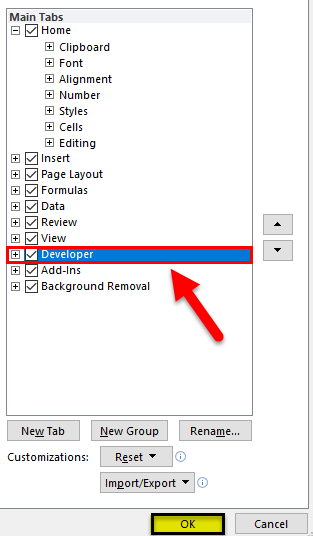

Step 3: Now you can find ‘Developer’ option under ‘Main Tabs’ and you can tick or check box beside it. Once it is done, Click on the ‘OK’ button at the bottom right-hand corner of the Excel Options window.

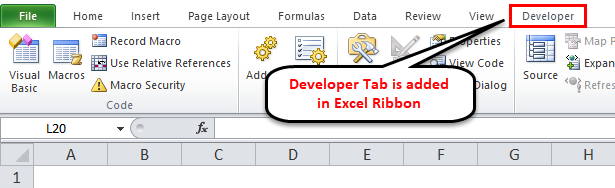

Step 4: Now, you can observe the Developer tab is added in Excel Ribbon,
Developer Tab Sections & its Uses

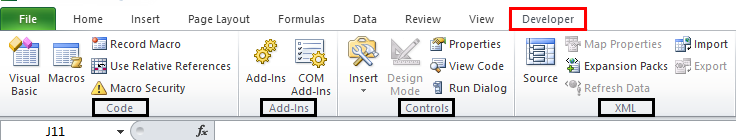

Developer tab in excel consists of four sections (Below mentioned black color marked boxes)
Let’s check out the various Sections of the developer tab in excel.
Excel supports basic programming to create powerful scripts and actions in Excel with Visual Basic and Excel Macro options where you can create, record and edit macros which can automate your repetitive or manual tasks in Office applications
Add-ins in excel are added to get additional or extra features, functionalities, and commands in your workbooks.
Default, add-ins are not available immediately in Excel, when it is required, it has to be installed first and activate to use it.

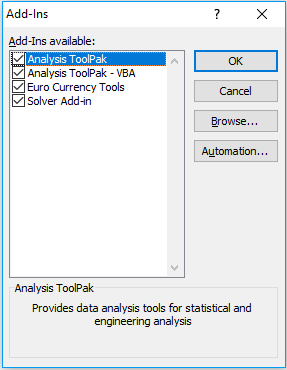

Few of them are inbuilt which is available in excel which is Solver and the Analysis Toolpak which can be added or removed through add-ins in excel options.
There are various types of add-ins, i.e. Visual Basic for Applications (VBA) add-ins Component Object Model (COM) add-ins and DLL add-ins
Visual Basic for Applications (VBA) add-ins Component Object Model (COM) add-ins is usually developed or designed by developers and solution providers.

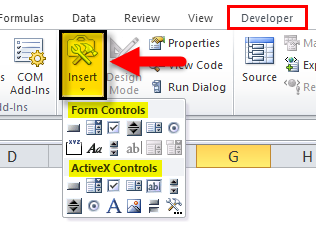

- Controls: Form Controls & ActiveX Controls.

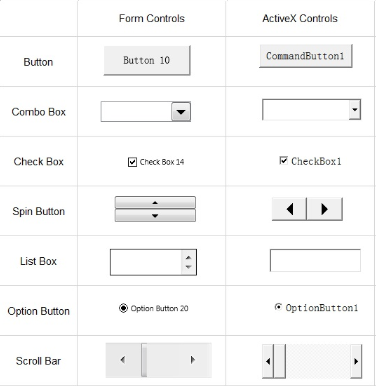

There are two different kinds of Controls in Excel spreadsheet, which is mostly similar, but appearance varies between them i.e. Form Controls & ActiveX Controls.
Both of them are used on worksheet forms.
Form Controls options are simple & easy to use in excel itself to create, whereas ActiveX control is slightly advanced, provides a more flexible design which is most commonly used in Excel VBA, where it appears or shows up as objects that you can use in your code.
There are 11 types of Controls in developer tab in excel.
- Check Box:
It is also called a checkmark box or tick box or selection box, where it controls the display of check mark when it is selected. it is a little square shape where you can select or deselect a given option
e.g. True/False or Yes/No in opinion polls.
- Command Button:
Command buttons or push buttons are used to execute or to run a macro, it performs a task when you click on it.
- Combo Box:
Interactive tool for enhanced user interaction. It is a drop-down list from where you can select or add items of your choice to the list. You can select an item of your choice either by typing text into the combo box or by selecting it from the list.
- Image Control:
It embeds a picture or image such as JPG, JPEG, bitmap, GIF files & PNG formats.
It is used to display information or descriptive text or instructions. It can be either caption or title.
- List Box:
It is used to display a list of items to a list from where you can select one or more. By default, the options or choices are displayed vertically.
- Option Button:
It is used to select only one option from multiple options within a group. visually you can point out, whether the Options Button Control is selected or not. It is linked to a worksheet cell, when you select an option button, the value will be “TRUE” or if you deselect it, the value will be “FALSE”.
It helps you out to easily navigate with a large list of items by scrolling either vertically or horizontally. Scroll arrows in the Scroll bar can be either up/down or sideways.
- Spin Button:
It is used to decrease or increase in the number or value of a cell. Spin button is useful for showing the maximum & minimum value of the set range.
- Text Box:
It is used to place a text in them. It can be either read-only or in Locked format. Multiple lines can be entered in the text box.
- Toggle Button:
It is mostly used to hide or unhide a range of rows or columns and it is also used to hide or unhide a chart.
- XML commands usage.
To import & export Extensible Markup Language (XML) data that is created from other databases and application and also it enables you to exchange data between different applications.
Things to Remember
Apart from the above mentioned uses, the developer tab in excel also helps out for the following:
- To Create or to develop applications which can be used in Microsoft Office programs.
- Work with the Shape Sheet in diagramming and vector graphics application (Microsoft Visio)
- Create new shapes and stencils in Microsoft Visio.
- The Developer tab in excel also gives you quick access to some of the more advanced features and functions available.
