## Introduction to 3D Arrays in C

An Array is a group of elements with the same (homogeneous) data type. It is also called a Derived data type. As already noticed, a 3D array increases the space exponentially, and, an extra position added to locate the element in the array. In this topic, we are going to learn about 3D Arrays in C.

For example, consider a 4 level building with many slots for bike parking. So, here for getting the perfect slot directions of the bike that is parked, we need to tell the level number with row and column number. When you just tell the array, row 7 and column 4, which level does it search for? This 3D array is just for storing more amounts of data and representing the positions.

How can we define and implement them? Going further, let’s understand those concepts.

**Syntax:**

In C, Dimensional arrays can be declared as follows:

So, in the same way, we can declare the 3-D array as:

The meaning of the above representation can be understood as:

- The memory allocated to variable c is of data type int.
- The total capacity that this array can hold is 2*3*4, which is equal to 24 elements.
- The data is being represented in the form of 2 arrays with 3 rows and 4 columns each.

Columns | |||||

c[0] Array | Rows | c[0][0] | c[0][1] | c[0][2] | c[0][3] |

c[1][0] | c[1][1] | c[1][2] | c[1][3] | ||

c[2][0] | c[2][1] | c[2][2] | c[2][3] | ||

Columns | |||||

c[1] Array | Rows | c[0][0] | c[0][1] | c[0][2] | c[0][3] |

c[1][0] | c[1][1] | c[1][2] | c[1][3] | ||

c[2][0] | c[2][1] | c[2][2] | c[2][3] |

The data inside the array can be accessed through the above representation. In 3D arrays representation, the first square bracket represents the level of the array that has to be considered, second would be the number of rows, and the third one is for the number of columns.

4.5 (6,691 ratings)

View Course

The index representation of the array for the first element always starts with zero and ends with size-1. So, for example, if the number of rows is 3, then the index representation for accessing the data in rows will be 0, 1 and 2. The same logic applies for the array level and column indexes too. For the above representation, to get the data of 1^{st} level of the array with 2^{nd} row 3^{rd} column, we can access by c[0][1][2].

### Initializing 3D Arrays in C

We can initialize a 3D array similar to the 2-D array.

As mentioned above, the total number of elements that can be fit into the array would be arraysize1*arraysize2*arraysize3. Here it is 2*4*3, which gives 24.

#### Inserting elements:

Similar to the 2D array, for inserting elements in a 3-D array, we need to insert the data in levels, rows, and columns. So, for this, we use the concept of loops. In the above process for initializing the data in the array, we had predefined the values.

Here, elements can be dynamically inserted by the user, as per the requirements. Below is an example code for inserting the elements.

**Code:**

`#include <stdio.h>`

int main()

{

int c[2][4][3];

int i,j,k;

printf("Enter elements into 3-D array: ");

for(i=0;i<2;i++)

{

for(j=0;j<4;j++)

{

for(k=0;k<3;k++)

{

scanf("%d",&c[i][j][k]);

}

}

}

}

As observed in the code:

- First, we are declaring the array variable and the dimensions of the array with the number of levels of the array, rows, and columns.
- We are then declaring three variables for iterating over the elements in the array.
- Then, for loops are used. The first loop is for the levels iteration, the second is for the rows and the third loop is for the columns.
- Scanf function is used to read the data as we input, and then place the value inserted at those positions of i, j and k.

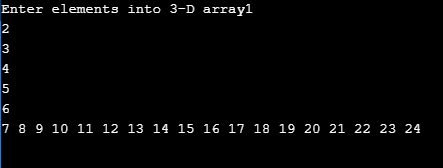

In the above example, we inserted the data in a matrix having 2 levels, 4 rows, and 3 columns. The output of the following can be obtained as below:

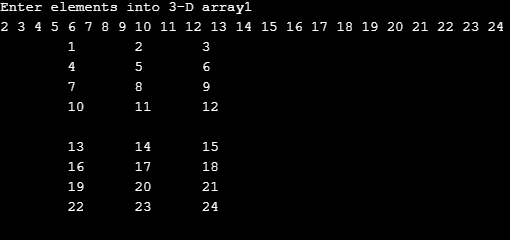

As we have not used the printf function to display the output, the program written had only read the user inputted values. After writing the print function (using for loops), the output would be displayed as:

#### Update Elements:

The updating of elements in the array can be done by either specifying a particular element to be replaced or by identifying a position where the replacement has to be done. For updating, we generally require the following details.

- Elements of an array
- Position/element, where it has to be inserted
- The value to be inserted.

For updating the data in an array through element details, first, we need to search for that element in the array, understand its position, and then replace the old element with the new element.

Here, we have given below two examples of updating the element of a 3D array.

Firstly, let us go through an example where the position of the element to be updated is already known.

**Code**

`#include <stdio.h>`

int main()

{

int c[2][4][3];

int i,j,k,num;

printf("Enter elements into 3-D array: ");

for(i=0;i<2;i++)

{

for(j=0;j<4;j++)

{

for(k=0;k<3;k++)

{

scanf("%d",&c[i][j][k]);

}

}

}

c[1][1][1] = 85;

for(i=0;i<2;i++)

{

for(j=0;j<4;j++)

{

for(k=0;k<3;k++)

{

printf("\t%d",c[i][j][k]);

}

printf("\n");

}

printf("\n");

}

return 0;

}

In the above program, the element on the 1^{st} level, 1^{st} row, and 1^{st} column is selected and the value of the data in that position has been updated.

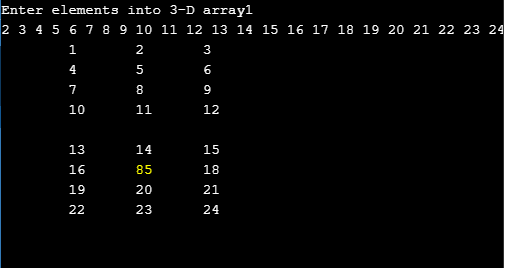

Output for above is as follows:

In the second example, we are going to show how the position of the element can be dynamically taken as a user inputted value and update the value of the element at that particular position.

**Code:**

`#include <stdio.h>`

int main()

{

int c[2][4][3];

int i,j,k,num;

printf("Enter elements into 3-D array: ");

for(i=0;i<2;i++)

{

for(j=0;j<4;j++)

{

for(k=0;k<3;k++)

{

scanf("%d",&c[i][j][k]);

}

}

}

printf("Enter the level , row and column number: ");

scanf("%d %d %d", &i,&j,&k);

printf("Enter the new number you want to update with: ");

scanf("%d" , &num);

c[i][j][k] = num;

for(i=0;i<2;i++)

{

for(j=0;j<4;j++)

{

for(k=0;k<3;k++)

{

printf("\t%d",c[i][j][k]);

}

printf("\n");

}

printf("\n");

}

return 0;

}

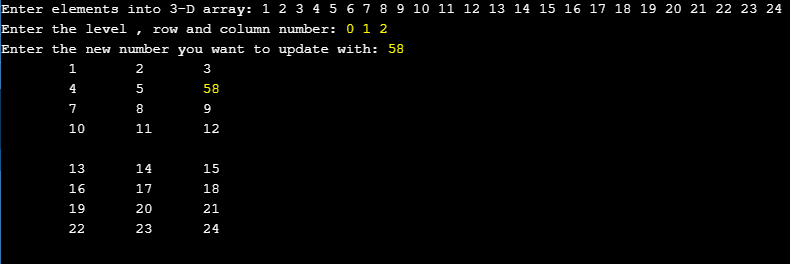

The output is as follows. Here, we used the scanf function to read the value given by the user as per their choice for the position of an element based on array level, row, and column numbers.

As an exercise, can you try writing a program in updating the whole column of the matrix with user-inputted values?

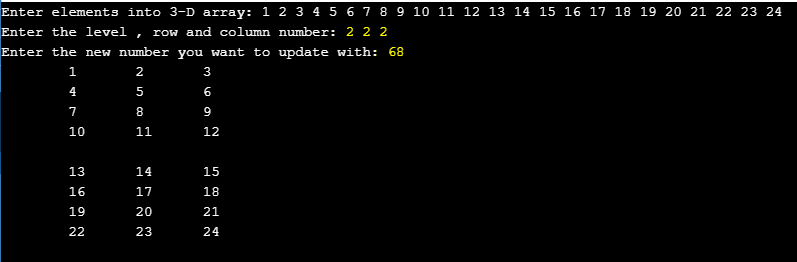

Now, as we know, in the 3D array, we declare the size of the array at the beginning itself. We are aware of the size of the array but what if the user gives a random row and column number outside our array size?

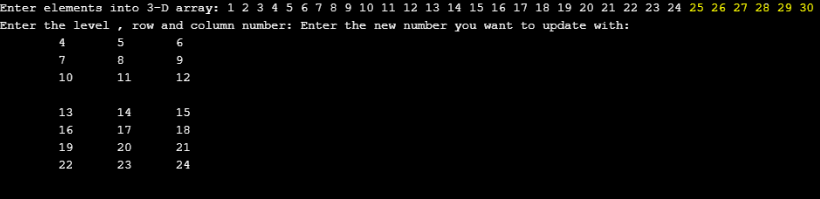

What if, we input more elements than required inside the array?

Notice that as we had not written any if/else condition or try/catch blocks, the output of the matrix does not change. However, we can write the code using the above-mentioned conditions to display errors for such cases.

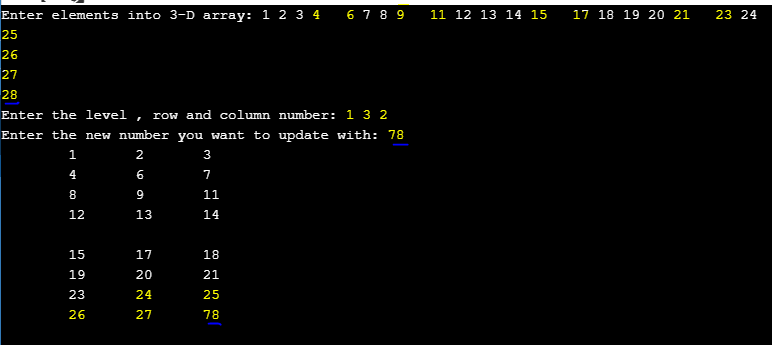

As the last example, are you not curious about, what happens if we skip some elements in between? What does my program do?

As observed in the above output:

- We missed up 4 values in the input, just by giving space and pressed enter
- But we had got that scope to enter the 4 remaining elements.
- Then we specified the last level, last row, and last column element to be changed to 78. And the output is as expected isn’t it?

#### Deleting Elements

After the concepts of insertion and updating of the data inside the 3D array, let’s now see how we can delete an entire row from the array.

We have written a program in a simple format so that the concept of different operations can be understood easily.

**Code:**

`#include <stdio.h>`

int main()

{

int c[2][4][3],i,j,k,num,x;

printf("Enter elements into 3-D array: ");

for(i=0;i<2;i++)

{

for(j=0;j<4;j++)

{

for(k=0;k<3;k++)

{

scanf("%d",&c[i][j][k]);

}

}

}

printf("Enter the value of row number to delete: ");

scanf("%d", &x);

for(i=0;i<2;i++)

{

for(j=0;j<4;j++)

{

if(j==x)

{

for(k=0;k<3;k++)

{

if((j+1)<4)

{

printf("\t%d" , c[i][j+1][k]);

}

}

j++;

}

else

{

for(k=0;k<3;k++)

{

printf(“\t%d” , c[i][j][k]);

}

}

printf(“\n”);

}

printf(“\n”);

}

}

Took the values of an array dynamically.The steps followed are:

- Asked user to input the number (index) of the row that has to be deleted.
- Using for loop iteration of array levels, rows, and columns. We are comparing if the row number and the user input number are matching or not.
- If they are matching and if the row number is less than the size of the array, we are printing the next row. Else, we are printing the row as it is.
- Here, as we didn’t have any condition on the level of the array, the row number specified is deleted from both the array levels.

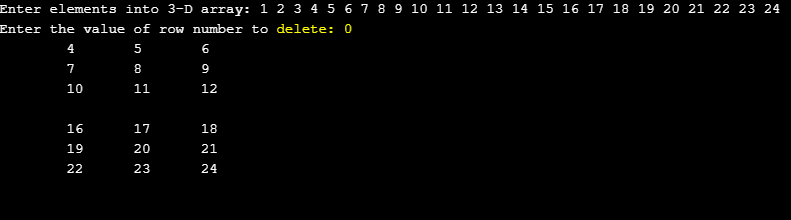

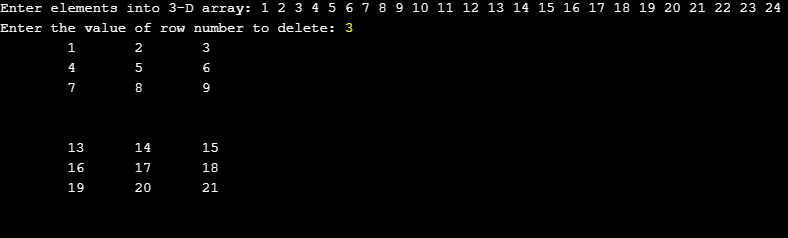

The output is as follows:

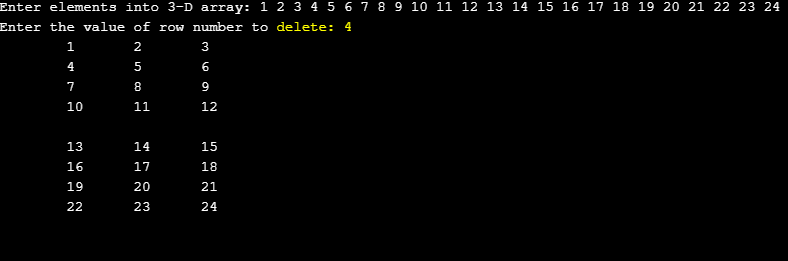

What if, we give the row number outside the array boundary?

It will not find the row to delete and exit the program by printing the whole array.

As already known, we can even declare the values for the number of rows and columns dynamically and write the program accordingly.

Doesn’t this look simple and easy to learn?

As an exercise, can you try in deleting a particular element for the 3d array now?

### Conclusion

In this section, we have learned the basic operations on 3-dimensional arrays.

The 3D array contains many sets of 2-D arrays. As we have seen the chessboard as an example of a 2D array, if we had placed many chess boards together, the 3D array can help us first choose the chessboard you want to play with and then go for the rows and columns of that chessboard.

Try solving the basic operations of the 3d arrays and have fun learning C.
