## Introduction to VLOOKUP Table Array

Vlookup Table Array is used for finding and looking up the required values in the form of a table array. And Table Array is the combination of two or more than two tables which has data and values linked and related to one another. Although headers may be a quite different relation of those data with each other will be seen.

### How to Use VLOOKUP Table Array in Excel?

VLOOKUP Table Array in Excel is very simple and easy. Let’s understand how to use the VLOOKUP Table Array in Excel with some examples.

#### Example #1 – Mapping and Creating Table

The first table has the Owner’s name and the quantity sold by them for the respective product class. And the second table has the range of quantity sold with the incentive which is allotted to different quantity sold range as shown below.

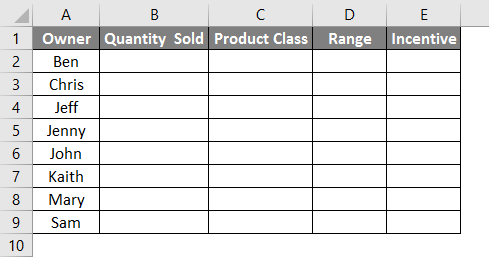

And with the help of this data, we need to map and create another table in the respective column in below table.

Now go to the cell where we need to see the result and select the **Insert Function** option, which is just beside the Formula Bar.

We will get the Insert Function box. Now from there, under Select for a function: window type **ALL** or search **VLOOKUP** as shown below. After that, click on Ok.

After that, we will get the Function Arguments box of Vlookup, as shown below. Select the range from Table 1 and click on Ok once done.

Now drag the applied Vlookup formula to the below cells as shown below.

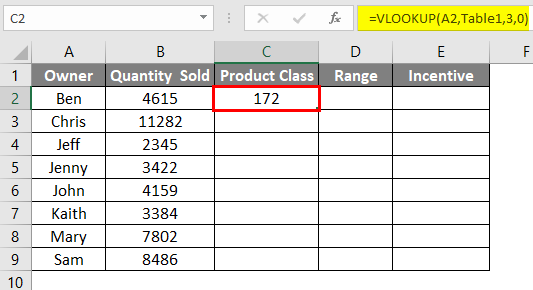

Do the same procedure for the Product class as shown below.

Drag the same formula in cell C2 to cell 9.

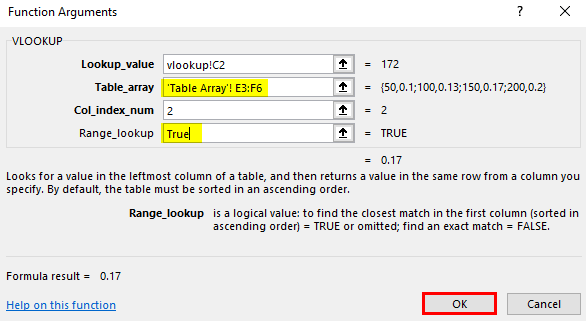

For Range and Incentive columns, we need to map the existing data, which we have just looked up from Table 1 with the data available in Table 2. This process of looking up the values from the second of different sources of data with already mapped data is called **Vlookup Table Array**. For this, go to the first cell of the Range column and click on Insert Function to open the Vlookup Argument Box as shown below.

**Lookup_value**= Lookup value is selected as C2 of the same table where array lookup is being applied.**Table_Array**= Table Array is Table 2, which is shown in the above screenshot.**Col_Index_Num**= It is selected as 2 as the second column of Table 2.**Range_lookup**= Here the Range column of Table 1 has variable data range. For this, select “1” or “TRUE”. This gives not the exact result but the result from the variable data range.

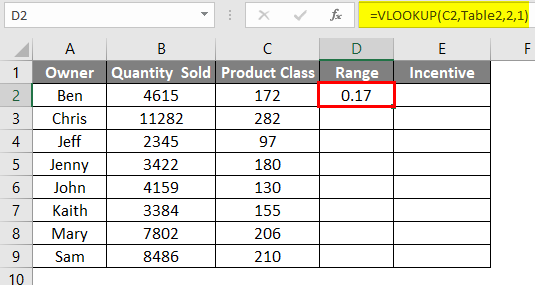

Once done, click on Ok to see the result.

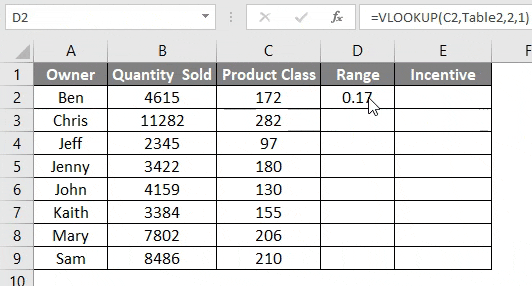

Once done, drag the applied formula to the below respective cells as shown below.

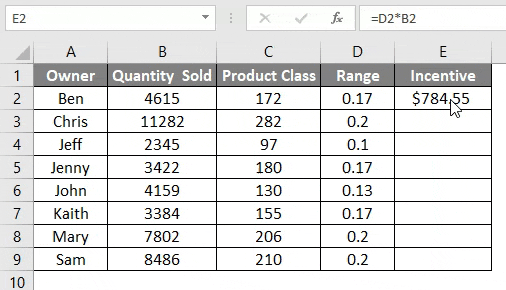

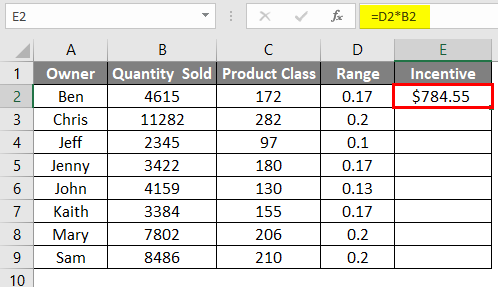

Now for calculating the actual incentive, multiple the Range columns with Quantity Sold. This will show how much the Incentive will be given to that owner for the extra quantity he/she sold. Now drag the applied formula to the respective below cells as shown below.

#### Example #2 – VLOOKUP Table Array

For this, we will consider the same data which we have seen in example 1.

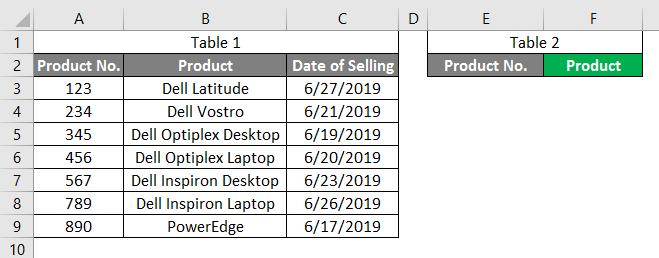

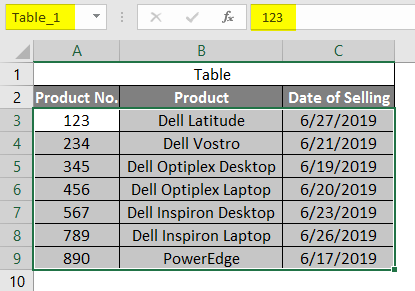

We can name the table as **Table 1** as per heading and the second table like **Table 2** as shown below. This will allow us to see the table name in Vlookup syntax when selecting the table range.

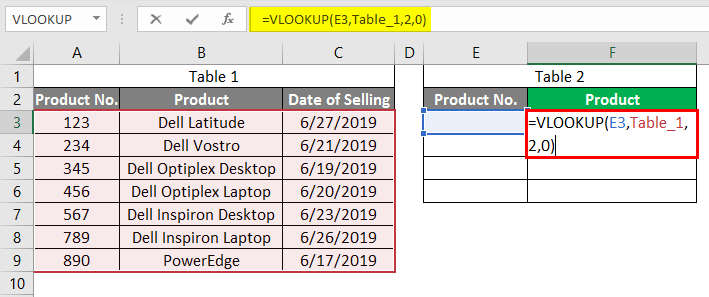

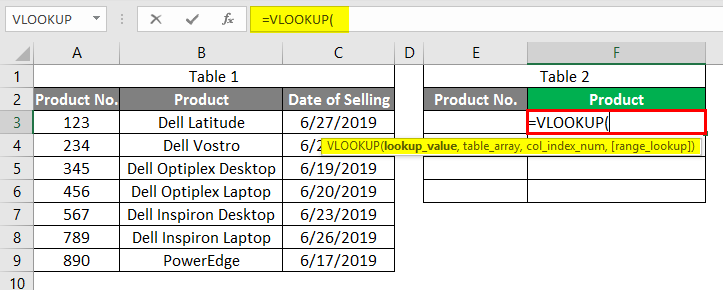

Now go to the cell where we need to see the output for the **product** and type “**=VLOOKUP,**” and select the function as shown below.

Now select Owner Name as **Lookup_Value** as E3, which is our product number column.

**Table_Array** as complete Table_1 data from cell A3 to C9.

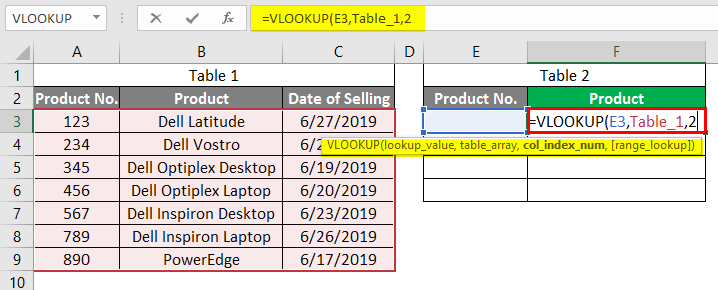

**Col_Index_Num** as 2, which is **Product** in Table_1.

**Range_Lookup** as “0” for the exact value.

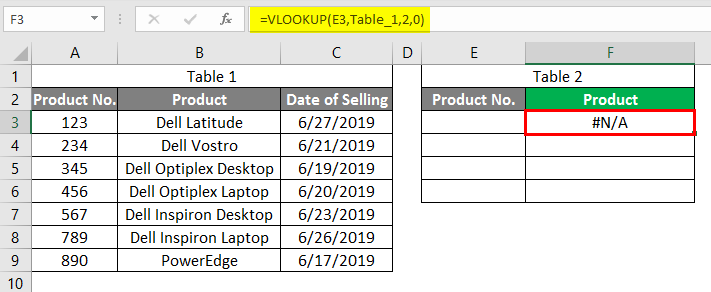

Press Enter key to exit from the syntax.

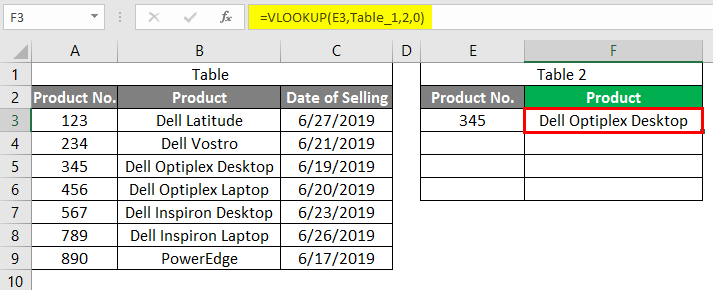

Now in cell E3, insert any product no. Let’s enter product no. 345. We will see Vlookup with Table Array has fetched the value of 345 in cell F3, as shown below.

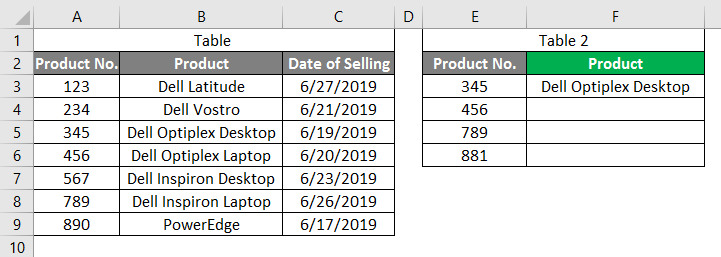

Let’s test if this can be applicable for the rest of the product, no. or not. For that, we have added some product numbers below cell E3, as shown below.

Once done, drag the formula to below respective cells till the product numbers are there. We will see Vlookup has fetched the values for all most all the product numbers in column F. But cell E6 has shown error #N/A, which means that it doesn’t have any value related to product number 881 in **Table 1.**

### Pros & Cons of Vlookup Table Array

- Data from different tables that are liked and related to each other can be mapped with a single table.
- Example 2 is easy and simple to use.
- Naming the table before applying the formula makes syntax small.
- We can use more of any number of table arrays for Vlookup.
- It does not make any sense to use a Vlookup table array where tables are not related to each other.

### Things to Remember

- It is recommended to use Vlookup Table Array where tables are co-related with each other in terms of data.
- For the Table Array table, always use the reference of that lookup value related to the Array Table.
- Table Array should be more than 2 tables.
