Introduction to B+ Tree in Data Structure

B+ Tree in Data Structure is an N-array tree in which a node has multiple children. Its components are root, internal nodes, and leaves. It allows very efficient insertion and deletion operation. Though a complex concept, It is a highly effective data structure for optimizing processing performance. It is quite useful in situations that involve large datasets where processing speed is very important.

Visual Representation of B+ Tree in Data Structure

Below is the visual representation:

Start Your Free Data Science Course

Hadoop, Data Science, Statistics & others

Visual Representation of B+ Tree

Implementation of B+ Tree

Below is the code:

Code:

#include<stdio.h>
#include<conio.h>
#define Macro 4
struct node
{
int n;
int keys[Macro - 1];
struct node *p[Macro];
}*root=NULL;
enum KeyStatus { dupl,SearchFailure,Success,insrit,LessKeys };
void insert(int x);
void display(struct node *root,int);
void delete(int x);
enum KeyStatus ins(struct node *r, int x, int* y, struct node** u);
int searchPos(int x,int *key_arr, int n);
enum KeyStatus del(struct node *r, int x);
void main()
{
int k;
int op;
for(;;)
{
printf("\n1.Insert");
printf("\n2.Delete");
printf("\n3.Display");
printf("\n4.Quit");
printf("\nEnter the option : ");
scanf("%d",&op);
switch(op)
{
case 1:
printf("\nEnter the element : ");
scanf("%d",&k);
insert(k);
break;
case 2:
printf("\nEnter the element : ");
scanf("%d",&k);
delete(k);
break;
case 3:
printf("\nB+ tree is :\n");
display(root,0);
break;
case 4:
exit(1);
default:
printf("\nInvalid Option.");
break;
}
}
}
void insert(int k)
{
struct node *newnode;
int upK;
enum KeyStatus val;
val = ins(root, k, &upK, &newnode);
if (val == dupl)
printf("\nElement already present.");
if (val == insrit)
{
struct node *uproot = root;
root=malloc(sizeof(struct node));
root -> n = 1;
root -> keys[0] = upK;
root -> p[0] = uproot;
root->p[1] = newnode;
}
}
enum KeyStatus ins(struct node *ptr, int k, int *upK,struct node **newnode)
{
struct node *nptr, *lptr;
int pos, i, n,splitPos;
int nK, lK;
enum KeyStatus val;
if (ptr == NULL)
{
*newnode = NULL;
*upK = k;
return insrit;
}
n = ptr -> n;
pos = searchPos(k, ptr->keys, n);
if (pos < n && k == ptr -> keys[pos])
return dupl;
val = ins(ptr->p[pos], k, &nK, &nptr);
if (val != insrit)
return val;
if (n < Macro - 1)
{
pos = searchPos(nK, ptr->keys, n);
for (i=n; i>pos; i--)
{
ptr -> keys[i] = ptr -> keys[i-1];
ptr -> p[i+1] = ptr -> p[i];
}
ptr -> keys[pos] = nK;
ptr -> p[pos+1] = nptr;
++ptr -> n;
return Success;
}
if (pos == Macro - 1)
{
lK = nK;
lptr = nptr;
}
else
{
lK = ptr -> keys[Macro-2];
lptr = ptr -> p[Macro-1];
for (i = Macro - 2; i > pos; i--)
{
ptr->keys[i] = ptr->keys[i-1];
ptr->p[i+1] = ptr->p[i];
}
ptr -> keys[pos] = nK;
ptr -> p[pos+1] = nptr;
}
splitPos = (Macro - 1)/2;
(*upK) = ptr->keys[splitPos];
(*newnode)=malloc(sizeof(struct node));
ptr -> n = splitPos;
(*newnode)->n = Macro - 1 - splitPos;
for (i=0; i < (*newnode)->n; i++)
{
(*newnode)->p[i] = ptr->p[i + splitPos + 1];
if(i < (*newnode)->n - 1)
(*newnode)->keys[i] = ptr->keys[i + splitPos + 1];
else
(*newnode)->keys[i] = lK;
}
(*newnode)->p[(*newnode)->n] = lptr;
return insert;
}
void display(struct node *ptr, int bl)
{
if (ptr)
{
int i;
for(i=1;i<=bl;i++)
printf(" ");
for (i=0; i < ptr->n; i++)
printf("%d ",ptr->keys[i]);
printf("\n");
for (i=0; i <= ptr->n; i++)
display(ptr->p[i], bl + 10);
}
}
int searchPos(int k, int *k_arr, int n)
{
int pos = 0;
while (pos < n && k > k_arr[pos])
pos++;
return pos;
}
void delete(int key)
{
struct node *uproot;
enum KeyStatus value;
value = del(root,key);
switch (value)
{
case SearchFailure:
printf("Key %d is not available\n",key);
break;
case LessKeys:
uproot = root;
root = root->p[0];
free(uproot);
break;
}
}
enum KeyStatus del(struct node *ptr, int k)
{
int pos, i, piv, n ,min;
int *k_arr;
enum KeyStatus val;
struct node **p,*lptr,*rptr;
if (ptr == NULL)
return SearchFailure;
n = ptr -> n;
k_arr = ptr -> keys;
p = ptr->p;
min = (Macro - 1)/2;/*Minimum number of keys*/
pos = searchPos(k, k_arr, n);
if (p[0] == NULL)
{
if (pos == n || k < k_arr[pos])
return SearchFailure;
for (i=pos+1; i < n; i++)
{
k_arr[i-1] = k_arr[i];
p[i] = p[i+1];
}
return --ptr->n >= (ptr==root ? 1 : min) ? Success : LessKeys;
}
if (pos < n && k == k_arr[pos])
{
struct node *qp = p[pos], *qp1;
int nkey;
for(;;)
{
nkey = qp->n;
qp1 = qp->p[nkey];
if (qp1 == NULL)
break;
qp = qp1;
}
k_arr[pos] = qp -> keys[nkey-1];
qp -> keys[nkey - 1] = k;
}
val = del(p[pos], k);
if (val != LessKeys)
return val;
if (pos > 0 && p[pos-1]->n > min)
{
piv = pos - 1; /*pivot for left and right node*/
lptr = p[piv];
rptr = p[pos];
rptr -> p[rptr->n + 1] = rptr->p[rptr->n];
for (i=rptr->n; i>0; i--)
{
rptr->keys[i] = rptr->keys[i-1];
rptr->p[i] = rptr->p[i-1];
}
rptr->n++;
rptr->keys[0] = k_arr[piv];
rptr->p[0] = lptr->p[lptr->n];
k_arr[piv] = lptr->keys[--lptr->n];
return Success;
}
if (pos > min)
{
piv = pos; lptr = p[piv];
rptr = p[piv+1];
lptr->keys[lptr->n] = k_arr[piv];
lptr->p[lptr->n + 1] = rptr->p[0];
k_arr[piv] = rptr->keys[0];
lptr->n++;
rptr->n--;
for (i=0; i < rptr->n; i++)
{
rptr->keys[i] = rptr->keys[i+1];
rptr->p[i] = rptr->p[i+1];
}
rptr->p[rptr->n] = rptr->p[rptr->n + 1];
return Success;
}
if(pos == n)
piv = pos-1;
else
piv = pos;
lptr = p[piv];
rptr = p[piv+1];
lptr->keys[lptr->n] = k_arr[piv];
lptr->p[lptr->n + 1] = rptr->p[0];
for (i=0; i < rptr->n; i++)
{
lptr->keys[lptr->n + 1 + i] = rptr->keys[i];
lptr->p[lptr->n + 2 + i] = rptr->p[i+1];
}
lptr->n = lptr->n + rptr->n +1;
free(rptr);
for (i=pos+1; i < n; i++)
{
k_arr[i-1] = k_arr[i];
p[i] = p[i+1];
}
return --ptr->n >= (ptr == root ? 1 : min) ? Success : LessKeys;
}

Output:

Output for Insert Operation:

We inserted elements one-by-one. Enter the proper option.

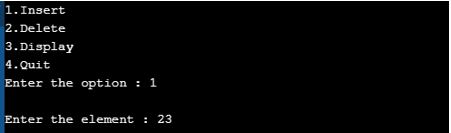

1. The first element passed into the tree is 23.

B+ Tree in Data Structure1

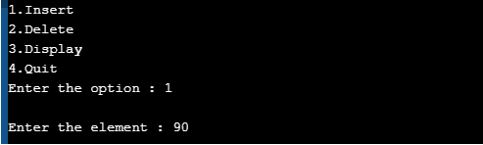

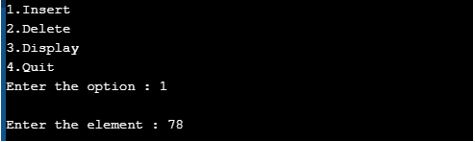

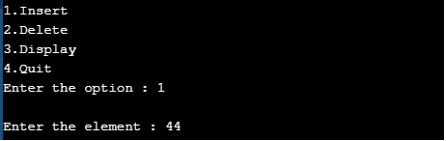

2. Similarly, we passed 44, 78, and 90, as shown by the following three screenshots.

Value Passed

B+ Tree in Data Structure3

B+ Tree in Data Structure4

Output for Delete Operation:

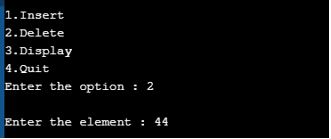

Now, let’s delete an element. We chose 44, as shown below.

delete element

Output for Display Operation:

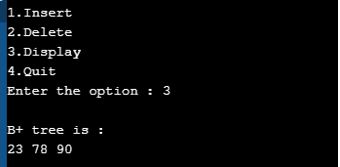

Let’s display the tree now, as shown below.

display tree

Advantages of B+ Tree

  • It offers a very effective mechanism to traverse through the data. It facilitates range as well as partial retrieval.
  • It can be of any size and based on the number of records, its size changes.
