Definition of Azure GPU
Azure GPU are specialized virtual machines that are available with many variants of fractional types GPU, single or multiple GPU availabilities with a lot of intensive calculation, graphics, and workloads. There are variants like NCv3 which is mostly used for high computation that is powerful in nature and is used with technologies like Artificial Intelligence featured for NVIDIA tesla and many more network and storage-related issues. It does help in modifying Virtual machines having computation and azure portal with power shells that support a lot of other templates as well. There are other ways to install other azure plugins as well.
What is azure GPU?
As mentioned in the definition Azure are certain specialized types of Virtual machines that have some special and powerful computation powers that can also be manipulated in a lot of ways. In turn, these machines have a lot of orchestration capabilities and privileges. It also helps in leveraging a lot of networking and computation with components having a global scale platform including cloud architecture.
How to deliver a GPU?
A GPU which is having a flavor of Windows Virtual Desktop is much in trend which is adopted by most of the workspaces. Let suppose if the customer is demanding to work in a multimedia related application then there must be a perfect setup for its working and implementation. Within Microsoft Azure it is easy to spin up a virtual VM with Windows which is as follows:
– Azure-related account is needed for which certain subscriptions are needed to be made with some of the quota’s checks.
– Windows Virtual Host Desktop is needed with a pool of powered VMS is needed to be deployed.
– Some extensions and plugins are needed to be installed as per requirement.
– GPU acceleration, configuration, and app rendering acceleration with frame encoding is a must.
– Test the entire scenario with results.
Azure GPU workstations
– It is the prime need of most manufacturers and workplaces to get modern and flexible infrastructure that will have more efficient and effective ways for reducing time and increasing feasibility.
– Customers work in different environments and zones with a lot of complex flows and workloads which require a defined and streamlined environment to narrow down the hustle that they face at the time of implementation.
– For the above scenario some powerful and high computational systems are required for the environment and overall usage.
– Remote users, contractors, and other resources who also have major responsibilities as part of review and access can also work with this Azure GPU workstation which will give them the complete feel of a virtual desktop with services.
– As the company grows the need for accessibility and versatility with workstations, cloud desktops and cloud solution applications get increased.
– Some of the manufactures across the globe create and maintain some high and powerful work spots leveraging all the special features of software services starting from ESRI, Autodesk, Siemens, CAD, PWC, etc. They help in making the cloud definition add feathers with its features.
Step by Step GPU Explain
GPU is a parallel execution whereas CPU is a serial execution therefore the graphics to maintain overall GPU computation involves certain steps and working patterns:

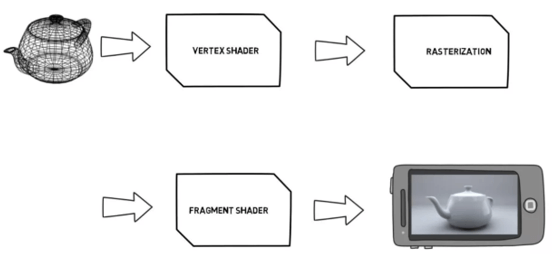

Let’s take an example of a scenario where the image needs to be designed and fabricated in an enhanced way using an android so there the GPU will be needing a vertex shader, fragment shader, and rasterization technique for enhancement and adding an edge to the image or the graphics that is fed as an input.
Link for the image: https://cdn57.androidauthority.net/wp-content/uploads/2016/05/3d-rendering-pipeline-1200×675.jpg.webp

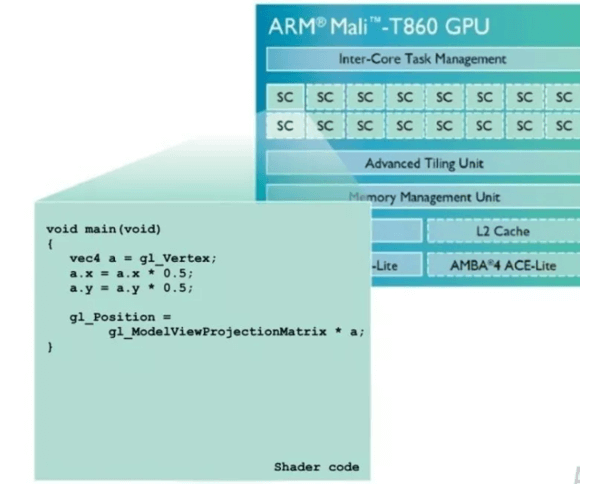

- Both the shaders mentioned have different roles and requirements like vertex shader is primarily used to transform 3D model data into a position where the 3D world has a transformation with textures of light, pixel, and other things as well.
Link for the image: https://cdn57.androidauthority.net/wp-content/uploads/2016/05/ARM-Mali-T860-with-shader-code-inset-16×9-720p-1200×675.jpg.webp
- Each vertex present within the shader code has a mapping from the created GPU where each vertex is handled independently from other vertexes which symbolizes the fact that shaders can be made run in parallel execution with GPU in accordance with it.
- Most of the android GPU comprises of shader core to utilize and make all the functioning perform in a proper manner.
- The ARM Mali GPU comprises Inter core Task management which takes care of major formulation and manipulation with shader code.
Link for the image: https://cdn57.androidauthority.net/wp-content/uploads/2015/10/ARM-Premium-Mobile-Application-with-Fully-Coherent-GPU.jpg.webp

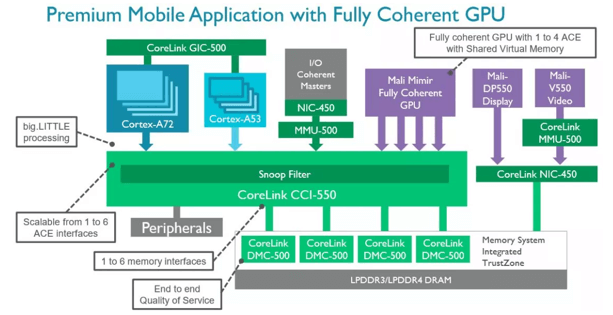

- This screenshot explains the release and working of Corelink CCI-550 which is mostly released by ARM for the latest SoC product.
- The main role of the Corelink CCI product is to interconnect CPU, GPU. Memory and the main memory with various other memory caches together.
- It helps in sharing memory with all kinds of memory caches with a lot of other new components incorporated namely unified shaders and Vulkan.
- It too helps in making all the Fragments processors and vertex processors work properly in unison with each other.
- Inside the entire GPU, the shader core is the master which plays a pivotal role to make the Core Link CCI work with other components of the entire architecture.
- Developers or Engineers working with 3D graphics and designing fast and powerful gaming applications must require both vertex and pixel shaders respectively for its working.
- It too needs GPU to work in parallel with all the latest technologies in today’s era.
Azure GPU benefits
Since GPU works in parallelism it works opposite to CPU which has a serialization pattern within it. Therefore, GPU provides a lot of benefits which are as follows:
- It helps corporates and companies to build an effective infrastructure with virtual desktops and other facilities as well.
- It too helps in making GPU processing power to masses with a lot of benefits and efficiency.
Azure GPU can gel with a lot of the latest technologies involving machine learning, IoT, cloud computing, and many more. It helps in making powerful computational patterns with designs that in turn make all the designing, graphics, and 3D imaging and experience. Azure has truly added a lot of advantages in terms of infrastructure management.
This is a guide to Azure GPU. Here we discuss the definition, What is azure GPU, How to deliver a GPU, workstation. You may also have a look at the following articles to learn more –
