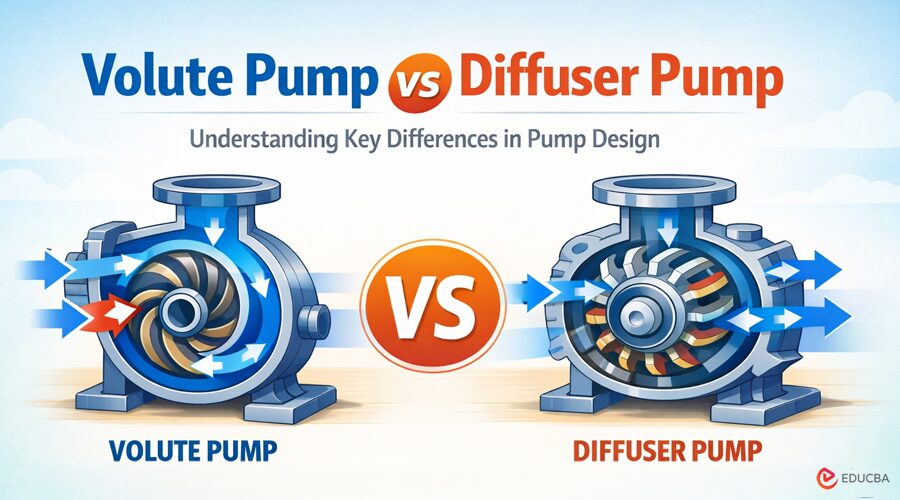

Volute Pump vs Diffuser Pump: Overview
Centrifugal pumps are used throughout industrial systems to move liquids efficiently through pipelines, treatment systems, and manufacturing processes.
While the basic principle behind centrifugal pumps remains the same (a rotating impeller increases the fluid’s velocity and converts that velocity into pressure), the pump’s internal design can vary significantly.
Two of the most common designs are volute pumps and diffuser pumps. Both perform the same general function, but they convert velocity to pressure in different ways.
Understanding Volute Pump vs Diffuser Pump designs can help engineers, maintenance teams, and operators choose the pump configuration best suited to their system.
How Centrifugal Pumps Generate Pressure?
In any centrifugal pump, the impeller spins rapidly, pushing liquid outward from the pump’s center. This motion increases the fluid’s velocity, and the pump then converts that velocity into pressure before the liquid moves through the discharge pipe.
The method used to slow the fluid and convert that velocity into pressure is what separates Volute Pump vs Diffuser Pump configurations. Each design manages this process differently, leading to differences in efficiency, stability, and suitability for application.
What Defines a Volute Pump?
A volute pump uses a spiral-shaped casing known as a volute to manage the flow of liquid leaving the impeller. As the fluid exits the impeller, it enters the volute chamber, where the gradually expanding passage slows the fluid and converts its velocity into pressure.
Engineers design the volute shape so the cross-sectional area increases as the liquid moves around the casing. This expansion reduces fluid speed and helps build discharge pressure.
In the Volute Pump vs Diffuser Pump comparison, volute pumps are valued for their relatively simple design and robust performance in many general-purpose pumping applications.
What Defines a Diffuser Pump?
Diffuser pumps take a different approach. Instead of relying solely on a spiral casing, they use a series of stationary vanes surrounding the impeller. These vanes form passages that guide the fluid and gradually reduce its velocity as it moves outward. Engineers carefully shape the diffuser vanes to direct the flow and control the pressure conversion process more precisely.
Because of this structured flow path, diffuser pumps often achieve higher efficiency under the right operating conditions.
In the Volute Pump vs Diffuser Pump design comparison, diffuser pumps often achieve higher efficiency under the right operating conditions because the flow path is more controlled.
Volute Pump vs Diffuser Pump
Understanding the differences between volute pumps and diffuser pumps helps engineers choose the most efficient centrifugal pump design for specific pressure, flow, and system requirements.
Differences in Flow Control
One of the most noticeable distinctions in the Volute Pump vs Diffuser Pump comparison is how each design manages fluid flow after it leaves the impeller.
In a volute pump, the flow expands freely within the spiral casing before exiting the pump. In contrast, diffuser pumps guide the liquid through controlled passages created by the diffuser vanes. This additional guidance helps stabilize the flow and reduce turbulence.
Because of this difference, diffuser pumps often provide smoother hydraulic performance, particularly in systems that demand precise pressure control.
Efficiency Considerations
Diffuser pumps are often designed for higher hydraulic efficiency because the diffuser vanes direct the fluid more precisely. The guided flow reduces energy losses that can occur when fluid expands freely in a larger chamber. Volute pumps, while sometimes slightly less efficient in ideal conditions, remain highly effective in many real-world applications. Their simpler internal structure can make them more forgiving under varying operating conditions.
Mechanical Simplicity Versus Precision
Volute pumps typically have fewer internal components than diffuser pumps. This simpler construction can make them easier to manufacture, maintain, and repair. Diffuser pumps, on the other hand, involve more precise internal geometry due to the diffuser vanes and associated flow passages. Although this complexity can improve hydraulic performance, it may also require more careful design and manufacturing.
Applications Where Each Pump Excels
Engineers and operators widely use volute pumps in applications where durability and versatility matter most. Industrial water systems, general fluid transfer, irrigation, and many process operations rely on volute designs because they perform reliably across a range of operating conditions. Their straightforward design also allows them to handle moderate variations in flow without significant efficiency losses.
Diffuser pumps often appear in systems that require higher pressure or more controlled hydraulic performance.
Multi-stage pumps, boiler feed systems, and high-pressure industrial applications frequently use diffuser designs. Engineers often prefer diffuser pumps in many Volute Pump vs Diffuser Pump comparisons when systems require precise energy conversion and pressure control.
Choosing the Right Pump Design
Selecting between a volute pump and a diffuser pump involves evaluating the system’s needs. Factors such as required pressure, efficiency goals, maintenance considerations, and operating conditions all influence the decision. Many facilities use both types of pumps in different parts of the system, depending on the specific demands of each process. Understanding the strengths of each design helps ensure the chosen pump operates efficiently and reliably.
Final Thoughts
While volute and diffuser pumps share the same basic centrifugal pumping principle, their internal structures shape how they handle fluid dynamics. Volute pumps offer simplicity and versatility, while diffuser pumps emphasize guided flow and optimized pressure conversion.
Recognizing the differences in Volute Pump vs Diffuser Pump designs helps engineers and operators match the right equipment to the right task. In systems where reliability, efficiency, and performance all matter, choosing the appropriate pump design can make a meaningful difference in long-term operation.
