## Introduction of NumPy fft

The function NumPy.fft()function is used in the Python coding language to enable the system to compute single dimension n-point DFT also known as discrete frontier transformation by utilizing the algorithm for fast frontier transformation. This package provides the basic functions that are necessary for the manipulation of large arrays and make cases that contain both alphanumeric and numeric data. For the utilization of the fast frontier transform function, another package has to be utilized which is the subset of the numpy package, the SciPy package, which is helpful in enabling the scientific functionality to increase the extension of use and calculative measures and utility.

### Syntax and Parameters

Following is the syntax which used to utilize the numpy.fft() while writing codes in the Python programming language:

`numpy * . * fft *. * fft * (* a1 *, * n1 * = * None *, * axis * = * -1 *, * norm * = * None *) *`

**Parameters:**

The following is the parameters used for the numpy.fft() function written in the Python programming language:

Parameters:

**a1:****array_like:**Is used to represent the data that has been entered into the system by the programmer or enter by the user which is the further process with the use of the function**n1****int, optional:**It is used to represent the actual length of the transformed after the array has been processed in the output. The value of n1 is less than the actual length of the tree which has been entered by the user, the input value is then cropped. In case, the length of the array which has been entered by the user is comparatively smaller than the output length, then the input array is provided by the system using 0’s. If the parameter is not specified in the syntax which is being used while writing the code, the length of the value that has been entered along the specified axis is generally used.**axis****int, optional:**The parameter represents the axis of the array over which the fast frontier transformation is to be executed. If the parameter is not specified in the syntax for the code, the last access of the input is used by default**norm****{None, “ortho”}, optional:**This parameter is used to represent the normalisation mode, which is specifically present in the systems that are using the Python version 1.1.1.0 and above. The default value for the parameter is set as None**optional:**The parameter represents the axis of the array over which the fast frontier transformation is to be executed. If the parameter is not specified in the syntax for the code, the last access of the input is used by default**Returns:**This parameter is used to represent the truncated input or the input with no padding. The transformation is executed along the axis which was last specified (under specifically mentioned in the syntax)

### How does the NumPy fft Work Systemically?

The fft function which uses the functionality of the SciPy package works in a way that, it uses the basic data structures that are used in the numpy arrays, in order to create a module that is required for scientific calculations and programming. This package helps in utilizing the functionalities that involve using the functioning of linear algebra and calculus (differentiation and integration), utilize the complexity of differential equations and the dynamic versatility of the signalling processes.

The fft or frontier transform package is utilized in order to convert the various signal into the frequency domain that have been received from the time domain. Additionally, you also allow the user to check the in terms of its frequency and perform additional functions in the frequency domain.

4.5 (6,919 ratings)

View Course

### Example of NumPy fft

An example displaying the used of NumPy.save() in Python:

#### Example #1

`# Python code example for usage of the function Fourier transform using the numpy.fft() method`

import numpy as n1

import matplotlib.pyplot as plotter1

# Let the basal sampling frequency be 100;

Samp_Int1 = 100;

# Let the basal samplingInterval be 1

# The begin time for the time sampling of the process is taken as 0

Begin_Time1 = 0;

# Let the endtime period be 10 seconds

End_Time1 = 100;

# The final frequency being recorded for the signals

Signal_1Frequency = 40;

Signal_2Frequency = 70;

# Time points awarded are

time1 = n1.arange(begin_Time1, end_Time1, samp_Int1);

# Creation of2sinusoidal waves being done

amp1 = n1.sin(2*n1.pi*signal_1Frequency*time1)

amp2 = n1.sin(2*n1.pi*signal_2Frequency*time1)

# Creation of a sub plot being executed

figure1, axis1 = plotter1.subplots(4, 1)

plotter1.subplots_adjust(hspace=1)

# The time domain has a representation for sinusoidal wave 1

axis[0].set_title('Sine wave with a frequency of 4 Hz')

axis[0].plot(time, amplitude1)

axis[0].set_xlabel('Time')

axis[0].set_ylabel('Amplitude')

# Time domain representation for sine wave 2

axis[1].set_title('Sine wave with a frequency of 7 Hz')

axis[1].plot(time, amplitude2)

axis[1].set_xlabel('Time')

axis[1].set_ylabel('Amplitude')

# Add the sine waves

amplitude = amplitude1 + amplitude2

# Time domain representation of the resultant sine wave

axis[2].set_title('Sine wave with multiple frequencies')

axis[2].plot(time, amplitude)

axis[2].set_xlabel('Time')

axis[2].set_ylabel('Amplitude')

# Frequency domain representation

fourierTransform = np.fft.fft(amplitude)/len(amplitude) # Normalize amplitude

fourierTransform = fourierTransform[range(int(len(amplitude)/2))] # Exclude sampling frequency

tpCount = len(amplitude)

values = n1.arange(int(tpCount/2))

time_Period1 = tpCount/samp_Fre1

frequencies1 = values/time_Period1

# Frequency domain representation

Axis1[3].set_title('Fourier transform depicting the frequency components')

Axis1[3].plot1(frequencies1, abs(fourierTransform))

Axis1[3].set_xlabel('Frequency')

Axis1[3].set_ylabel('Amplitude')

plotter1.show()

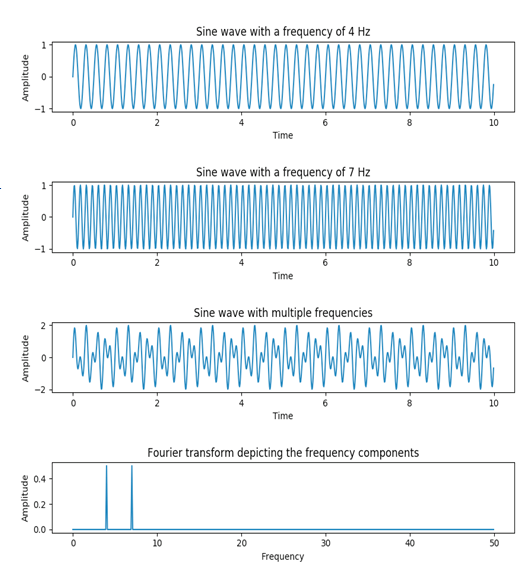

**Output:**

** **

The output that is generated after using the fft() function, the sinusoidal wave which had a frequency of 4 Hz and 7 Hz respectively, were converted into a sine wave with multiple frequencies amalgamated into a single wave. This wave is then transformed into the frequency component through the utilization of the function which represents the wave frequency and amplitude with respect to the parameters for measuring the vitals of the wave in the form of frequency.

### Conclusion

The NumPy.fft() has a multifaceted functionality. The range of an occasion vary from it being used in processing voice Signals and deviant signal processing procedures, it is utilized in the processing of images and also used in processing audio signals. Bike it is one of the most utilized concepts with respect to the digital Signal Processing domain, especially when utilized in the domain of sinusoidal. Both periodic, as well as non- periodic signals, are transformed using the function’s versatile approach for conversion into frequency domain from the time domain.
