Definition of JMeter Distributed Testing
JMeter is an open-source tool used to perform load and performance testing on applications. In JMeter, we can provide the different types of testing; in which distributed testing is one type of testing. Basically in distributed testing, we can conduct the testing on multiple machines to perform the stress testing. We can conduct distributed testing on server-type applications, websites when we try to work with more than one client at the same time. Inside the distributed testing we run the master on JMeter GUI mode and it controls each slave that is associated with the master.
What is JMeter distributed testing?
Circulated load testing is running a test on a few distinct PCs all at once. It makes it conceivable to recreate countless virtual clients and includes creating a great deal of traffic. For that reason, utilizing a solitary PC isn’t sufficient. You can likewise get more reasonable test results with conveyed testing since it reproduces the conduct that is nearer to the one of an actual client.

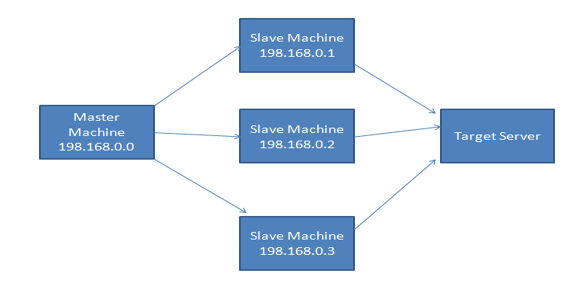

To execute appropriate load testing, you’re expected to follow each progression engaged with it as it straightforwardly influences the cloud example, and afterward, the heap is produced on your APIs. Utilizing the heap testing APIs, you can coordinate your format on the cloud and incorporate deceivability inside your heap generators with the goal that they can be facilitated on any cloud stage. The simple architecture of the distributed system is shown in the following screenshot as follows.
How JMeter distributed testing works?
Considering we want to perform testing on the web-based business website (or any webpage besides), it’s normal that you would anticipate a more significant level of traffic on specific days, similar to Black Sunday for instance. At minutes like these, we want to take our heap tests to a higher level and reproduce bigger quantities of simultaneous clients. Assuming we are running our heap tests locally with Apache JMeter, there are sure constraints to the number of clients you can run, regardless of whether your PC has sufficient CPU and memory. How might we make a situation with more than 1000 simultaneous Whenever we talk about conveying JMeter, we allude to Master-Slave engineering where JMeter utilizes Java RMI [Remote Method Invocation] to collaborate with objects in a disseminated network. Distributed testing empowers having a nearby JMeter (ace) that handles the test execution, along with various distant JMeter occurrences (slaves) that will send the solicitation to our objective server.
Yet, prior to having the option to run JMeter in a conveyed manner, there are a few straightforward advances you should perform. Clients utilizing JMeter? One of the responses is running JMeter in disseminated mode.
Before implementation of distributed testing we must have multiple machines, also we need a JMeter server that is running on each server for that structure we need to execute the following command that is located inside the bin folder as follows.
Then, at that point, through a similar way, yet in the expert framework, find the JMeter.properties record. Alter this record and add the IPs of all the slave frameworks that should be associated with the property remote_hosts. Ensure the expert and the slave frameworks are situated in the equivalent subnet.
Step-by-Step JMeter distributed testing
Now let’s see how we can implement distributed testing in JMeter as follows.
First, we need to start the JMeter server by using the above command. After execution of the above command, we got the following results as shown in the following screenshot.

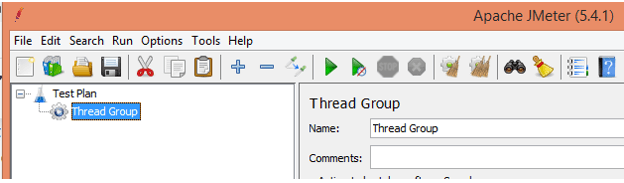

After that, we need to enter the JMeter GUI mode and create a Thread Group as shown in the following screenshot as follows.

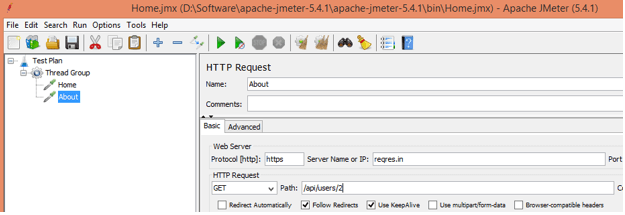

Now add the sampler into the Thread Group, here we added HTTP requests as shown in the following screenshot as follows.

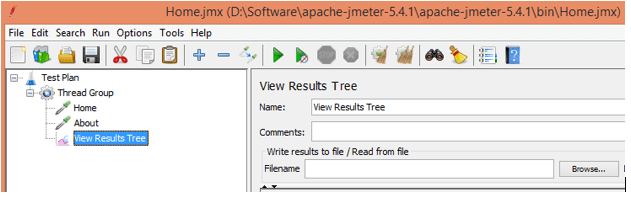

Now we need to add the listener to view the result, here we added the view result tree as shown in the following screenshot as follows.

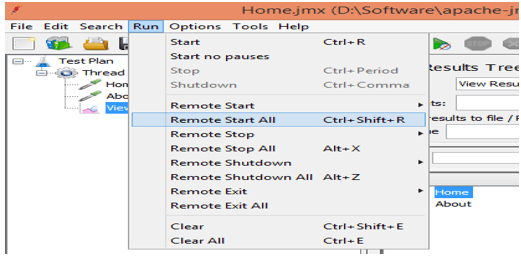

Inside the run menu, we have one command that is Remote Start All as shown in the following screenshot as follows.

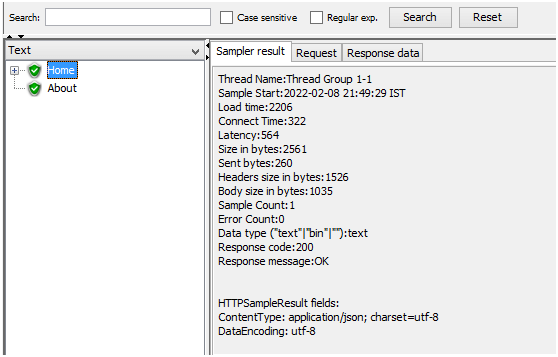

Now save the Test Plan and run it. After execution of the above Test Plan, we will get the following output as shown in the following screenshot as follows.
Remote execution of the above screenshot we can see in the below screenshot as follows.
Behind this execution, each slave machine executed the load testing. Thus, we are accomplishing a bigger number of simultaneous clients, and consequently a higher burden to our objective server.
In this way, to truly appropriate the heap, we need to do it physically. E.g: to arrive at 5,000 simultaneous clients and we have 10 slave frameworks, our test plan should have 1000 clients, so we wind up having 5,000 aggregate.
Another intriguing thing we can do is to add rationale to our test by adding an If Controller. The If Controller permits us to pick a specific stream we need to execute, contingent upon the framework that is executing the test. In this way, unique slave frameworks would be running various pieces of the test.
JMeter distributed testing Configure
Now let’s see how we can configure the distributed testing in JMeter as follows.
First, we must ensure we have a JMeter on each machine.
The firewalls of the machine are turned off.
JMeter can access the target server.
After that we need to configure the Slave machine: On the slave framework, we’ll go to the JMeter/bin registry and execute the JMeter-server.bat record on Windows. Or on the other hand, we can run the JMeter-server record on UNIX.
Now we need to configure the master machine: On the expert framework, we’ll go to the JMeter/bin catalog and alter the remote_hosts property in the JMeter.properties document to add IP addresses (comma-isolated) of the slave frameworks.
We hope from this article you learn more about JMeter distributed testing. From the above article, we have taken in the essential idea of the JMeter distributed testing and we also see the representation and example of the JMeter distributed testing. From this article, we learned how and when we use the JMeter distributed testing.
This is a guide to JMeter Distributed Testing. Here we discuss the definition, What is JMeter distributed testing?, Examples with code implementation. You may also have a look at the following articles to learn more –
