Glow in After Effects

By Ravi KhatriRavi Khatri

Glow in After Effects

Introduction to Glow in After Effects

Adobe After Effects is an animation and video editing software and, in this article, we are going to learn how to create a glow effect. For this purpose, first, we will look at the inbuild glow effect, and then we will create a customized glow effect from various effects and also the use of the plugin.

Steps of Glow in After Effects

Here are the following steps mention below

Start Your Free Design Course

3D animation, modelling, simulation, game development & others

Step #1

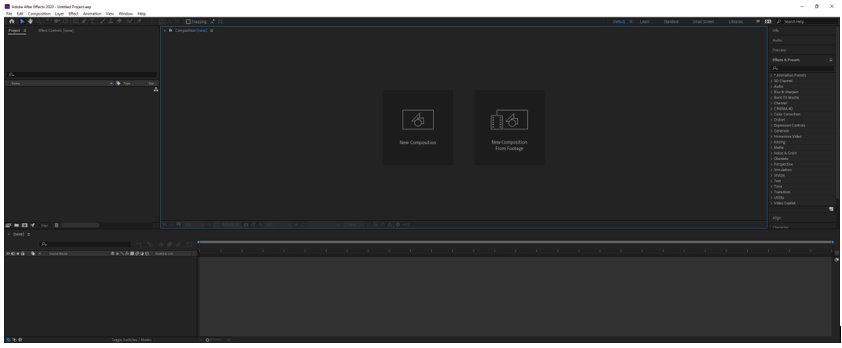

Let us first familiarize ourselves with the interface before starting to get a better understanding. At the top is the menu bar like File, Edit, etc. and each has its own submenu. Next, just below it, we have a tool panel and their properties. On the left side there is project panel that consists of the project files and effects control panel which shows the effects applied on a particular layer. Then there is the composition panel which shows the preview of the animation or video. At the top right, we have various layout presets which will arrange according to the type of work. We can even create our own custom layout. At the right, there are various sections used to edit the video. At the bottom, there is layers and timeline panel which is used to add media and add animation keyframes.

Glow in After Effects output 1

Step #2

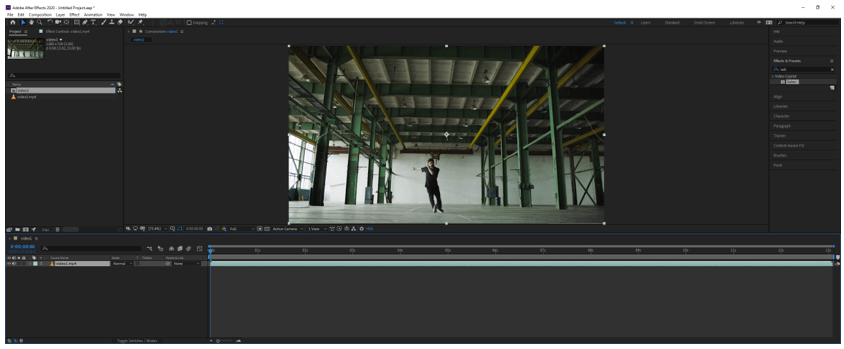

Double click on the Project panel to import the video footage. This is a dance video in which we will add a glow effect.

Glow in After Effects output 2

Step #3

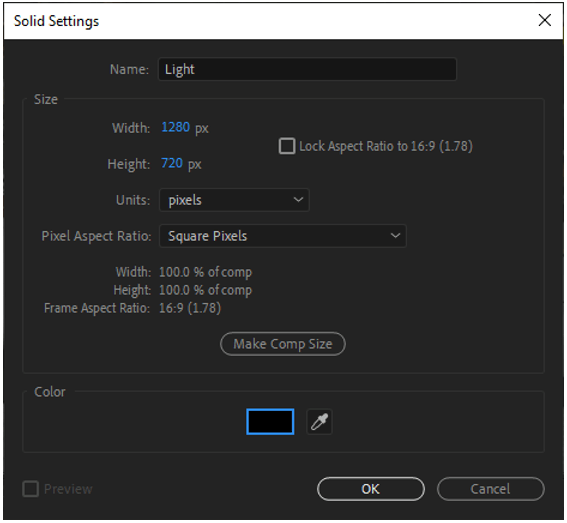

Next, create a solid by right-clicking on layers panel and name it Light and set the color to black.

Glow in After Effects output 3

Now hide the solid layer and double click the video so now we are in layer editing mode as we can see it has its own timeline and changing it will not change the main timeline. Then open the brush panel from Window -> Brush and then select the brush tool or press Ctrl + B. In brush panel we select a soft round 5-pixel brush. Also, open the painted panel which is in Window -> Paint and select the color. Set the mode to Normal, channels to RGBA as we will also get the alpha channel output and duration to a single frame.

Glow in After Effects output 3.2

Step #4

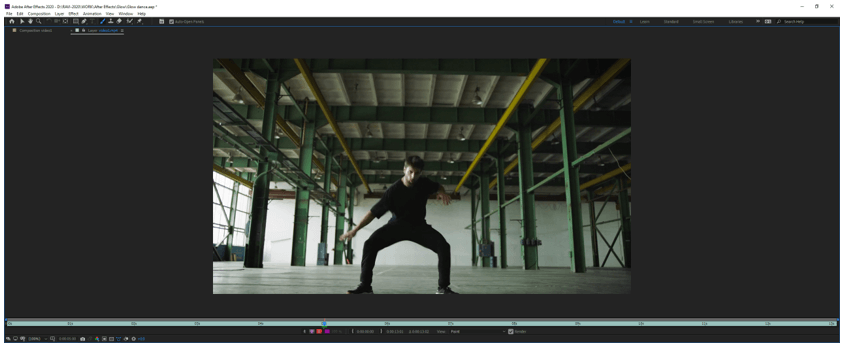

Let’s move the current-time indicator at around 5 seconds mark where we are starting this effect and I have double click to layer panel to make it full screen and in brush dynamics section we have set size and flow to pen pressure as in this example we are using a graphic table. If you do not have a graphic tablet you can create with mouse and in that case, it will not matter to set the dynamics as it will be according to brush settings.

Glow in After Effects output 4

Step #5

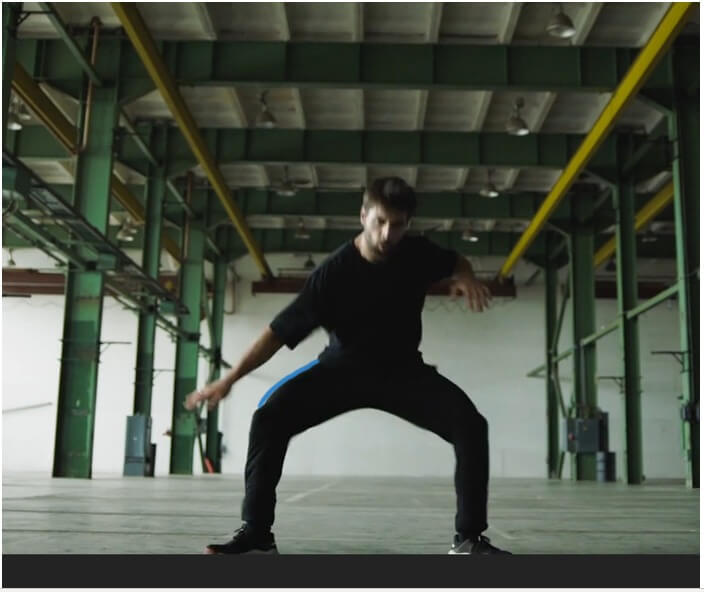

We have created a brushstroke as shown. Now we will create similar strokes around the edges of the person but we will change the frame by pressing Ctrl and right arrow.

Glow in After Effects output 5

Step #6

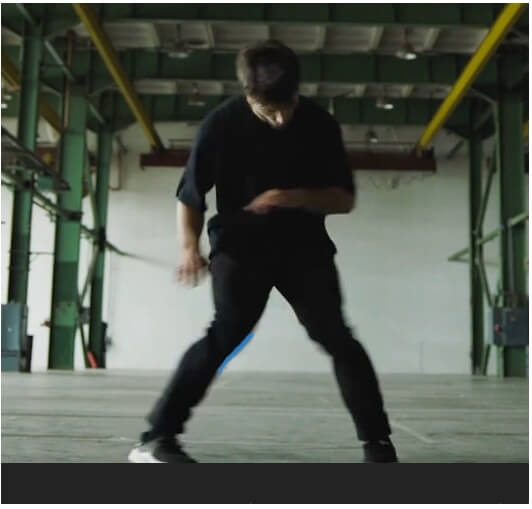

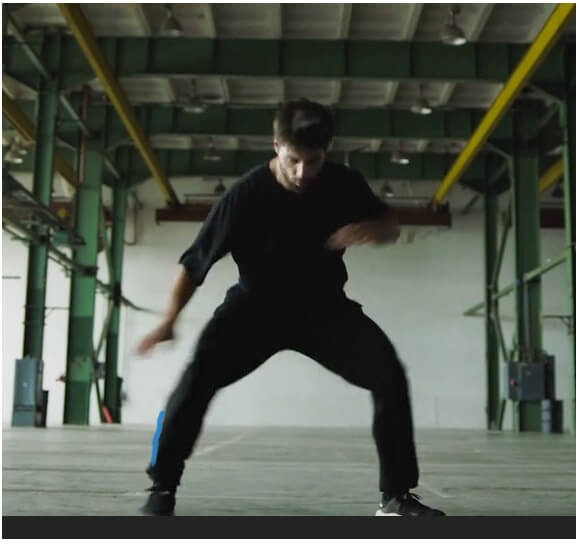

We have created different strokes at the various frame and some of them are as shown.

Glow in After Effects output 6

Glow in After Effects output 6.2

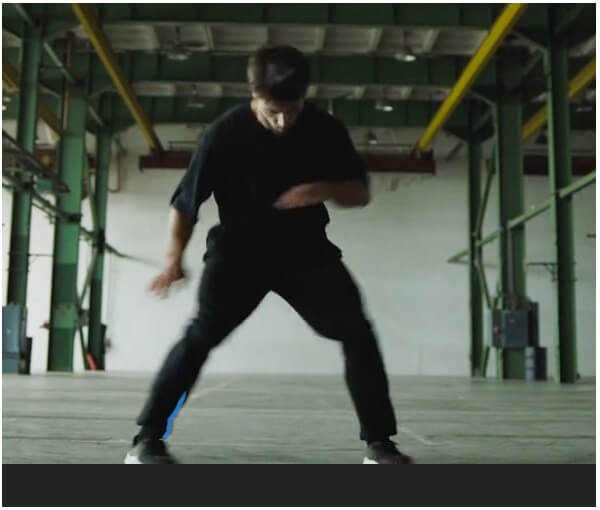

Glow in After Effects output 6.3

Glow in After Effects output 6.4

Step #7

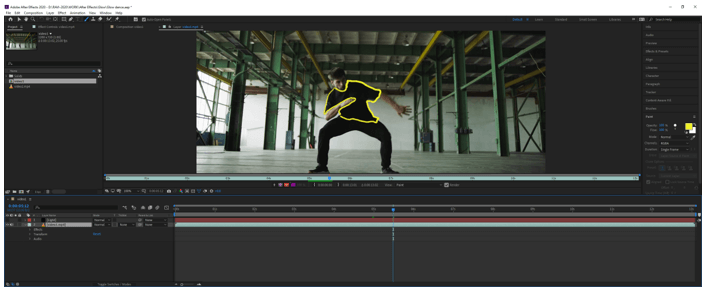

Then we change the color and couple of frames ahead we have created the stroke as shown.

Glow in After Effects output 7

Step #8

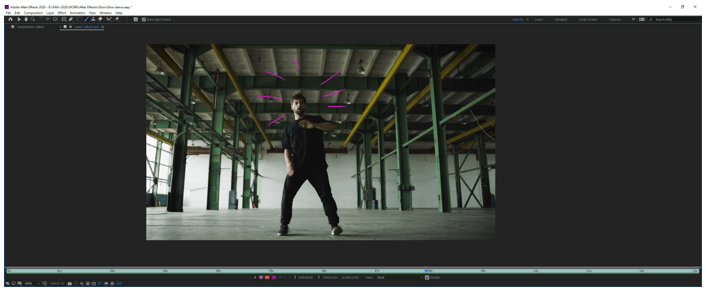

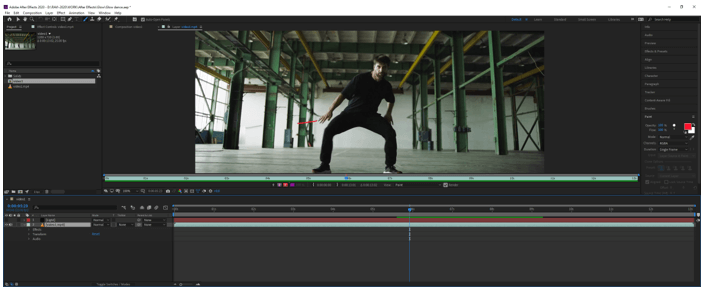

Then we will show the motion of the hands with another color and do it for a couple of frames and similarly, we can do it for entire video.

Glow in After Effects output 8

Glow in After Effects output 8.2

Glow in After Effects output 8.3

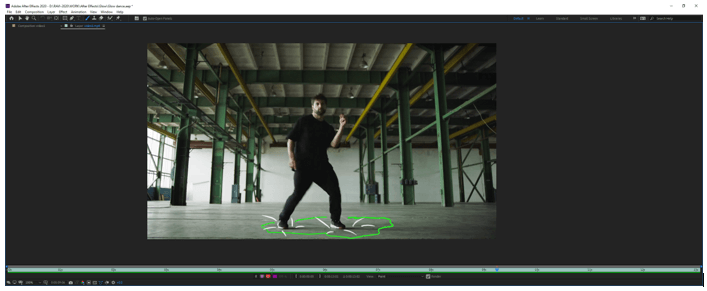

Glow in After Effects output 8.4

Step #9

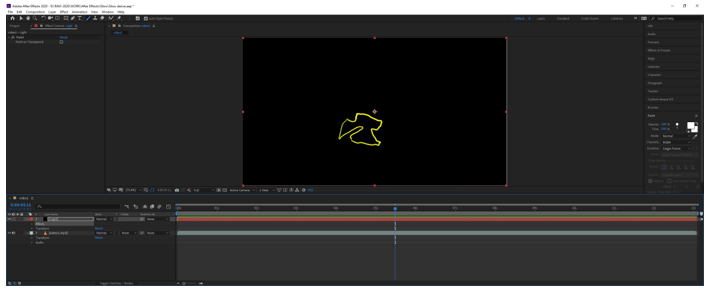

Next, we will exit from layer editing mode­ and in our main comp, we will to the video layer cut the effects from it and paste it in solid layer and make sure that the play head is at the first frame and now we can see that the effects are only on the solid.

Glow in After Effects output 9

Step #10

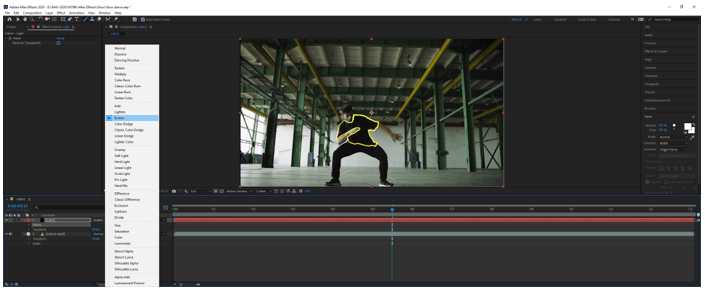

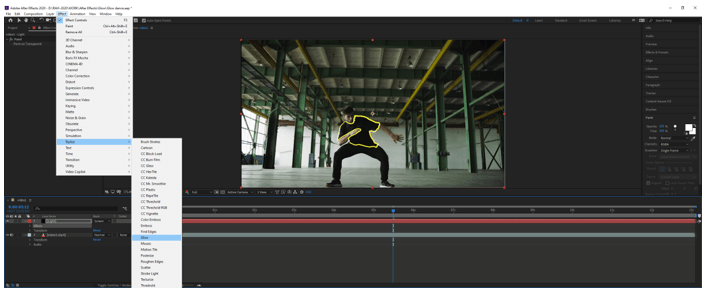

Change the mode of light layer from Normal to Screen and also add an effect from the Effect menu for glow which is in stylize.

Glow in After Effects output 10

Glow in After Effects output 10.2

Step #11

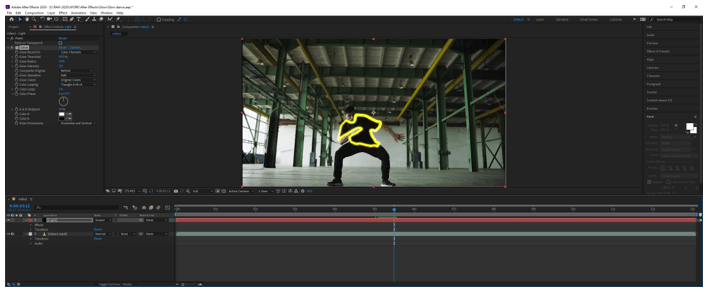

Now let us understand various parameters of glow effect, first, we will change the glow intensity to 3.0, and as we can see the line has become thicker.

Glow in After Effects output 11

Step #12

Next, we change the glow radius to 20.0 which gives a halo effect

Glow in After Effects output 12

Step #13

Next, change the flow dimensions to horizontal to get a different effect.

Glow in After Effects output 13

Step #14

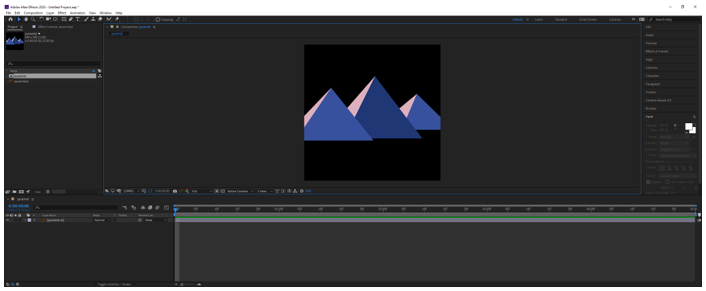

Next, we will look at how we can create a customized glow from effects other than glow for this we will use an illustrator file and create a comp by dragging it in the layers panel.

output 14

Step #15

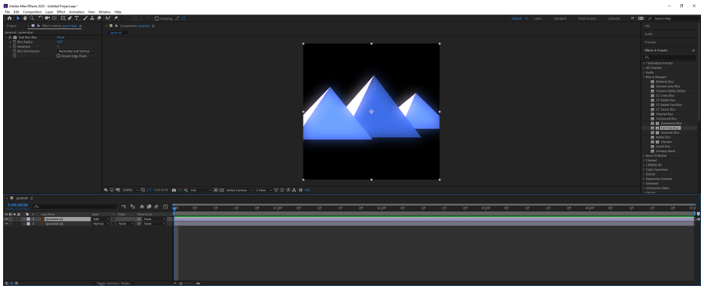

Then duplicate the layer and then from effects and preset panel add Fast Box Blur and set blur radius to 18.0 and iteration to 4 and set the mode to Add which will create a nice glow effect

output 15

Step #16

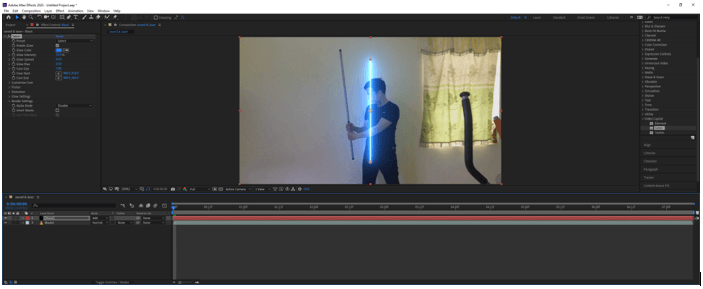

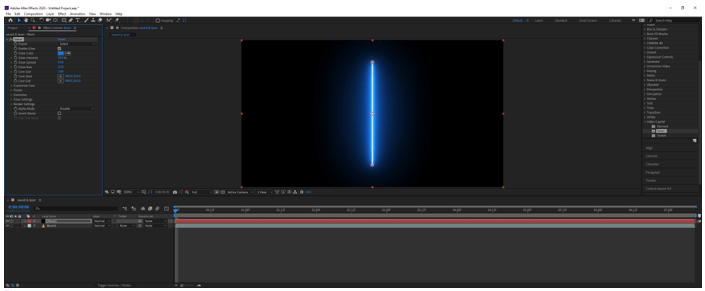

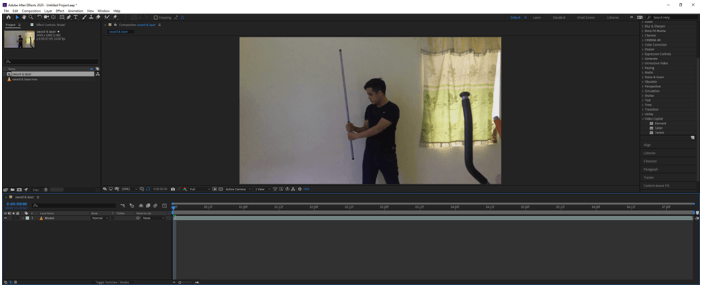

Now we will see the use of a plugin called Saber to create a lightsaber. We have imported the footage and created a comp. Then created a solid and dragged the saber effect on solid and set the mode to add.

output 16

output 16.2

output 16.3

Step #17

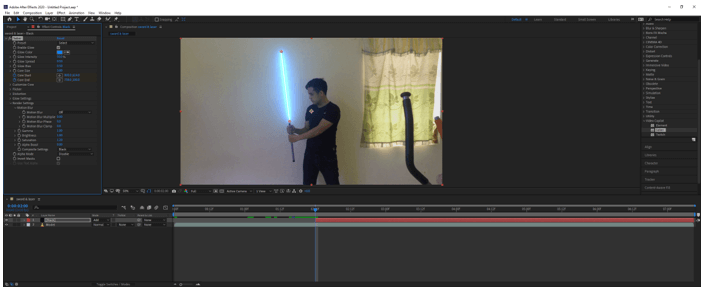

Then align the saber with the stick and set the motion blur to off, set keyframe on core start and end and trim the solid black to around 2 seconds.

output 17

Step #18

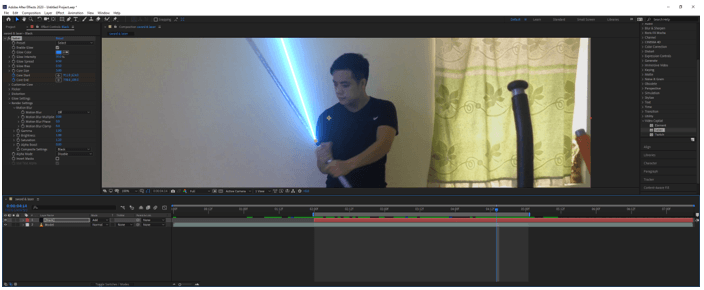

Then frame by frame keep on adjusting the core end to the handle start and reduce the work area.

output 18

Step #19

Similarly, now start adjusting the core start frame by frame

output 19

Step #20

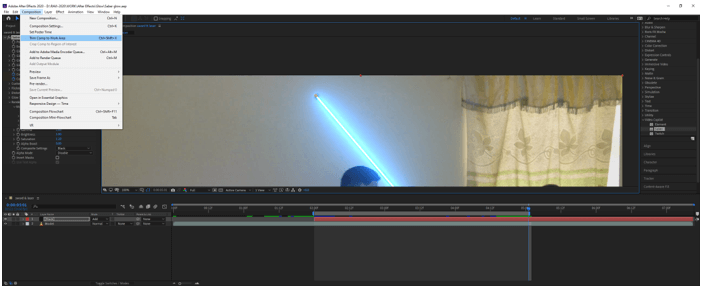

After finishing the frame by frame adjustment of the core start Trim Comp to Work Area from the Composition menu or press Ctrl + Shift + X

output 20

Step #21

Now we can select various preset for saber from the effects and preset panel. We can also change the color.

output 21

Step #22

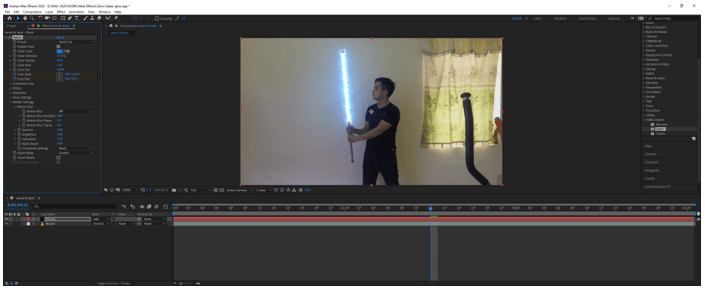

Now let us look at various parameters, for the hardcore effect we have set the intensity to 50%

output 22

Step #23

Then we change the spread to 0.60 which reduces the glow.

output 23

Step #24

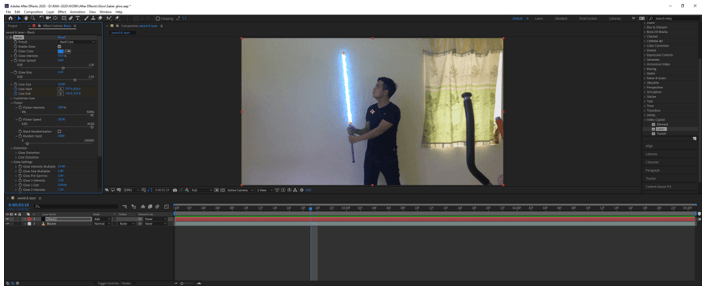

Then we change the flickering intensity and flicker speed which gives a glow with the flicker. Similarly, we can play with other settings to get the needed effect or spell.

output 24

Conclusion

In this article, we have learned not only how to use the default glow effect in the After effects but also seen how to create a customized glow effect. Apart from that, we have seen how to use a plugin to achieve a cool saber glow effect like in Star Wars.
