Cassandra vs MySQL

Difference Between Cassandra vs MySQL

Cassandra vs MySQL in this Data is everything, and with a boom in the amount of data today, choosing the right database management system is all the more important for all businesses. For a world that was dominated by Oracle and SQL Server, there are endless solutions to choose from now. One of the main reasons is the innovation possible due to open source solutions. In this article, I will be talking about two open-source databases. One being Cassandra which has gained a lot of momentum over the past few years. And the other MySQL which is the most common and popular database.

Head to Head Comparison Between Cassandra and MySQL(Infographics)

Below are the Top 6 differences between Cassandra and MySQL:

Key Differences Between Cassandra and MySQL

In this article, we will look at the key differences between these two databases, which will help you figure out which database to use.

Type of database

Cassandra is a NoSQL database. It was developed by the Apache Software Foundation. It was released in 2008. NoSQL(Not only SQL) databases were developed in response to the shortcomings faced by relational database management systems and to meet the demands of modern software development. NoSQL databases support a wide range of data which includes key-value, document and graph formats. It can store both unstructured and semi-structured data. It follows a peer to peer architecture.

MySQL is an open-source Relational Database Management System developed by Oracle which was released in 1995. Compared to Cassandra it is quite an old database. SQL databases support related data stored among different tables. MySQL stores structured data(high degree of an organization). Essentially the relational model consists of tables (relations) that can be interlinked by keys common to multiple tables. It follows a Master/Slave architecture.

1. Scalability

MySQL provides support for vertical scaling. Horizontal scaling is possible with the help of some other approaches like Master/Slave replication and sharding.

Cassandra was developed with the support for both horizontal and vertical scaling. Horizontal scaling is possible due to the cluster node model. Data is partitioned among different nodes in a cluster.

2. Data Model

The main difference that can be seen between MySQL and Cassandra is how the data is modeled.

Let us take an example to show how there is a significant difference between data modeling in these two databases. Consider a portal where a user can comment on a post made by another user, If we wanted to store this information it would be stored in different ways in these two databases.

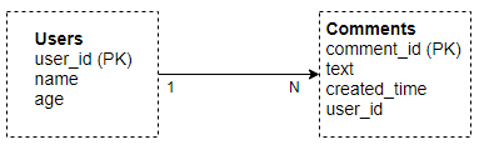

In MySQL, we would have to make two tables with one to many relationships between them like below. As MySQL doesn’t allow unstructured data, for eg. a List or a Map, we do require one to many relationships among these tables.

To fetch data you would typically use JOINS on these tables.

In Cassandra this information can be stored in one table, we can store the comments for each user in the form of a List which would be stored as one single row. Here user_id is the Partition key (using which data would be partitioned among the different nodes) and created_time is the cluster key using which the data would be sorted in a particular node.

3. Read Performance

Now that we have looked at how we can model data in both databases. Let us analyze how our read performance changes from one database to the other.

In MySQL, the query to get the comments made by a user with id say ‘3’ will look something like this,

SELECT * from Users u, Comments c WHERE u.user_id=c.user_id and user_id=3;

Here first finding a user would be of O(log(U)). This is because when you use indexing in MySQL it stores the data in the form of a binary tree, so any time you search for comments made by a user, you are only going to traverse through half of the tree. As there is a one to many relationships between the two, this would now take C*O(log(C)) as we will have to find each comment_id for a particular user_id.

In Cassandra, surprisingly this decreases to just O(1).

Our query will look something like this,

SELECT * from Users WHERE user_id=3;

As we discussed, we would only have to store one row in Cassandra for a particular user_id. It would just require one lookup. In the worst case, it can go up to O(log(U)).

4. Write Performance

In MySQL, every INSERT/UPDATE/DELETE requires a search to be done.  If you want to update a record with a primary key that already exists in the table.

• It will first search for the row
• Then update it

Cassandra, on the other hand, uses an append-only model. Insert and update have no fundamental difference. If we insert a row that has the same primary key as an existing row, the row will be replaced. If you update a row and the primary key does not exist, Cassandra will create that row.

5. Transactions

As any other RDBMS databases, MySQL provides ACID transactions

• Atomicity
• Consistency
• Isolation
• Durability

Whereas, Cassandra has limitations when it comes to providing ACID transactions. To provide high read performance you would see that there is data duplication. One way to achieve consistency would be to tune Cassandra to not allow data duplication but then it kills Cassandra’s trump- Availability. So for systems that are highly based on ACID transactions like banking systems choosing any NoSQL database is a NO.

Let us summarize the key differences we looked at between Cassandra and MySQL. In case you did not read through the article and just want to get the gist of it.

Cassandra and MySQL Comparison Table

Let’s discuss the top comparison between Cassandra and MySQL:

Basis of Comparison	Cassandra	MySQL
Type of database	NoSQL, peer to peer architecture.	RDBS, Master/Slave.
Scalability	Horizontally and Vertically Scalable.	Vertically Scalable, Horizontal scaling possible through Master/Slave replication or sharding.
Data Model	JOINS discouraged with the query-driven model.  Fetches data from one table per query.	Multiple tables, Joins required to query data.
Read Performance	O(1)	Requires reading from multiple tables using JOIN, resulting in O(log(n)).
Write Performance	The append model provides high writing performance.	Writing requires a search first which slows down write performance.
Transaction	ACID properties are not provided, can be tuned to support ACID properties.	Provides ACID transactions.

Conclusion

In this article, we learned about some key differences between Cassandra and MySQL. Most businesses use Cassandra for write-heavy workloads in the field of Data Science whereas MySQL is preferred for all other types of workloads. Hopefully, this would give you the knowledge to choose the right database according to your needs.
