SketchUp 3D Models

Introduction to SketchUp 3D Models

SketchUp 3D models can be understood as creating the 3D structures of 2D drawings by using different types of 3D tools of this software. For creating a 3D model we can use a 2D drawing layout and use that just as a guide of structure. There is a number of things that you have to keep in mind during creating 3D models of different 2D drawings. We can create a 3D model of several elements or components of the different engineering fields and other related industries. The 3D tool which plays a major role in 3D modeling is the Push/Pull tool of this software. So let us discuss how does it work.

How to Create and use 3d Model in SketchUp?

For creating 3d model you need a 2D drawing of your design or have proper dimensions of the structure of which you want to make a 3D model. I will tell you it without 2D drawing and by just following the dimensions of the 3D model. I am going to create a model of the house. So for that first take the Rectangle tool from the tool panel or press the R button of the keyboard as its shortcut key.

Start Your Free Design Course

3D animation, modelling, simulation, game development & others

SketchUp 3D Models 1

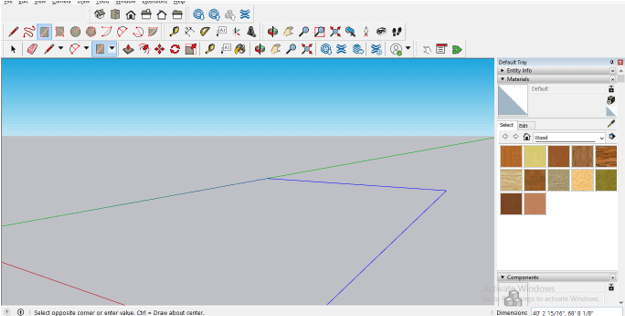

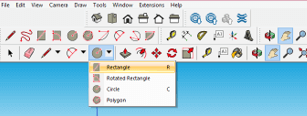

Now draw a layout area on which my house model will be made. I am creating it free-hand dimensions. You can enter specific values of your drawing area here.

SketchUp 3D Models 2

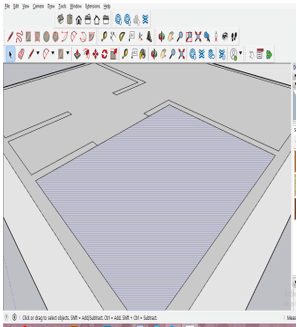

Now, this is the layout plan. I will select it with the help of the Select tool and then take the Offset tool from the tool panel.

SketchUp 3D Models 3

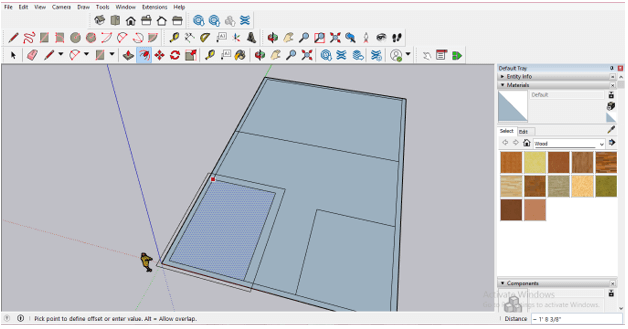

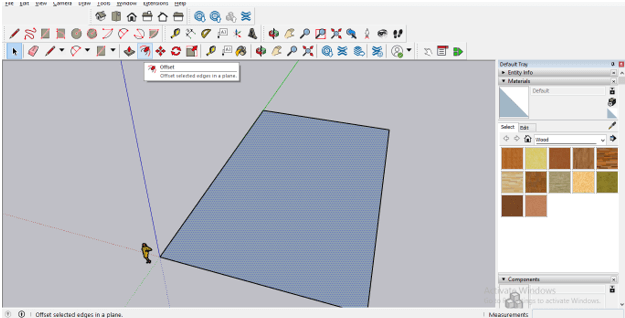

I will offset it a 1’ (feet). For entering this value I will type 1’ in the Distance box (it is at the bottom of the working window). This offset distance will make the thickness of the wall of this house.

SketchUp 3D Models 4

Now let us divide this layout into some sections and you can consider those sections as a room of this house model. So again take the rectangle tool and draw a rectangle from this side of 12’ x 10’. Type this value into the Dimensions box and hit Enter button on the keyboard.

Popular Course in this category
Sale
Maya Training (10 Courses, 7+ Projects)10 Online Courses | 7 Hands-on Projects | 100+ Hours | Verifiable Certificate of Completion | Lifetime Access
4.7 (10,801 ratings)
Course Price

View Course

Related Courses
Photoshop Training (9 Courses, 12+ Projects)After Effects Training (1 Courses, 3+ Projects)

SketchUp 3D Models 5

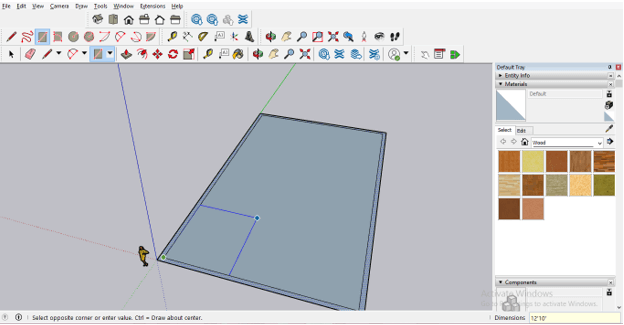

Same as the first section I will draw these two sections more with different dimensions.

SketchUp 3D Models 6

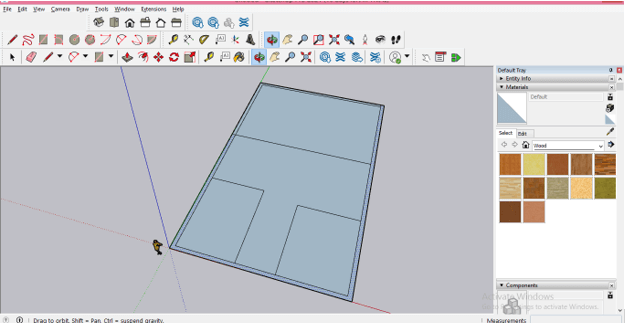

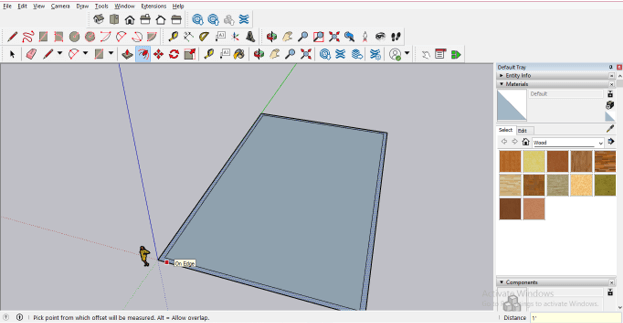

Now same as we offset the layout rectangle for wall thickness we will offset the rectangle of each section. You can offset wall thickness inside of this rectangle.

offset rectangle

Or outside of this rectangle as per the requirement of your 3D model.

3D model

Generally wall thickness of all sections of a house is the same so I will offset this rectangle at the same thickness as the layout wall. For offsetting it select this rectangle with the Select tool and then take the Offset tool from the tool panel. You can use F as the shortcut key of the Offset tool.

offset tool

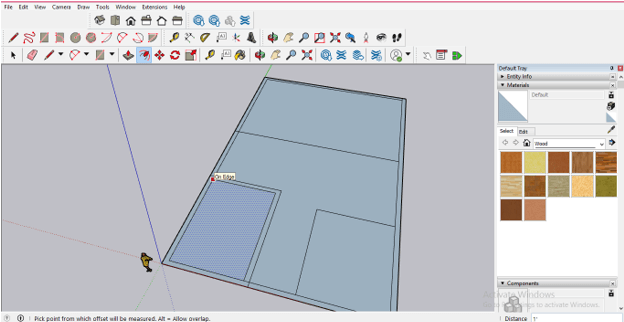

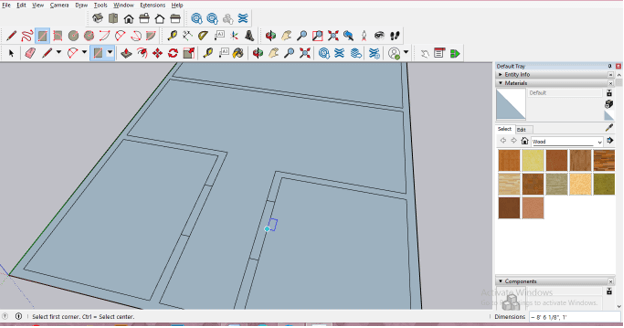

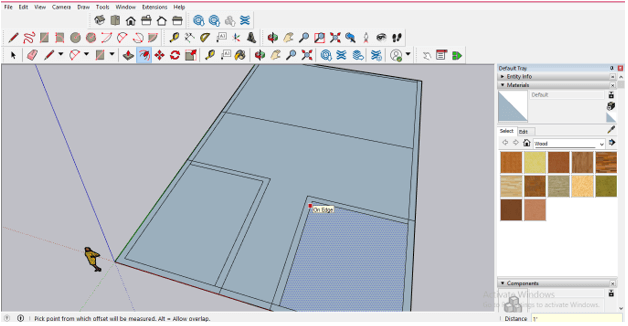

Now select the next rectangular section and switch to the offset tool then make double click on it. Once you make a double click it will offset this rectangle on the previously used dimension.

rectangle dimension

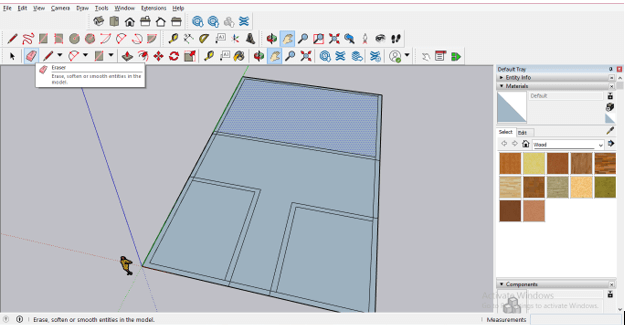

After doing this for all sections, take Erase tool from the tool panel or press the E button of the keyboard for its shortcut.

tool panel

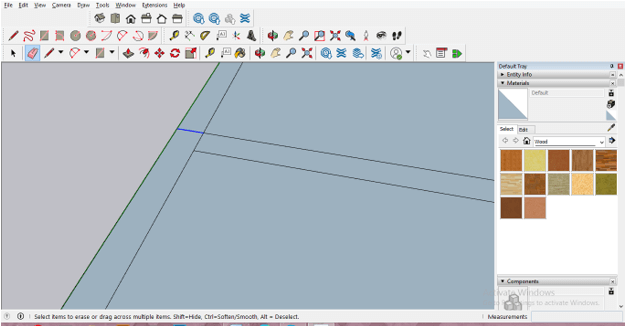

And erase all intersecting lines that are on the layout boundary wall.

Layout wall

I am erasing all these intersecting lines because I want to make it one connecting wall. So after erasing you will get this type of wall layout. Due to connecting wall, you can provide height to this in just one use of the Push/Pull tool.

Pull tool

Now go to the tool panel and take the Push/Pull tool which is a 3D making tool. You can also press the P button as a shortcut key it.

3D making tool

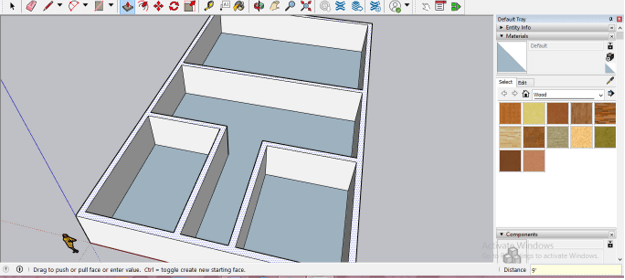

Now after selecting wall boundary with the select tool use the Push/Pull tool on it. If you drag the mouse cursor of this tool in the upward direction then it will give height to your selected area or if you drag the mouse cursor of Push/Pull tool in a downward direction then it will provide height in a negative direction. So I will drag the mouse cursor in an upward direction and enter the value of the height of this wall. I will enter 9’ as the height of this wall.

height

What if you want to create a door? Let us have look at it too. Back to our layout and draw a rectangle like this.

Layout

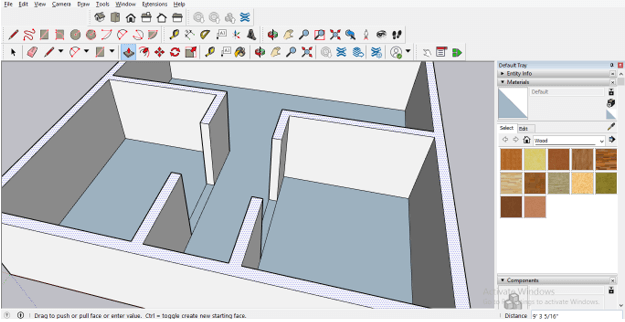

And this time when you pull it like this then there will be a section for the door.

section

But you know there should be a drop wall for creating proper door structure. So I will create a rectangle here like this.

door structure

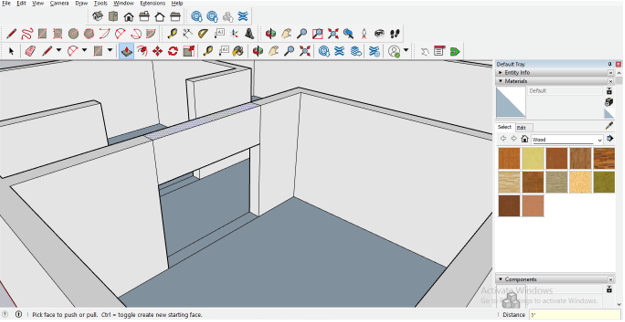

And you can see one I release mouse button it will cover all the area like this.

area

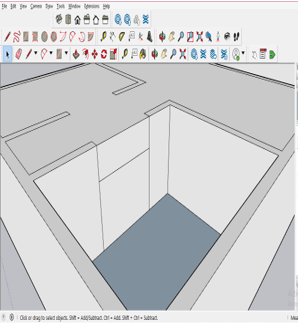

And you have to delete unwanted covering by selecting them one by one like this.


image 1

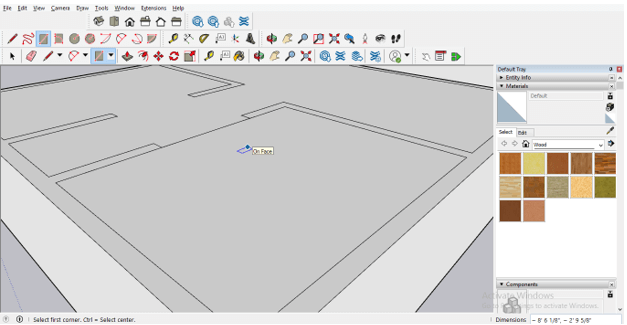

And there will be door structure like this but I think this way for creating door area is a little bit lengthy.

door area

So there is another easy way through which you can create a door as well as a window in your model. Just take the rectangle tool again and draw a door with your desired dimension of the door.

image 2

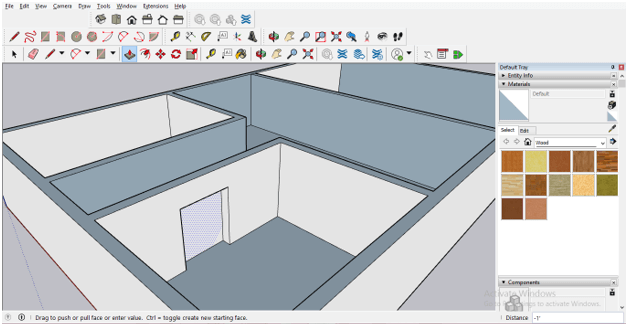

Now take the Push/Pull tool and Push the rectangle in a backward direction so that it will subtract this rectangle from the main model.

model

Or you can simply make double-click on this rectangle with Push/Pull tool and it will delete that area.

image 3

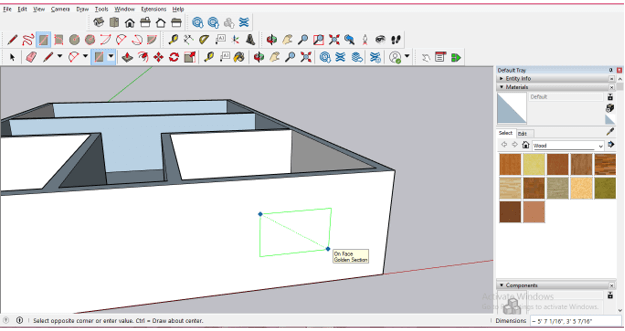

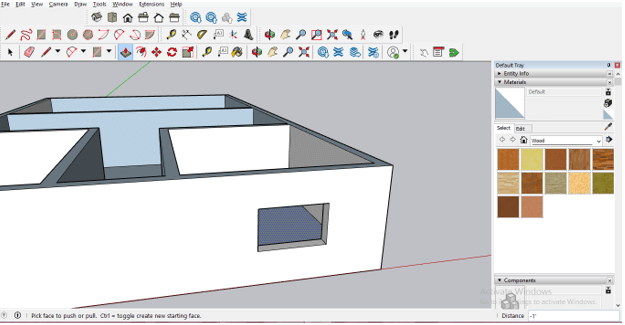

Same as the door you can also create a Window at your desired place on the wall. Create a rectangle of the same size as your window.

image 4

And subtract it as we did for creating the door.

image 5

Now Take the Line tool from the tool panel.

tool panel 1

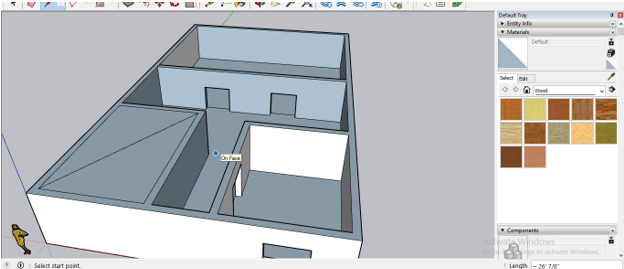

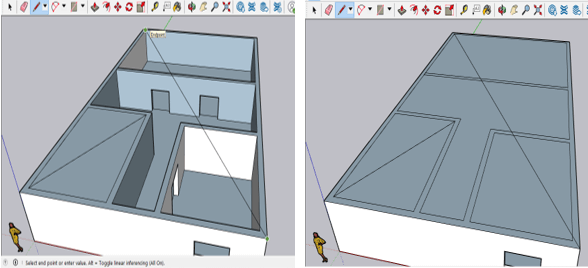

And draw a diagonal line like this to make the roof of this house. You can cover each section one by one by drawing a diagonal lines on them separately.

diagonal line

Or cover the whole model by drawing one diagonal line from one corner to other corners of a model like this.

diagonal line 1

This way you can create a 3D model by using different tools of this software.

Conclusion

These were basic information about how you can start creating a 3D model in SketchUp from a very basic level. If you understand all the steps properly which I told you here for creating a 3D model then you can easily have a handful of skills for creating a 3D model in this software. I will also suggest you try it on your 2D drawing so that you can learn it deeply.

Recommended Articles

This is a guide to SketchUp 3D Models. Here we discuss the Introduction, How to create and use 3d model in SketchUp?. You may also have a look at the following articles to learn more –

  1. SketchUp Alternative
  2. SketchUp Rotate
  3. SketchUp vs Fusion 360
  4. SketchUp AutoCAD
